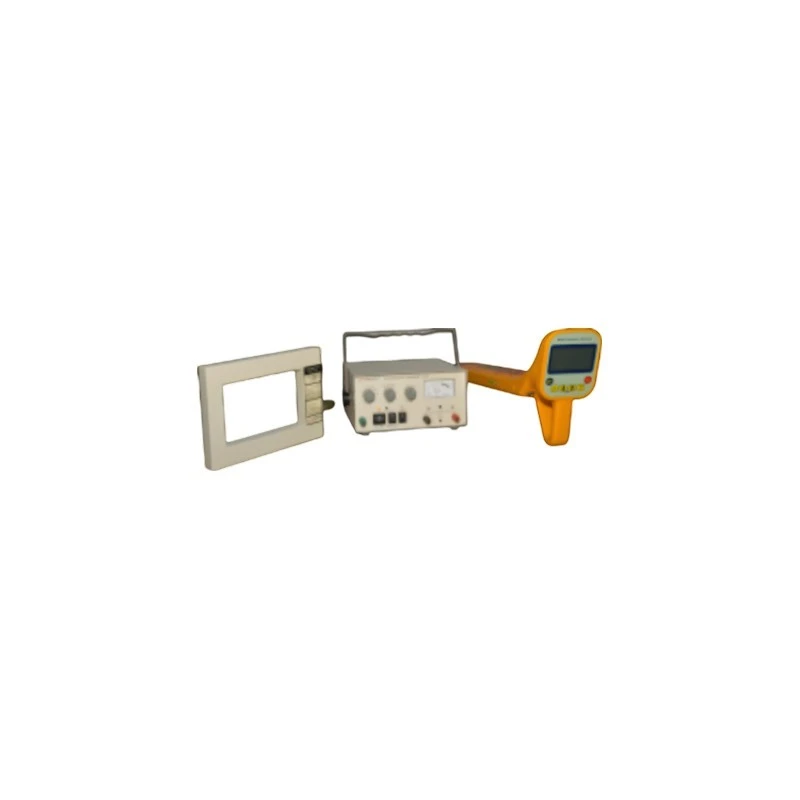

Motwane Cable Route Tracer CRT 10D image-1

Free Delivery in India | Lowest Global Shipping Charges

Motwane CRT 10D Cable Route Tracer

Name: Motwane CRT 10D Cable Route Tracer
Brand: Motwane
SKU: ADDYK
Price: 69.5 USD
Availability: InStock



SKU ADDYK Category Cable Tracker Brand Motwane Condition New

Specifications

Country of Origin	India
Power Source	Standard No.5 1.2V rechargeable battery 6 / charge and discharge 500times.
Brand	Motwane
Power Supply	230V AC ± 10% / 50Hz Single phase / or external 12 Volt DC or Internal rechargeable accumulator
Storage Temperature	-5 Deg C ~ 60 Deg C
Working Temperature	-0°C ~ 50°C
Model	CRT 10D
Volume	690 x 110 x 230mm
Output Power	1 / 2 / 5 and 10 Watts selectable
Operating Time	Internal accumulator 1.5Hrs on 10 Watts Mains and Ext DC power supply no time limit
Indication	Analog meter indication to indicate of transmitted power and charge condition of internal battery ON & Battery Charging Indication
Output Frequency	480Hz / 1450Hz & 9820Hz selectable
Detection length	When directly connected to the cable / the maximum length is 10KM. When coupling cables / one coupling can measure
Display Interface	Large-screen / graphic display / with backlight
Detection Accuracy	5% of buried depth
Impedance Matching	From 0.5 to 1000 Ohms selectable
Current measurement	Direct reading current
Weight Receiver	1.8 Kg Approx
Weight Gentrator	5.45 kg Approx
Stand by time	More than 12hours / power prompt.
Over heating and over current	automatic protection.
Audio Frequency Receiver AFRD10 Receiving frequency	Receiving three kinds of sinusoidal AC signals of different frequencies / namely low frequency / intermediate frequency / high frequency / 50HZ/60Hz.
Receiving mode	Crest method (horizontal coil) / trough method (vertical coil) / external device method (Aframe- /coupling clamp).
Signal interface	Three interfaces of digital size / grating length / and voice prompt simultaneously indicate the strength of the signal
Gain control	Manual adjustment / dynamic range 000-100db.

Key Features

Route tracing of buried underground any metallic cables up to 10 km max length.
Depth measurement of buried cables up to 5m.
Portable and light weight, easy to use, powered by rechargeable battery, one person can operate, tests can be completed at once.
Digital design, software control, stable and reliable performance.
With back light function, adapt to night operation.
Large-screen LCD interface, easy to understand at a glance, easy to learn and understand.
The measured information is provided to the operator in three ways: digital size, grating length, and voice priority, making the test process easy and free.
The transmitter has constant power output and automatic matching to ensure that the machine is working in the best condition. The built-in ohmmeter function can automatically measure the loop impedance of the cable to the ground and between phases, which can assist in judging the nature of the fault.

Product Description

Cable Route Tracer CRT 10D is an essential item in the kit for fault location of underground power and telecom cable network. It is a powerful audio frequency system that can be effectively used for various unique functions such as route tracing of any metallic cable, depth measurement, live loaded cable tracing and ground survey of underground utilities. The system is capable to trace route of underground cable maximum 10km, and find out the depth up to 5 meter, This method is found to give more accurate results in presence of other metallic utilities in close proximity. The system can be used to trace route of loaded live cable with the help of receiver unit and search coil in passive mode. It is also use to carry out ground survey and metallic pipe route tracing in inductive mode effectively.

Application

It is used for route tracing of any underground metallic cable in power transmission, distribution and signal cable networks or cable fault location service provider.

Standard Accessories

Transmitter Tongs CTS120
Transmitter Coil TC 8
Connecting Cords
Operating Manual

Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum detection length is 10 km when directly connected to the cable.

It is powered by a standard No.5 1.2V rechargeable battery, which can be charged and discharged 500 times.

The working temperature range is from -0°C to 50°C, while the storage temperature range is from -5°C to 60°C.

It features a large-screen graphic display with backlight for easy visibility, even in low light conditions.

Included accessories are the Transmitter Tongs CTS120, Transmitter Coil TC 8, Connecting Cords, and an Operating Manual.

The receiver weighs approximately 1.8 kg, while the generator weighs about 5.45 kg.

The output power is selectable at 1, 2, 5, and 10 Watts.

It has an analog meter indication to show the transmitted power and the charge condition of the internal battery, along with ON and Battery Charging Indication.

Yes, it can trace the route of loaded live cables using the receiver unit and search coil in passive mode.
