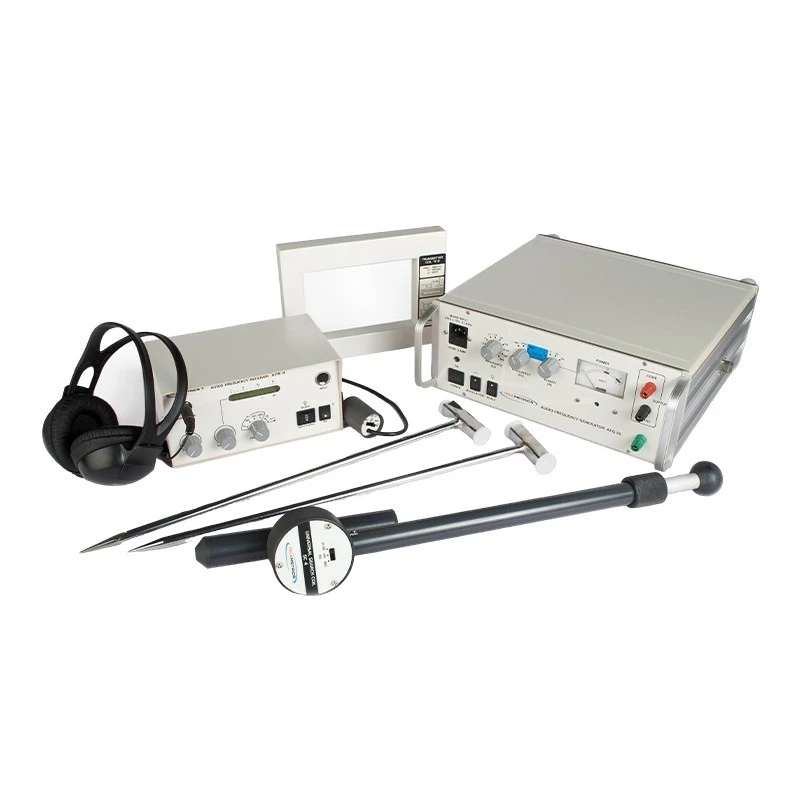

Motwane CRT 50 Cable Route Tracer
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Model | CRT 50 |
| Receiving Frequency (Audio Frequency Receiver AFR 4) | Passive - 50 Hz Active 480Hz / 1450Hz / 9820Hz selectable |
| Gain (Audio Frequency Receiver AFR 4) | More than 90 db |
| Indication (Audio Frequency Receiver AFR 4) | LCD Bar-graph display with scale illumination for signal strength & Battery status indication |
| Power Supply (Audio Frequency Receiver AFR 4) | 8 x 1. 5 V AA size alkaline batteries |
| Operating Time (Audio Frequency Receiver AFR 4) | 8 to 10 hrs without scale illumination |
| Storage Temperature (Audio Frequency Receiver AFR 4) | -5 deg C ~ 60 deg C |
| Working Temperature (Audio Frequency Receiver AFR 4) | 0 deg C ~ 55 deg c |
| Dimensions (Audio Frequency Receiver AFR 4) | 240(L) x 110(H) x 155(D) mm |
| Weight (Audio Frequency Receiver AFR 4) | 1. 35 kg Approx |
| Receiving Freq. (Universal Search Coil SC 4) | 50/480 Hz / 1450 Hz / 9820 Hz selectable |
| Axis of Coil (Universal Search Coil SC 4) | Can be swivelled 45/90 Deg |
| Dimensions (Universal Search Coil SC 4) | Extension of Coil Telescope and Adjustable 470(H) x 80(W) x 207(D) mm |
| Weight (Universal Search Coil SC 4) | 0. 85 kg Approx |
| Output Power (Audio Frequency Generator AFG 50) | 5 / 10 / 25 and 50 Watts selectable |
| Output Frequency (Audio Frequency Generator AFG 50) | 480Hz / 1450Hz & 9820Hz selectable |
| Impedance Matching (Audio Frequency Generator AFG 50) | From 0.5 to 1000 Ohms selectable |
| Indication (Audio Frequency Generator AFG 50) | Analog meter indication to indicate transmitted power / ON Indication |
| Power Supply (Audio Frequency Generator AFG 50) | 230V AC ±10% / 50 Hz Single phase |
| Operating Time (Audio Frequency Generator AFG 50) | Mains supply no time limit |
| Storage Temperature (Audio Frequency Generator AFG 50) | 5 Deg C ~ 60 Deg C |
| Working Temperature (Audio Frequency Generator AFG 50) | 0 Deg C ~ 55 Deg C |
| Dimensions (Audio Frequency Generator AFG 50) | 343(L) x 132(H) x 305(D) mm |
| Weight (Audio Frequency Generator AFG 50) | 9. 5 kg Approx |
Key Features
- Route tracing of underground any metallic cables up to 15 km max length.
- Depth Measurement up to 5M.
- Ground survey of underground metallic utilities.
- Pin-Pointing of contact nature faults.
- Identification of cable from bunch of cables in telecom cable network.
- Output Power 5, 10, 25 & 50Watt selectable.
- Output Frequency 480, 1450, 9820Hz selectable.
- Power supply 230V AC + 10 %, 50 Hz Single phase, or external 12 Volt DC or Internal rechargeable accumulator.
Product Description
Cable Route Tracer CRT50 is an essential item in the kit for fault location of underground power and telecom cable network.
Application
It is used for route tracing of any underground metallic cable in communication, power transmission, distribution and signal cable networks or cable fault location service provider. It is also use to identification of wanted cable from bunch of cables in communication network.
Standard Accessories
- Transmitter Coil TC 8
- Cable Identification Probe CIP 3
- Headphone
- Earth Spikes
- Output connecting cables
- 5 pin connecting cable
- Mains cord
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
