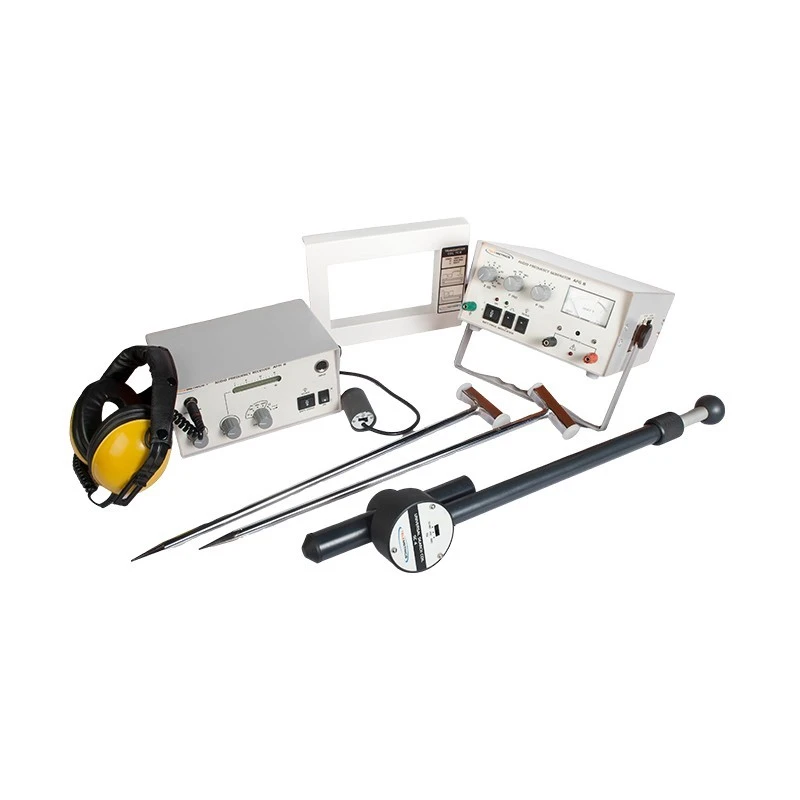

Motwane CRT 8 Cable Route Tracer
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Model | CRT 8 |
| Output Power (Audio Frequency Generator AFG 8) | 1 / 2 / 4 / and 8 Watts selectable |
| Output Frequency (Audio Frequency Generator AFG 8) | 480Hz / 1450Hz & 9820Hz selectable |
| Impedance Matching (Audio Frequency Generator AFG 8) | From 0.5 to 1000 Ohms selectable |
| Indication (Audio Frequency Generator AFG 8) | Analog meter indication to indicate transmitted power and charge condition of internal battery / ON & Battery Charging Indication |
| Power Supply (Audio Frequency Generator AFG 8) | 230V AC ±10% / 50 Hz Single phase / or external 12 Volt DC or Internal rechargeable accumulator |
| Operating Time (Audio Frequency Generator AFG 8) | Internal accumulator 1.5Hrs on 8Watts / Mains and Ext DC power supply no time limit |
| Storage Temperature (Audio Frequency Generator AFG 8) | 5 Deg C ~ 60 Deg C |
| Working Temperature (Audio Frequency Generator AFG 8) | 0 Deg C - 55 Deg C |
| Dimensions (Audio Frequency Generator AFG 8) | 250(L) x 120(H) x 255(D) mm |
| Weight (Audio Frequency Generator AFG 8) | 5.12 kg Approx |
| Receiving Frequency (Audio Frequency Receiver AFR 4) | Passive *50 Hz / Active 480Hz / 1450Hz / *9820Hz selectable |
| Gain (Audio Frequency Receiver AFR 4) | More than 90 db |
| Indication (Audio Frequency Receiver AFR 4) | LCD Bar-graph display with scale illumination for signal strength & Battery status indication |
| Power Supply (Audio Frequency Receiver AFR 4) | 8 x 1.5 V AA size alkaline batteries |
| Operating Time (Audio Frequency Receiver AFR 4) | 8 to 10 hrs without scale illumination |
| Storage Temperature (Audio Frequency Receiver AFR 4) | -5 deg C-60 deg C |
| Working Temperature (Audio Frequency Receiver AFR 4) | 0 deg C ~ 55 deg c |
| Dimensions (Audio Frequency Receiver AFR 4) | 240(L) x 110(H) x 155(D) mm |
| Weight (Audio Frequency Receiver AFR 4) | 1.35 kg Approx |
| Receiving Freq. (Universal Search Coil SC 4) | 50/480 Hz / 1450 Hz / 9820 Hz selectable |
| Axis of Coil (Universal Search Coil SC 4) | Can be swivelled 45/90 Deg |
| Dimensions (Universal Search Coil SC 4) | Extension of Coil Telescope and Adjustable 470(H) x 80(W) x 207(D) mm |
| Weight (Universal Search Coil SC 4) | 0.85 kg Approx |
Key Features
- Route tracing of underground any metallic cables up to 10 km max length.
- Depth Measurement up to 5M.
- Ground survey of underground metallic utilities.
- Identification of cable from bunch of cables in telecom cable network.
- Output Power 1, 2, 4 & 8Watt selectable.
- Output Frequency 480, 1450, 9820Hz selectable.
- Power supply 230V AC + 10 %, 50 Hz Single phase, or external 12 Volt DC or Internal rechargeable accumulator.
Product Description
The Cable Route Tracer CRT8 is an essential item in the kit for fault location of underground power and telecom cable networks. It is a powerful audio frequency system that can be effectively used for various unique functions such as route tracing of any metallic cable, depth measurement, live loaded cable tracing and ground survey of underground utilities.
Application
It is used for route tracing of any underground metallic cable in communication, power transmission, distribution and signal cable networks or cable fault location service provider.
It is also use to identification of wanted cable from bunch of cables in communication network.
Standard Accessories
- Transmitter Coil TC 8
- Cable Identification Probe CIP 3
- Headphone
- Output connecting cables
- 5 pin connecting cable
- Mains cord
- Earth Spikes
- Ext. DC supplies cord
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
