Motwane MTAND Automatic Tan Delta and Capacitance Bridge
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 10 pF to 1.1 µF |
| Power Factor Range | 0 to 1 |
| Brand | Motwane |
| Model | MTAND |
| Power Input | 230 Volts ± 10% / 50 Hz / Single phase |
| Power Required | 230 V AC ± 10% / 1 phase / 50 Hz |
| Rated current | 100mA Continuous / 200mA for 2 minutes / 1000mA @ 2.5kV |
| Input Frequency | 50 Hz ± 5% |
| Test Voltage (V) | 0 to 12 kV |
| Operating Modes | 7 modes / software selectable |
| Test Frequency | Line Frequency / 45 Hz to 70 Hz (Optional Generated) |
| Power Output | 0 to 12 kV / 100 mA Continuous / 200 mA Short term / 0 to 2.5 kV (Tap Optional) / 1000 mA |
| Current measurement range | 0 to 100 mA Continuous / 200 mA Short term @ 12 kV / 1000 mA @ 2.5 kV (Tap Optional) |
| Voltage Measurement Range | 100 V to 12 kV / 2.5 kV tap |
| Voltage Measurement Accuracy | ± 1% of reading + 1 digit |
| Automatic Balancing | Windows-based software controlled |
| Voltage Setting | Automatic and software controlled |
| Standard Capacitor | 100pF / 12KV built-in |
| Capacitance Resolution | 0.01 pF |
| Capacitance Accuracy | ± 0.5% of reading + 1 pF (UST Mode) |
| Tan Delta Range | 0% to 100% |
| Tan Delta Resolution | 0.01% (0.0001) |
| Tan Delta Accuracy | ± 0.5% of reading + 0.0002 |
| Voltage Measurement Resolution | 1.0 V |
| Current Measurement Resolution | 1 mA |
| Current Measurement Accuracy | ± 1% + 1 digit |
| Power Factor Resolution | 0.01% (0.0001) |
| Power Factor Accuracy | ± 0.5% of reading + 0.0002 |
Key Features
- Automatic Measurement of Capacitance & Tan as per the d test plan by auto-balancing, No need of manual balancing.
- Automatic voltage setting through software.
- Indication of Leakage current.
- Data logging with graph of voltage vs Tan to know the d tand gradient & data analysis for comparison with old results / manufacturer’s data.
- As per IEC Temperature correction for Tan @ 20 C
- Executes all the test modes/voltage automatically once fed.
- ON site printout.
- Automatic interference suppression suitable for extraneous conditions in 400KV switchyard under heavy induction.
- More than 10000 Results Data-storage.
- Built in Temperature and Humidity sensor.
Product Description

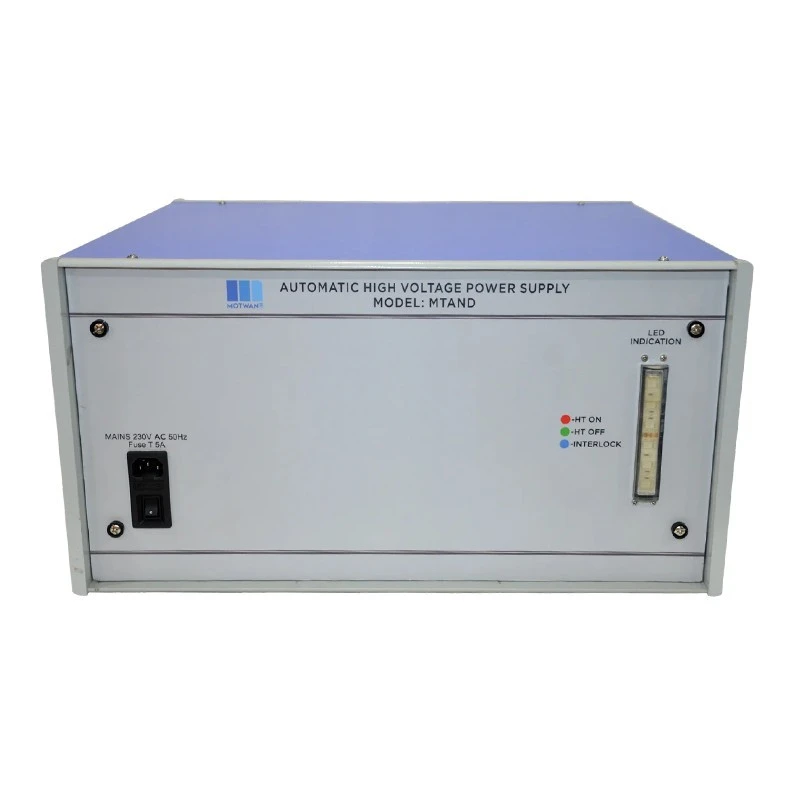

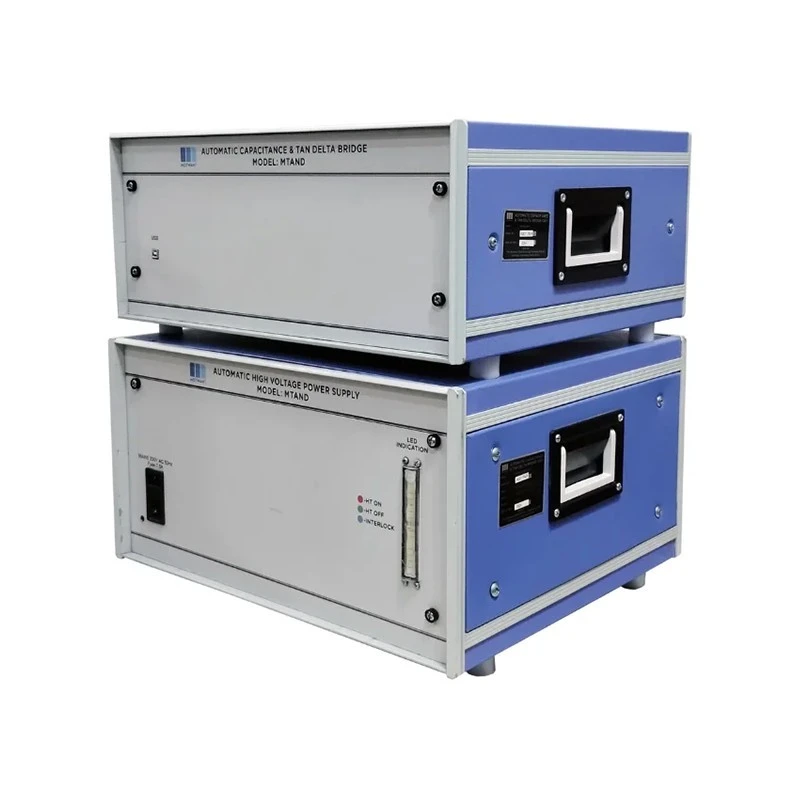

This set includes Bridge Model: MTAND & HV Supply model: HLS12A, Laptop based & necessary cables & very flexible, user friendly Visual C++ windows based Software. The use of Laptop & Windows based software makes the system more flexible easy to handle & accurate. Data can be stored, Retrieved and analyzed at site. Temp correction for the tan delta of object is automatically done as per IEC. Colored Screen analysis & graphical plotting of Tan Vs Voltage, Tan d Vs Time Complied IEC 61010, ASTM D999, EMI/EMC-EN-61326, IEC61000-4-3, IEC 61000-4-4,IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11. Suitable for measuring C & Tan for generators, transformers, bushings, circuit breakers, cables, motors at various test voltages upto 12KV.
Available on EnvMart, these Resistance Meters are designed for precise measurement of electrical resistance in circuits and components. Motwane Resistance Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
