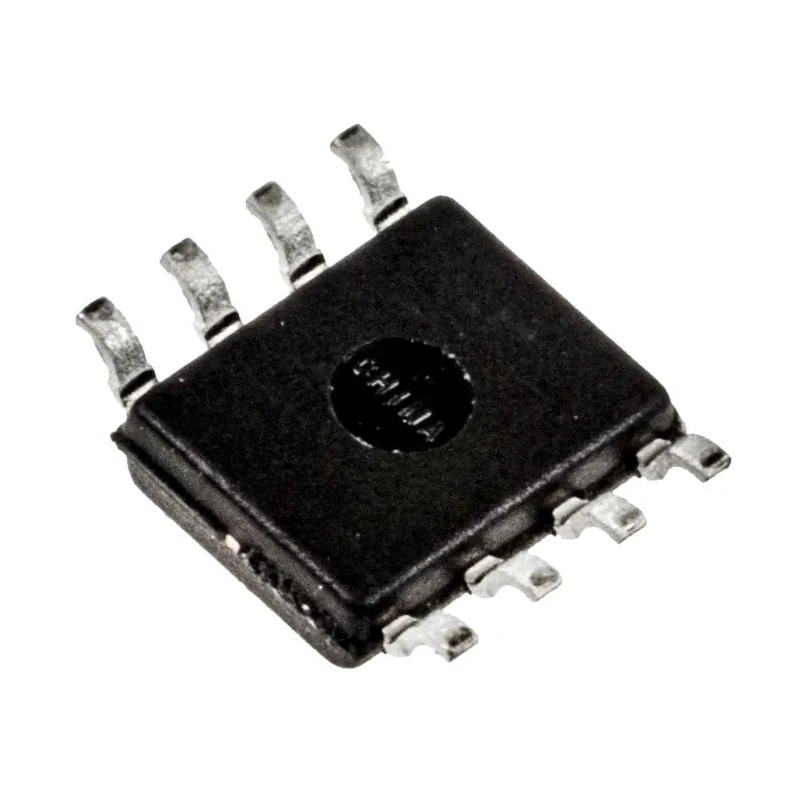

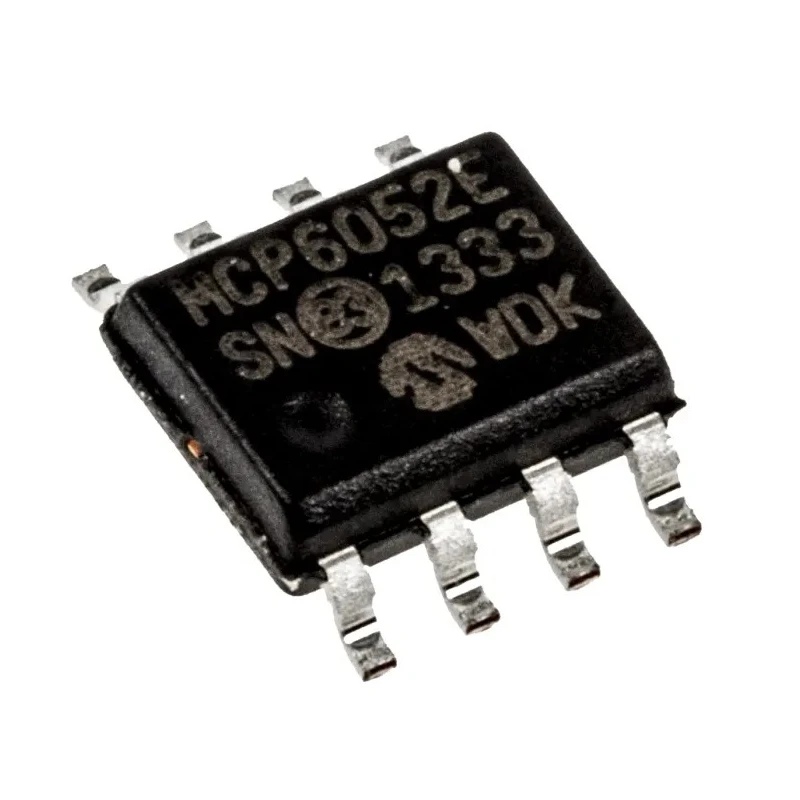

Microchip Operational Amplifier 380 kHz 8-Pin SOIC 6V MCP6052-E/SN

Microchip MCP6052-E/SN is a high-performance operational amplifier designed for precision electronic applications requiring a gain bandwidth product of 380 kHz and low power consumption. This dual-channel device comes in an 8-pin SOIC surface-mount package measuring 4.9 mm by 3.9 mm with a height of 1.25 mm.

Operating within a supply voltage range of 3V to 6V, the amplifier exhibits a low input bias current of just 100 pA and input offset current as low as 1 pA, making it ideal for sensitive analog signal amplification in measurement, control, and sensor interfacing circuits. The device features a slew rate of 0.15 V/μs and outputs current up to 26 mA, suitable for driving moderate loads in industrial and automotive environments.

Designed to meet the automotive standard AEC-Q100 and RoHS compliance, the MCP6052-E/SN is robust for demanding operational conditions ranging from -40°C to 125°C. Its low input offset voltage of 150 μV ensures high accuracy and signal integrity.

This operational amplifier is commonly used in industrial automation, automotive electronics, instrumentation, communication, and consumer electronic devices where precision and reliability are critical. The small SOIC package optimizes PCB space while facilitating automated assembly.

Microchip provides comprehensive technical documentation, including datasheets and design files, facilitating easy integration into various designs. Applications benefiting from this component include sensor interface circuits, active filters, audio amplifiers, and signal conditioning modules.

This operational amplifier supports a supply voltage range from 3V up to 6V. It features a low input bias current of 100 pA for precision analog signal processing. The device operates over a wide temperature range of -40°C to 125°C meeting automotive-grade standards.

With a slew rate of 0.15 V/μs and an output current of 26 mA, it is suitable for general-purpose amplifier tasks. The compact SOIC package dimensions of 4.9 mm in length, 3.9 mm in width, and 1.25 mm height enable efficient PCB layout.

Input offset voltage is tightly controlled at 150 μV to minimize signal distortion. The product complies with RoHS and automotive standard AEC-Q100, ensuring reliability in harsh environments. Its dual channel design provides flexibility for diverse circuit configurations.
