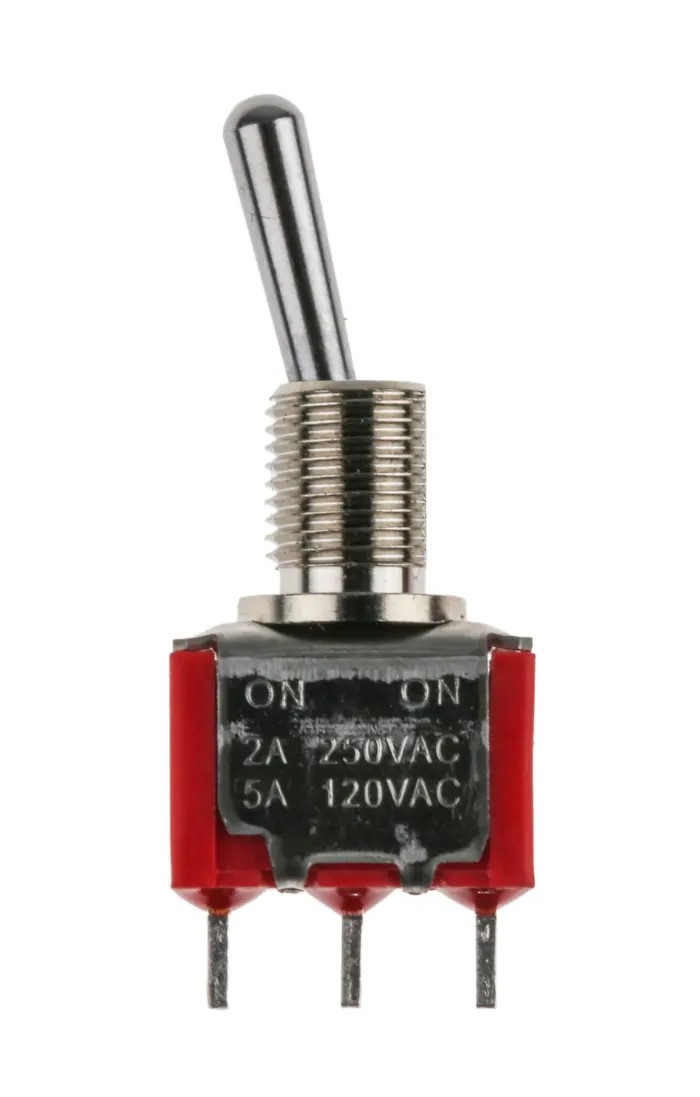

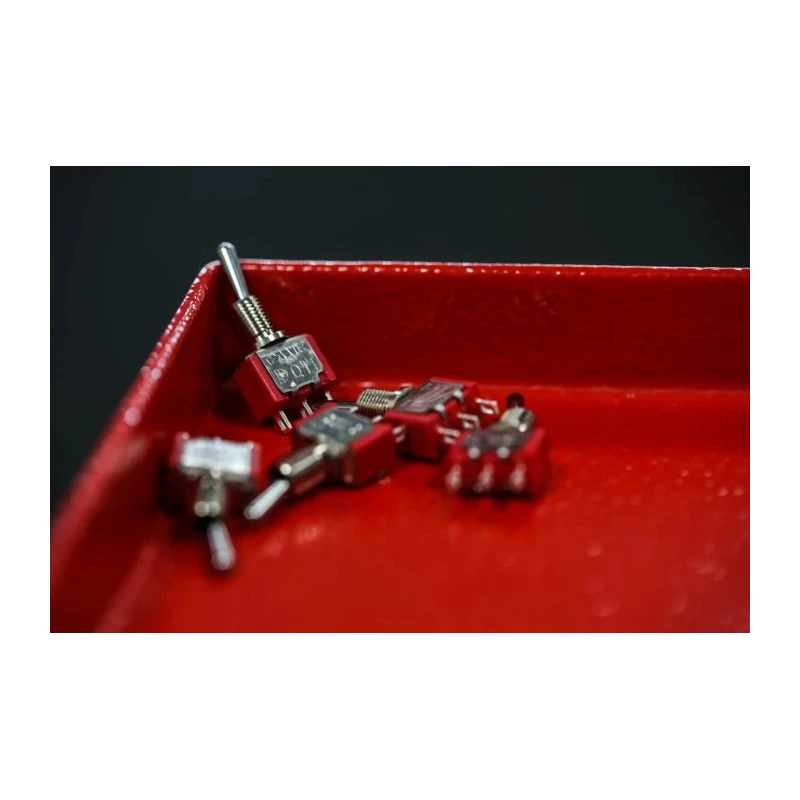

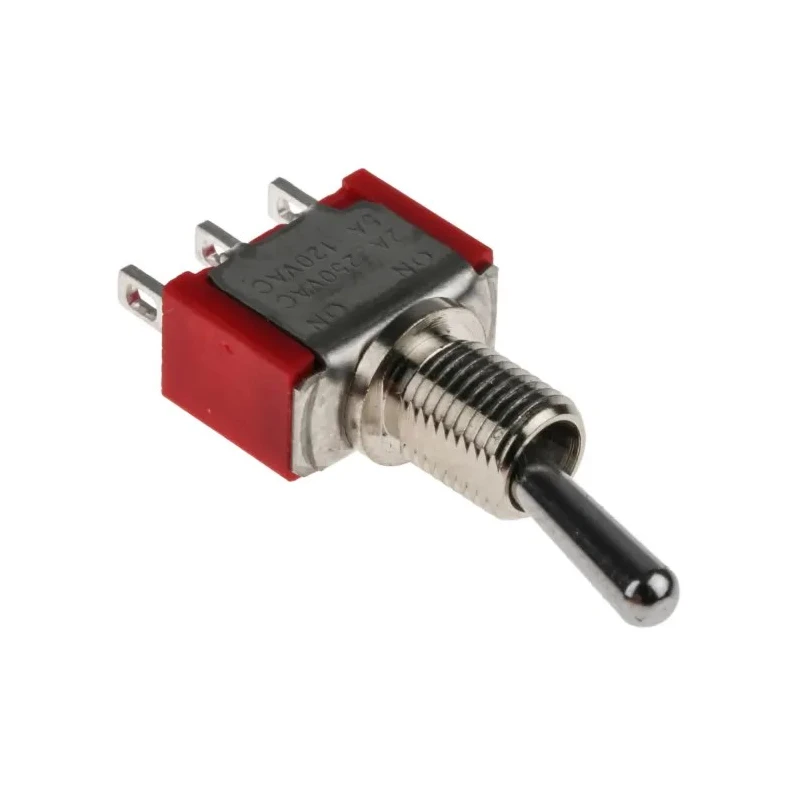

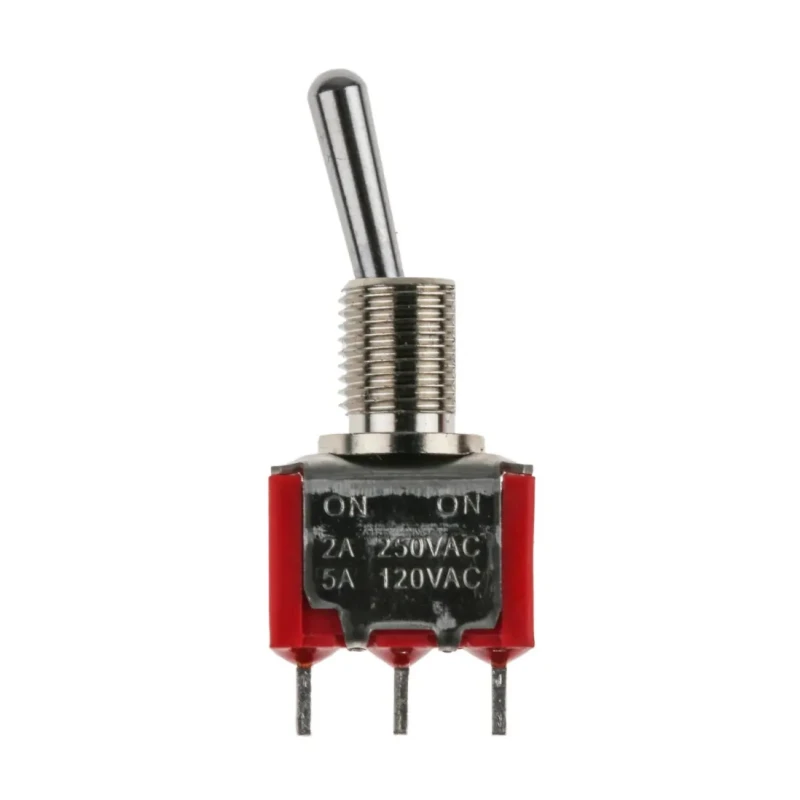

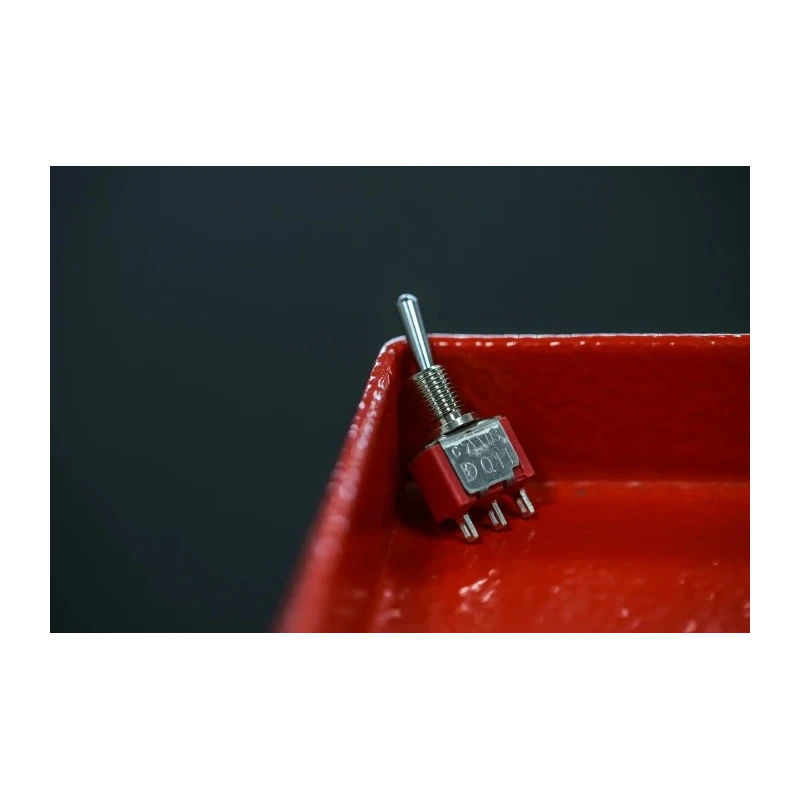

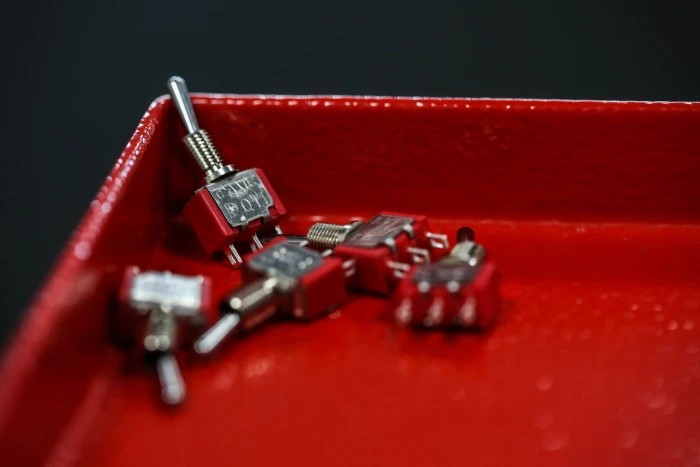

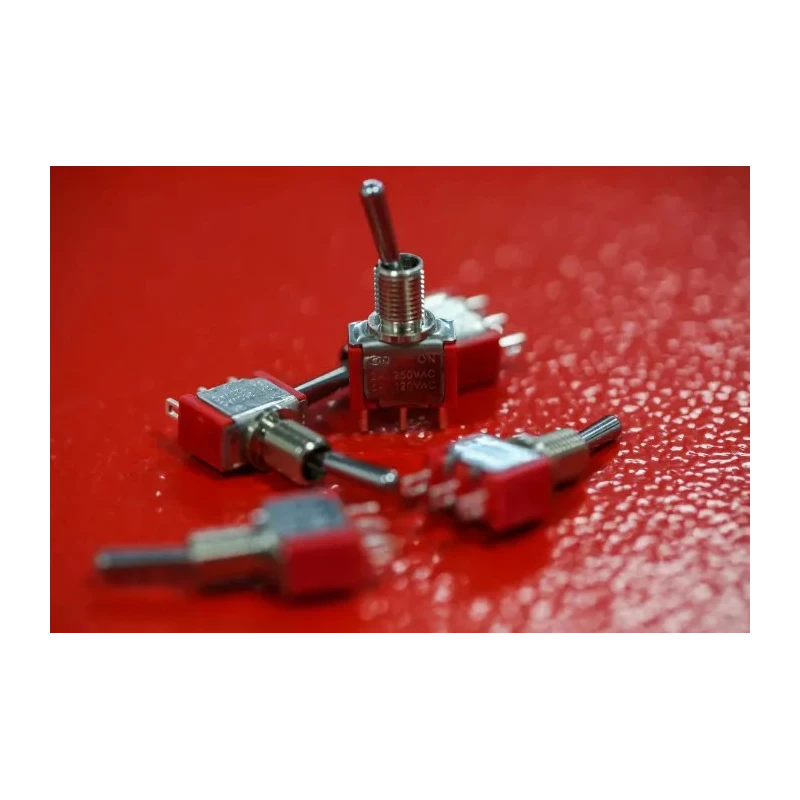

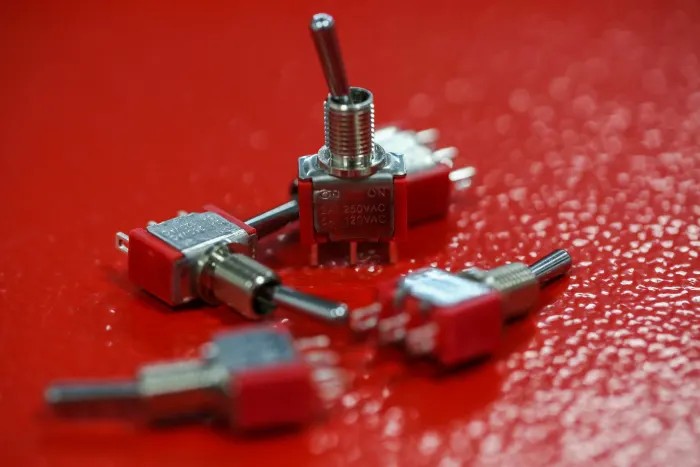

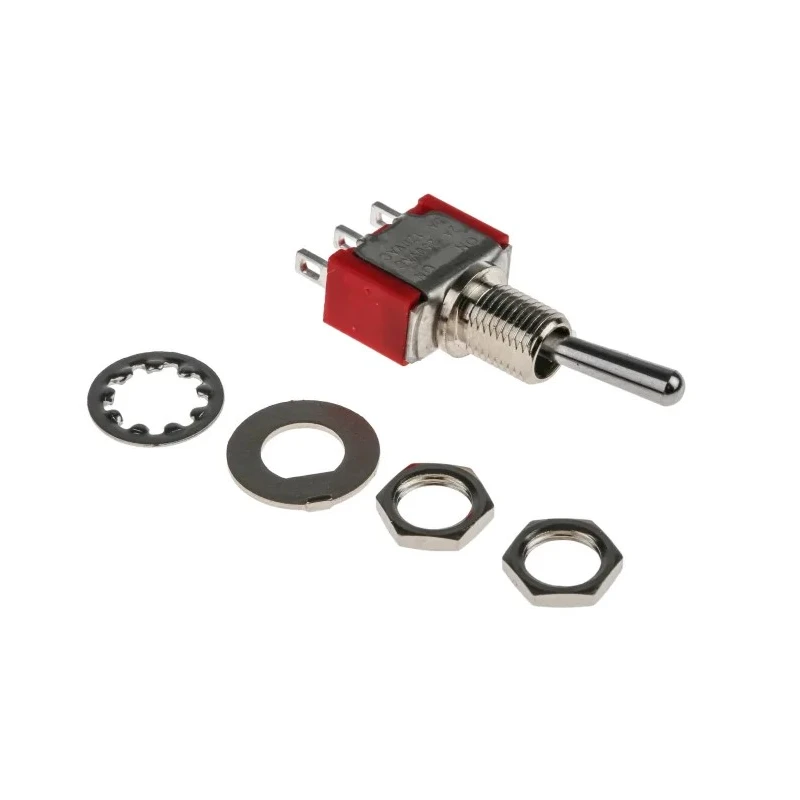

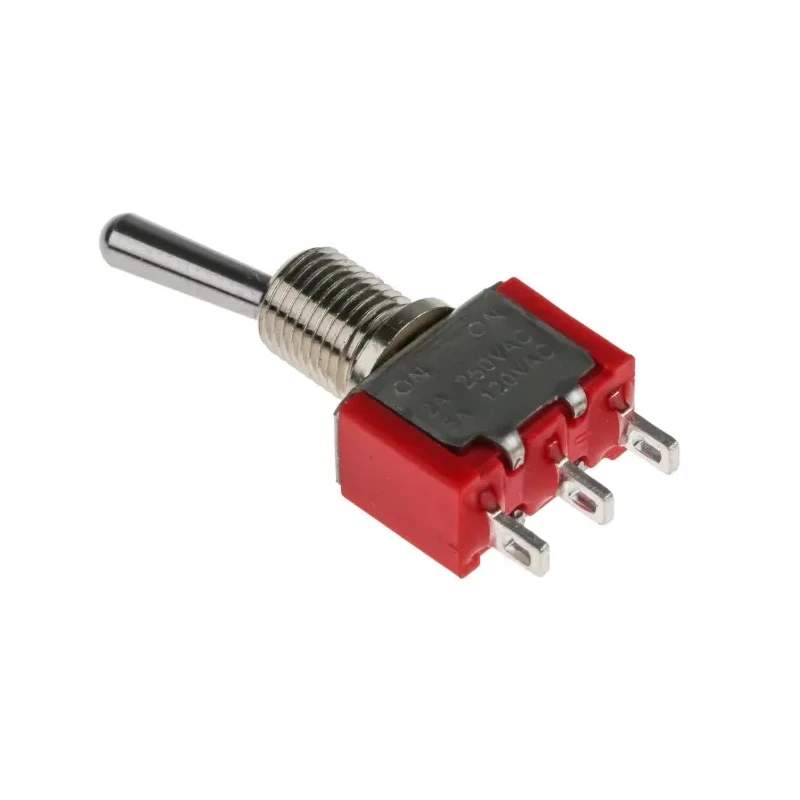

NEUTRAL Toggle Switch, Panel Mount, On-On SPDT, Solder Terminal, 28 V DC, 125 V AC 448-0747

RS PRO 448-0747 Toggle Switch is a high-quality SPDT latching switch designed for panel mounting in electrical and automation systems. It operates on an On-On mechanism, allowing the toggle to latch securely in either of the two ON positions, making it ideal for moderate-duty commercial applications.

The switch features silver-plated brass movable contacts and a chrome plated brass actuator that measures 10.41 mm in length. The device is built with a stainless steel housing and a diallyl phthalate case, offering excellent durability and resistance to harsh environments. It is equipped with solder-type terminals, ensuring robust and reliable electrical connections on printed circuit boards or panel mounts.

This toggle switch is rated for a contact current of 5 A at both 28 V DC and 125 V AC, and can function reliably within an operating temperature range of -30°C to +85°C. It has a panel cutout size of 6.35 mm, facilitating easy installation. Its mechanical life is rated for 50,000 cycles, reflecting its endurance in demanding applications.

RS PRO 448-0747 complies with CSA, CE, UL, and RoHS standards, assuring safety, quality, and environmental responsibility. This switch is UL recognized in Canada and the United States, supporting its global application in industrial, commercial, and manufacturing environments.

The toggle switch offers a latching On-On operation for dual-position control. Features silver-plated brass contacts ensuring reliable conductivity. Equipped with a chrome plated brass actuator of 10.41 mm length. Designed for panel mounting with a cutout size of 6.35 mm.

Operates effectively in temperature ranges from -30°C to +85°C. Supports contact current ratings of 5 A at both 28 V DC and 125 V AC. The housing is made from stainless steel with a diallyl phthalate case. Switch terminals are solder type for secure connection.

Rated mechanical life of 50,000 cycles for durability. Compliant with CSA, CE, UL, and RoHS standards.

This Toggle Switch is suitable for use in industrial control panels, automation systems, HVAC controls, manufacturing equipment, and other electrical circuits where reliable on-off switching is required. Its robust construction and compliance with global safety standards ensure dependable operation in demanding environments.
