Abracon 10MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-10.000MHZ-LC-T

Free Delivery in India | Lowest Global Shipping Charges

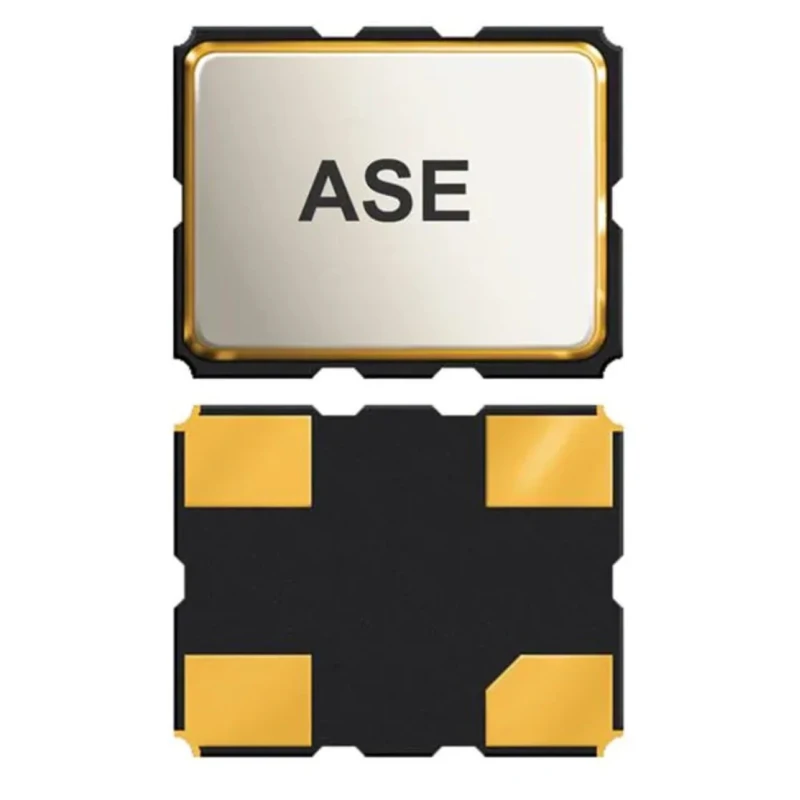

Abracon 10MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-10.000MHZ-LC-T

Name: Abracon 10MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-10.000MHZ-LC-T
Brand: Abracon
SKU: 424236
Price: 1.43 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-10.000MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	10MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	Crystal Oscillator
Output Level	CMOS

Key Features

Provides precise 10MHz output frequency suitable for various electronic applications.
Ensures frequency stability within ±50 parts per million (ppm) for reliable operation.
Features low-height 1.2mm max for compact surface mount designs.
Operates over a temperature range from -40°C to 85°C, suitable for industrial use.
Supplied in tape & reel packaging optimized for automated assembly.
CMOS output level offering compatibility with modern digital circuits.
Minimum and maximum supply voltage ratings of 3.14V and 3.47V respectively ensure stable power operation.
Built with 4 pins for secure surface mounting on printed circuit boards.

Product Description

The Abracon ASE-10.000MHZ-LC-T is a precision 10MHz crystal oscillator featuring ±50 ppm frequency stability and CMOS output suitable for demanding electronic applications. Packaged in a compact 4-pin surface mount design, it supports operation across a wide temperature range from -40°C to 85°C, ensuring stable performance in industrial, automotive, telecommunications, and computing environments.

This oscillator is designed for use in CCD clocks for video tape recorders, PDAs, wireless communication devices, and laptops. Its low profile of 1.2mm max height facilitates space-efficient circuit boards.

The oscillator operates from a supply voltage between 3.14V and 3.47V and delivers CMOS-level output signals compatible with modern digital logic devices. It also features low current consumption and low RMS jitter, ensuring energy efficiency and signal integrity.

Supplied in tape & reel packaging, the ASE-10.000MHZ-LC-T supports high-volume surface mount assembly processes and is RoHS and RoHS II compliant for environmental safety and regulatory adherence.

Precise 10MHz output frequency. ±50 ppm frequency stability. Compact 4-pin surface mount package. Wide operating temperature: -40°C to 85°C. Low profile with 1.2mm maximum height. Low RMS jitter and low current consumption.

RoHS compliant, environmentally friendly design. Suitable for industrial, automotive, telecommunications, and computing uses. Tape & reel packaging for automated assembly.

This Abracon Crystal Oscillator is ideal for industrial and commercial applications requiring stable, precise timing signals. Discover more Usable Electronics Components in the Abracon series on EnvMart for your next electronic design or manufacturing project.
