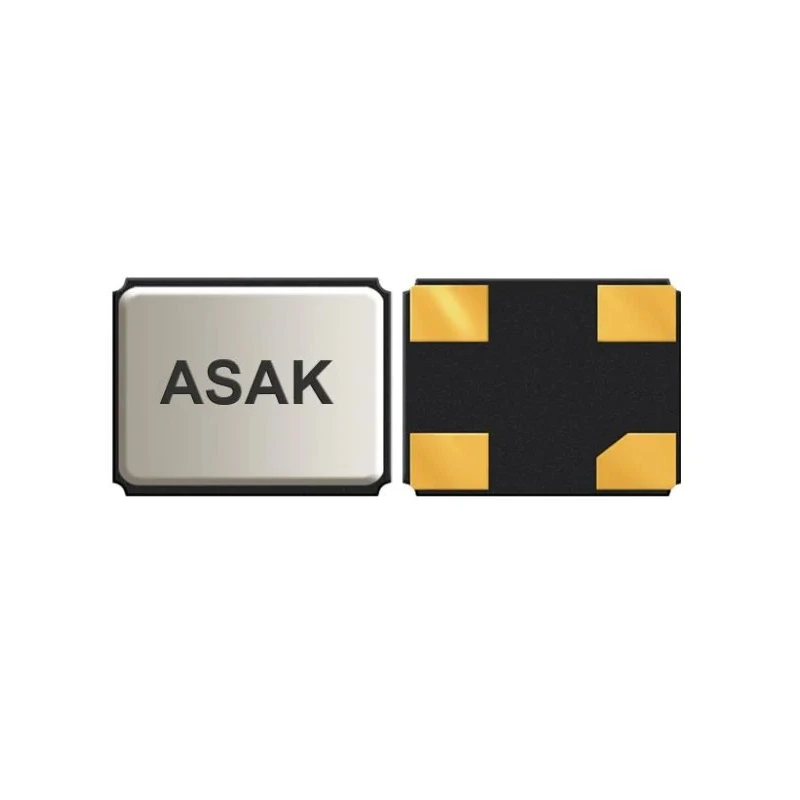

Abracon 32.768kHz Crystal Oscillator ±25ppm LVCMOS 4-Pin Surface Mount ASAK-32.768KHZ-LRS-T

Name: Abracon 32.768kHz Crystal Oscillator ±25ppm LVCMOS 4-Pin Surface Mount ASAK-32.768KHZ-LRS-T
Brand: Abracon
SKU: 424234
Price: 1.73 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2mm
Model	ASAK-32.768KHZ-LRS-T
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ASAK
Maximum Operating Temperature	85°C
Output Frequency	32.768kHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Crystal Oscillator
Output Level	LVCMOS

Key Features

Compact surface mount device with a 2.0 x 1.6 x 0.7 mm package for space-saving PCB designs.
Operating voltage range from 2.97V to 3.63V ensures wide compatibility.
Low current consumption of maximum 240 μA for energy-efficient applications.
Wide operating temperature range from -40°C to 85°C for reliable performance in harsh environments.
Seam-sealed ceramic package enhances reliability and long-term stability.
Compliant with RoHS / RoHS II environmental standards for safe manufacturing.
Suitable for use in laptops, digital cameras, wireless LAN devices, LCD displays, and PDAs.
Minimal footprint and 4-pin design facilitate easy integration into various electronics.

Product Description

The Abracon ASAK-32.768KHZ-LRS-T is a high-precision crystal oscillator designed for electronic applications requiring accurate timekeeping and frequency stability. Operating at a frequency of 32.768kHz with a frequency stability of ±25ppm, this LVCMOS output oscillator is housed in a small form factor surface mount package measuring 2.0 x 1.6 x 0.7 mm.

This oscillator operates within a voltage range of 2.97V to 3.63V, consuming a maximum current of 240 μA, making it ideal for low-power electronic devices. Its wide operating temperature range from -40°C to 85°C ensures dependable functionality across varying environmental conditions.

The robust seam-sealed ceramic package design provides high reliability and durability, suitable for industrial and commercial electronic equipment. This product is compliant with RoHS and RoHS II directives, supporting environmentally responsible manufacturing.

Typical applications include laptops, digital cameras, wireless LAN modules, LCD panels, and PDAs where compact size and reliable oscillation are critical. The 4-pin surface mount package minimizes PCB space usage while providing an easy footprint for assembly.

Compact 2.0 x 1.6 x 0.7 mm surface mount package for efficient PCB layout. Low current draw of up to 240 μA enables energy saving in portable devices. Frequency stability of ±25ppm for precise timing requirements. Wide operating temperature range supports diverse industrial and commercial environments.

Seam sealed ceramic package improves long-term device reliability. Meets RoHS and RoHS II compliance standards. Ideal for use in electronic consumer products and communication devices.

This Abracon Crystal Oscillator series offers engineers a reliable and compact timing solution for precision frequency control in demanding applications. For more related products, explore the Electronics Components category at EnvMart for advanced electronic parts and accessories.
