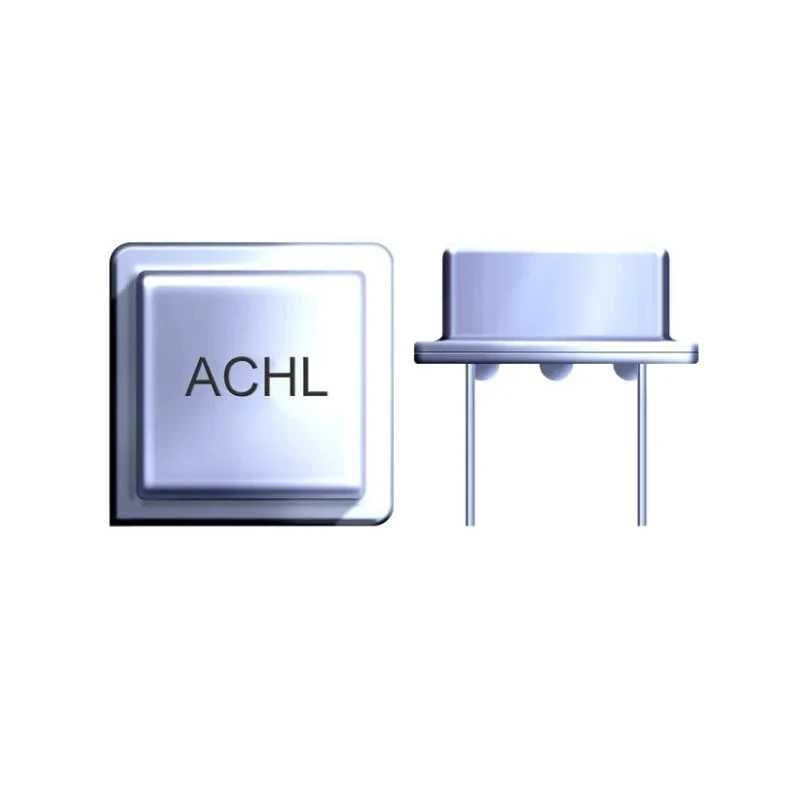

Abracon 27MHz Clock Oscillator Crystal Oscillator -100 to 100 ppm TTL HCMOS DIP-8 ACHL-27.000MHZ-EK

The Abracon ACHL-27.000MHZ-EK is a high-quality 27MHz clock oscillator crystal oscillator designed for precision clock signal generation in digital electronics. Featuring a frequency stability of -100 to 100 ppm, it assures reliable timing performance suitable for microprocessors, digital chips, and low power applications. The output stage is compatible with both TTL and HCMOS levels, supporting a wide range of digital circuit requirements.

This oscillator operates at a low voltage range with a minimum supply voltage of 2.97V and a maximum of 3.63V, making it ideal for modern low-power devices. Its operational temperature range from 0°C to 70°C allows use in various environmental conditions commonly encountered in industrial, laboratory, and consumer electronics settings.

Physically, the oscillator is housed in a DIP-8 package with dimensions of 13.2mm length and width and 5.5mm height, providing a compact form factor for PCB assembly. The device features a load capacitance of 15pF and is supplied in tubes containing 40 pieces for streamlined manufacturing processes.

Operating frequency of 27MHz suitable for precise timing applications. Frequency stability range from -100 to 100 ppm for consistent performance. TTL and HCMOS output levels compatible with various digital circuits. Low voltage operation support with minimum supply of 2.97V and maximum 3.63V.

Operating temperature range from 0°C to 70°C ensuring wide environmental tolerance. Compact DIP-8 package measuring 13.2mm by 13.2mm with a height of 5.5mm. Load capacitance of 15pF tailored for standard oscillator circuits.

Packaged in tubes containing 40 pieces for efficient handling and assembly. Compliant with ISO9001:2008 standards ensuring quality manufacturing processes.

This component is widely used in industrial electronic devices, laboratory instruments, HVAC control systems, communication equipment, and manufacturing automation where stable and accurate clock signals are critical. The product supports RoHS compliance, reflecting environmentally responsible manufacturing practices.
