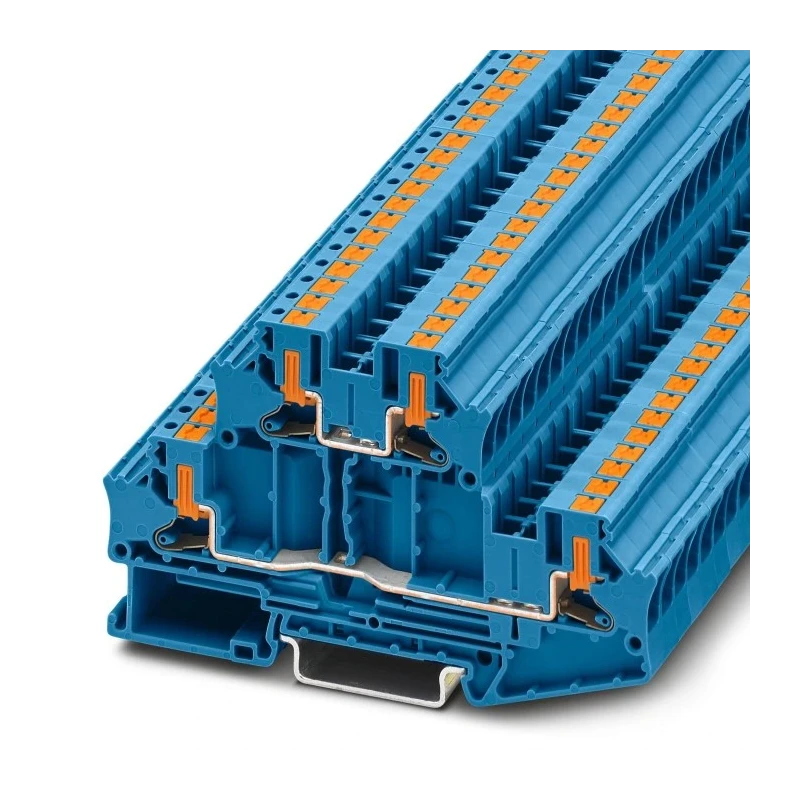

Phoenix Contact PTTBV Series Double Level Terminal Block Blue, 4mm² Cable CSA, 4 Positions, 2-Level, Push-in 1088738

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PTTBV Series Double Level Terminal Block Blue, 4mm² Cable CSA, 4 Positions, 2-Level, Push-in 1088738

Name: Phoenix Contact PTTBV Series Double Level Terminal Block Blue, 4mm² Cable CSA, 4 Positions, 2-Level, Push-in 1088738
Brand: PHOENIX CONTACT
SKU: 424180
Price: 5.79 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	800V
Brand	Phoenix Contact
Colour	Blue
Model	1088738
Series	PTTBV
Termination Type	Push-in
Maximum Operating Temperature	125°C
Number of Levels	2
Number of Positions	4
Minimum Operating Temperature	-60°C
Standards/Approvals	CSA, RoHS
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	10AWG
Cable CSA	4mm²
Terminal Block Current	28A

Key Features

Operates at a maximum voltage of 800 volts and current rating of 28 amperes.
Supports cable cross sectional area up to 4mm² with wire sizes from 24 AWG to 10 AWG.
Constructed with a blue insulating material and designed with two levels for compact wiring.
Wide operating temperature range from -60°C to 125°C for diverse environments.
Incorporates tool-free push-in termination technology for efficient installation.
Equipped with an additional test connection for convenient system testing.
Conforms to CSA and RoHS standards ensuring quality and compliance.
Suitable for industrial and electrical applications requiring DIN rail mount terminal blocks.

Product Description

Phoenix Contact 1088738 double level terminal block is a high quality DIN rail mounted connector from the PTTBV series. It is designed to provide secure, tool-free push-in electrical connections with an industrial-grade blue insulating body, supporting a wiring capacity of 4mm² cable cross section and wire sizes from 24 AWG to 10 AWG.

With 4 positions arranged in 2 offset levels, it allows clear wiring and easy access even in fully wired setups. The block operates at up to 800 volts and carries a rated current of 28 amperes, suitable for a wide range of electrical distribution and control system applications.

Operating across a temperature range from -60°C to 125°C, this terminal block is built for demanding industrial environments. The push-in termination technology enables rapid installation without the need for additional tools, while the integrated double function shaft provides an extra test connection point for simplified system maintenance and verification.

The product complies with CSA and RoHS certifications, ensuring safety and environmental standards are met. Manufactured in China, it is part of the trusted Phoenix Contact CLIPLINE complete system.

Push-in connection for ferrules or solid conductors. Double level design with offset rows for space efficiency. Additional test connection integrated in the double function shaft. Rated for 28A current at 800V voltage. Wide temperature range from -60°C to 125°C.

Conforms to CSA and RoHS standards. Suitable for use in industrial automation and electrical distribution. Blue insulating material ensures clear identification and insulation.

This double level terminal block is ideal for use in industrial manufacturing, electrical panels, automation systems, and control cabinets where reliable and safe wire termination is essential. It facilitates neat installation, easy maintenance, and high system uptime.

Explore more Phoenix Contact Terminal Blocks and accessories on EnvMart for comprehensive solutions to your electrical connector requirements.
