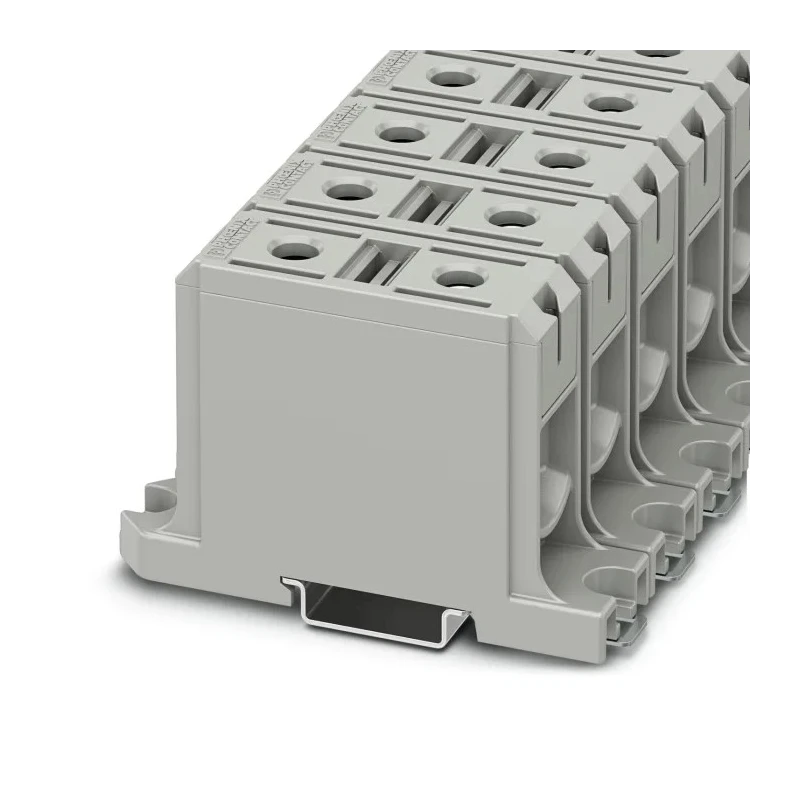

Phoenix Contact High Current Connector UBAL 95 Series Grey 16mm² 1-Level 2-Positions Screw Termination 1086475

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact High Current Connector UBAL 95 Series Grey 16mm² 1-Level 2-Positions Screw Termination 1086475

Name: Phoenix Contact High Current Connector UBAL 95 Series Grey 16mm² 1-Level 2-Positions Screw Termination 1086475
Brand: PHOENIX CONTACT
SKU: 424178
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Estonia
Voltage	1kV
Brand	Phoenix Contact
Colour	Grey
Model	1086475
Series	UBAL 95
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	1
Number of Positions	2
Minimum Operating Temperature	-60°C
Standards/Approvals	CSA, RoHS
Minimum Wire Size AWG	4AWG
Cable CSA	16mm²
Terminal Block Current	220A

Key Features

The connector supports 2 positions and 1-level configuration for flexible wiring.
Screw termination is suitable for multi-stranded aluminium and copper conductors.
Robust fiberglass-reinforced polyamide housing with V0 flammability rating.
Operates reliably within -60°C to 110°C temperature range.
Compliance with CSA and RoHS standards ensures safety and environmental adherence.
Maintenance-free pre-greased terminal points simplify aluminium conductor connection.
Rated for nominal current of 232A and voltage of 1000V.
Fused integration is not included, designed for specific electrical circuit configurations.

Product Description

Phoenix Contact 1086475 UBAL 95 Series High Current Connector is a robust grey terminal block designed for industrial and electronic applications where high current and reliable connection are essential. With a 1-level, 2-position screw termination, this connector accommodates 16mm² cable cross-section and can handle a nominal current of 232A under a voltage of up to 1000V.

The connector is tailored to securely connect multi-stranded aluminium and copper conductors, featuring maintenance-free terminal points that come pre-greased for simpler installation of aluminium wires. Its extremely durable housing is made with fiberglass-reinforced polyamide and carries a V0 flammability rating, providing high mechanical and thermal resistance.

Operating temperature range is wide, from -60°C to 110°C, enabling use in harsh industrial, electronic, and power distribution environments. The product meets international standards including CSA and RoHS, ensuring compliance with safety and environmental regulations.

This high current connector is ideal for use in industrial automation, manufacturing, power distribution, and control panel applications. Its screw termination type ensures a solid and reliable electrical connection, suitable for high-power circuits without the need for fuses.

The connector supports 2 positions and 1 level configuration for flexible wiring setups. Nominal cross section of 95 mm² supports heavy-duty cable requirements. Maximum load current is 232 A with nominal current at 232 A, suitable for high power applications.

Grey color housing facilitates easy identification in complex panel layouts. Designed and produced in Estonia, confirming high manufacturing standards. Applicable for industrial, power, and electronic component assemblies.

Choose Phoenix Contact's 1086475 UBAL 95 Series High Current Connector for reliable performance in demanding electrical and industrial environments. Explore related DIN Rail Terminal Blocks and connectors at EnvMart for comprehensive solutions.
