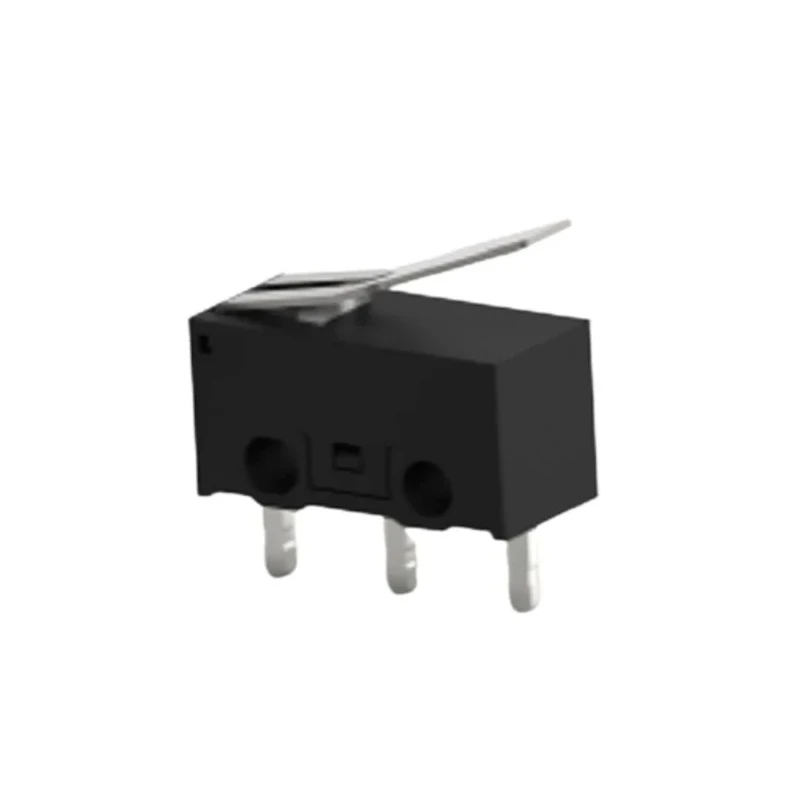

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPDT, Operating Force 0.75N SAJ101XBL0N74SDTPTQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XBL0N74SDTPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- The miniature micro switch features a lever actuator for easy mechanical to electrical conversion.
- It has a single-pole double-throw (SPDT) contact configuration.
- The operating force is 0.75N ensuring reliable actuation.
- Suitable for temperatures ranging from -25°C to 75°C for diverse applications.
- Mechanical life expectancy of 1,000,000 cycles provides durable performance.
- RoHS compliant, aligned with environmental safety standards.
- PCB terminal design is resistant to flux and ideal for electronic assemblies.
Product Description
TE Connectivity model SAJ101XBL0N74SDTPTQ is a lever snap action micro switch offering a precise and reliable method to convert mechanical actions to electrical signals. This miniature switch features a lever actuator type and a printed circuit board (PCB) terminal, making it highly suitable for integration into compact electronic systems.
Rated for a contact current of 0.1A and with an operating force of 0.75N, this SPDT (single-pole double-throw) switch ensures dependable switching performance with minimal effort. Its operating temperature range from -25°C minimum to 75°C maximum allows usage across various environments, including factory automation, consumer electronics, home appliances, and other industrial and domestic applications.
Designed for durability, the micro switch offers a mechanical life of up to 1,000,000 cycles, supporting long-term operational reliability. It complies with RoHS standards, ensuring it meets directives for hazardous substances and is suitable for contemporary environmentally-conscious manufacturing.
The compact design is dimensionally compatible with other standard micro switches, simplifying replacement and integration into existing designs. The PCB terminals are flux resistant, which facilitates soldering and mounting while maintaining electrical integrity.
The switch actuator is a lever type, offering mechanical advantage and responsive switching. Contact configuration is SPDT, allowing versatile circuit design possibilities. Robust mechanical life rated at one million cycles.
Suitable for use in electronics, industrial automation, and household appliances. Environmentally compliant with RoHS directive. Operates effectively within a wide temperature range from -25°C to 75°C. PCB terminal type resistant to flux enhances mounting durability.
This TE Connectivity micro switch is an industrial-grade component valued for precision, longevity, and adaptability in demanding electrical and electronic systems. Ideal for engineers, manufacturers, and maintenance technicians looking for reliable switch components.
Explore more high-quality Micro Switches and electrical components at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating force of this micro switch is 0.75N, ensuring reliable actuation with minimal effort.
This model features a single-pole double-throw (SPDT) contact configuration, allowing for versatile circuit designs.
It operates effectively within a temperature range of -25°C to 75°C, making it suitable for various environments.
The mechanical life expectancy of this switch is rated at 1,000,000 cycles, providing long-term operational reliability.
This model features PCB terminals, which are resistant to flux and enhance mounting durability.
Yes, it is RoHS compliant, ensuring it meets directives for hazardous substances.
The switch uses a lever actuator type, which provides a mechanical advantage for responsive switching.
The maximum operating temperature for this micro switch is 75°C.
The contact current rating for this micro switch is 0.1A.
This model belongs to the SAJ1 series from TE Connectivity.
The country of origin for this micro switch is India.
This is a miniature micro switch, designed for compact electronic systems.
