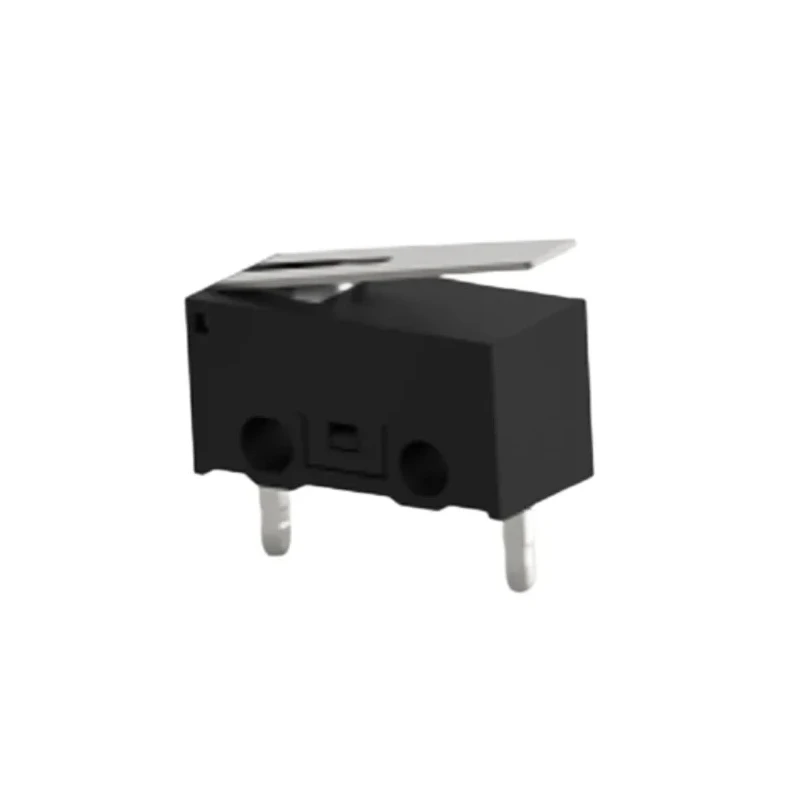

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XHL0N74SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XHL0N74SNCPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Miniature snap action switch with robust lever actuator.
- SPST contact configuration supporting 0.1A current.
- PCB terminal for reliable and flux-resistant connections.
- Operating force is 0.75N ensuring responsive actuation.
- Wide operating temperature range from -25°C to 75°C.
- Long mechanical life rated at 1,000,000 cycles.
- RoHS compliant ensuring environmental safety.
- Designed for industrial and consumer electronics applications.
Product Description
TE Connectivity SAJ101XHL0N74SNCPTQ lever snap action micro switch is a miniature device engineered for converting mechanical operations into electrical signals with high precision and durability. This snap action switch features a lever actuator and a Printed Circuit Board (PCB) terminal, making it highly suitable for seamless integration into various circuits requiring rapid and reliable switching.
With a contact rating of 0.1A in a Single Pole Single Throw (SPST) configuration, this switch is ideal for low current signal switching tasks in domestic appliances, factory automation, and consumer electronics. Its PCB terminal design offers excellent resistance to flux, ensuring long-term reliability during soldering and assembly processes.
The operating force of 0.75 Newtons provides a balanced actuation effort, enabling smooth and consistent switch performance. It operates effectively in ambient temperatures ranging from -25°C to +75°C, accommodating various environmental conditions encountered in industrial and commercial settings.
Engineered for extended durability, the micro switch delivers a mechanical lifespan of 1,000,000 cycles, making it a dependable component in demanding applications. Compliance with RoHS standards underscores its environmentally friendly design and materials.
Its compact size and dimensional similarity to other popular brands facilitate easy replacement and backward compatibility in existing designs, thereby reducing redesign efforts. Miniature snap action switch with robust lever actuator.
SPST contact configuration supporting 0.1A current. PCB terminal for reliable and flux-resistant connections. Operating force is 0.75N ensuring responsive actuation. Wide operating temperature range from -25°C to 75°C. Long mechanical life rated at 1,000,000 cycles.
RoHS compliant ensuring environmental safety. Designed for industrial and consumer electronics applications.
This TE Connectivity Micro Switch is suitable for a broad range of industrial, laboratory, automation, and HVAC uses, including as a control component in home appliances, factory automation systems, and precision instrumentation.
Explore more industrial switches and electrical components at EnvMart for reliable and high-quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch features a Single Pole Single Throw (SPST) contact configuration, suitable for low current signal switching tasks.
The maximum operating temperature for this model is 75°C, allowing it to function effectively in various environmental conditions.
It uses a lever actuator, which provides a balanced actuation effort for responsive performance.
The switch contact is rated for 0.1A, making it suitable for low current applications.
The operating force required to actuate this switch is 0.75 Newtons, ensuring smooth and consistent performance.
This micro switch has a mechanical life rated at 1,000,000 cycles, indicating its durability in various applications.
The minimum operating temperature for this device is -25°C, allowing it to be used in colder environments.
It features a PCB terminal, which provides reliable and flux-resistant connections during soldering and assembly.
Yes, it is RoHS compliant, ensuring that it meets environmental safety standards.
This model is designed for industrial and consumer electronics applications, including home appliances and factory automation systems.
The country of origin for this micro switch is China.
Its compact size and dimensional similarity to other popular brands facilitate easy replacement and backward compatibility in existing designs.
