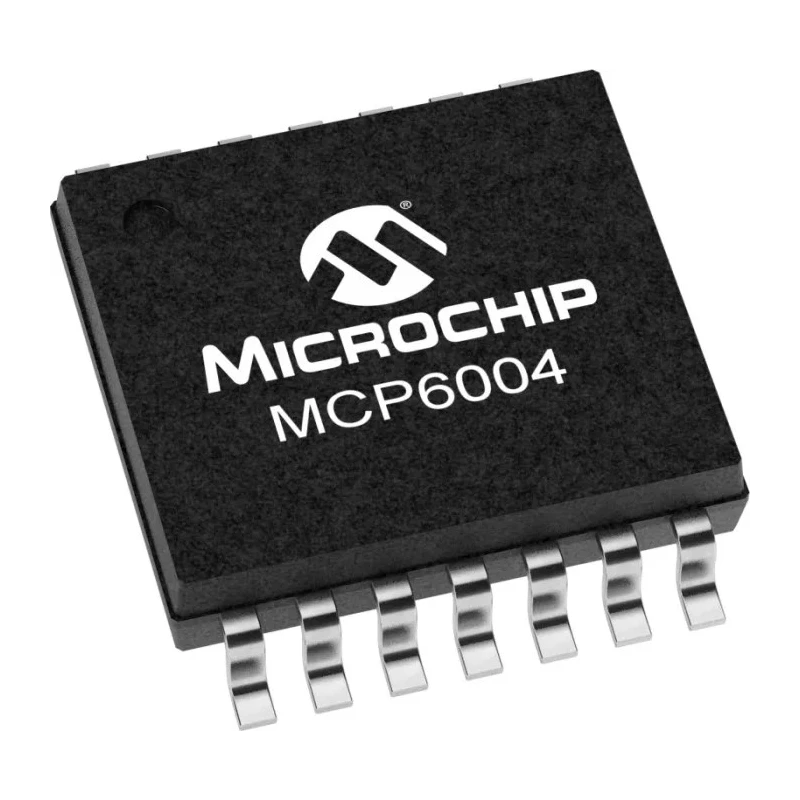

Microchip Operational Amplifier MCP6004T-E/SL, 1 MHz Gain Bandwidth, 14-Pin SOIC, 1.8-6V MCP6004T-E/SL

Microchip MCP6004T-E/SL operational amplifier is a versatile 14-pin SOIC surface-mount device designed for a wide range of industrial, laboratory, and electronic applications requiring precision and low power consumption. The device offers a 1 MHz gain bandwidth product and rail-to-rail input/output performance, maximizing dynamic range for analog signal conditioning.

The amplifier operates with a supply voltage range from 1.8 V to 6 V, making it compatible with modern low-voltage digital systems while maintaining robust performance. It features a typical supply current of 100 μA to optimize energy efficiency, complemented by a modest slew rate of 0.6 V/μs that supports signals with moderate frequency components.

Designed to function reliably under harsh environments, the MCP6004T-E/SL supports an industrial temperature range from -40°C to +85°C and an extended range up to +125°C. This broad thermal tolerance makes it suitable for automotive, manufacturing instrumentation, and field sensor applications.

The operational amplifier includes a stable design for driving capacitive loads up to 500 pF with a 45° phase margin, preventing oscillations in complex signal paths. It can deliver an output current up to 30 mA, adequate for directly driving loads in control systems and signal conditioning circuits.

Its 14-pin SOIC package allows surface mounting on compact printed circuit boards, supporting mass manufacturing and automated assembly. The input offset current of ±1 pA ensures high precision in low-level signal amplification tasks.

Rail-to-rail input/output enhances signal handling capability. Wide power supply range from 1.8 V to 6 V for flexible system integration. Industrial and extended temperature ranges enable use in extreme conditions. Low supply current reduces power consumption in portable devices.

Stable with capacitive loads up to 500 pF for diverse applications. 30 mA output current suitable for driving external circuits directly. Advanced CMOS technology ensures high reliability and performance. Compact 14-pin SOIC package facilitates convenient PCB mounting.

Minimal input offset current for precise signal amplification.

This Microchip Operational Amplifier MCP6004T-E/SL is ideal for industrial controls, instrumentation, laboratory equipment, consumer electronics, automotive electronics, and embedded systems requiring a reliable, low-power, and high-precision analog signal amplifier. Explore the extensive range of Microchip semiconductor amplifiers on EnvMart for optimized electronic component solutions.
