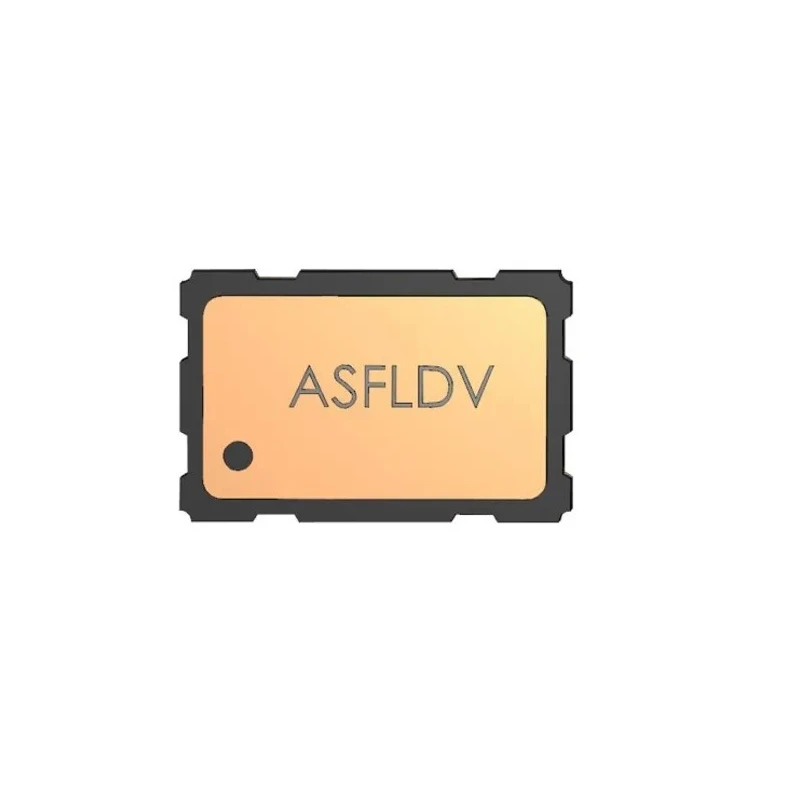

Abracon 24MHz Crystal Oscillator ±50 ppm CMOS, HCMOS, LVCMOS, 4-Pin Surface Mount ASFLDV-24.000MHz-LC-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 24MHz Crystal Oscillator ±50 ppm CMOS, HCMOS, LVCMOS, 4-Pin Surface Mount ASFLDV-24.000MHz-LC-T

Name: Abracon 24MHz Crystal Oscillator ±50 ppm CMOS, HCMOS, LVCMOS, 4-Pin Surface Mount ASFLDV-24.000MHz-LC-T
Brand: Abracon
SKU: 423744
Price: 2.14 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.3mm
Length	5mm
Model	ASFLDV-24.000MHz-LC-T
Packaging	Bulk
Width	3.2mm
Mount Type	Surface
Series	ASFLDV
Maximum Operating Temperature	85°C
Output Frequency	24MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS/RoHS II, ISO9001-2015
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	1.6V
Load Capacitance	15pF
Oscillator Type	Crystal Oscillator
Output Level	CMOS, HCMOS, LVCMOS

Key Features

Operates with low current consumption between 1.6 V and 3.63 V supply voltage.
Hermetically sealed ceramic package protects against environmental factors.
Supports output enable/start and disable/stop functions for power management.
Compatible output waveform with CMOS, HCMOS, and LVCMOS logic levels.
Wide operating temperature range from -40°C to 85°C for reliable performance.
Compact size with dimensions 5mm length, 3.2mm width, and 1.3mm height.
Compliance with RoHS/RoHS II and ISO9001-2015 quality standards.
Optimized for portable, wearable, consumer, and industrial electronics applications.

Product Description

The Abracon ASFLDV-24.000MHz-LC-T is a precision crystal oscillator featuring a 24MHz output frequency with ±50 ppm frequency stability, optimized for CMOS, HCMOS, and LVCMOS logic families. This device is housed in a hermetically sealed ceramic surface mount package that provides excellent protection against moisture and contaminants, ensuring long-term reliability.

Powered by a continuous voltage supply range from 1.6 V to 3.63 V, the oscillator maintains low current consumption making it ideal for energy-sensitive portable and wearable electronic devices. The device supports output enable/start and disable/stop functions enabling effective power management in complex electronic systems.

With an operating temperature range from -40°C to 85°C, this crystal oscillator is suitable for industrial, consumer electronics, and control equipment applications requiring durability across varying environmental conditions. Its compact size of 5mm length, 3.2mm width, and 1.3mm height facilitates integration into space-constrained PCB layouts.

The ASFLDV series complies with RoHS and ISO9001-2015 standards, ensuring environmental safety and quality manufacturing processes. Typical use cases include industrial control systems, consumer electronics, telecommunications, and wearable technology.

Operates with low current consumption between 1.6 V and 3.63 V supply voltage. Hermetically sealed ceramic surface mount package for environmental resilience. Supports output enable/start and disable/stop functions. Compatible with CMOS, HCMOS, and LVCMOS output waveforms.

Wide operating temperature range of -40°C to +85°C. Compact package dimensions: 5mm x 3.2mm x 1.3mm. RoHS and ISO9001-2015 certified for quality and compliance.

This oscillator is ideal for use in various industrial, laboratory, consumer electronics, and telecommunications applications where stable frequency generation is critical. EnvMart offers this high-quality component for design engineers and manufacturers seeking reliable and compact Crystal Oscillators.
