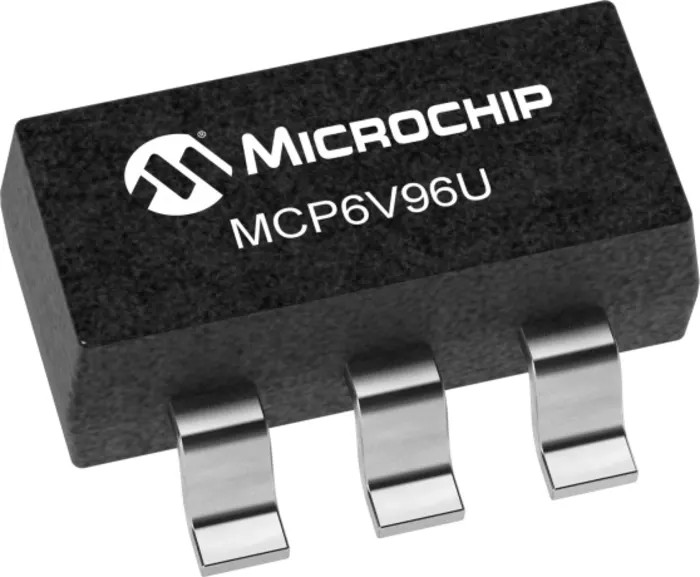

Microchip Operational Amplifier 10 MHz Gain Bandwidth Product 5-Pin SC-70-5 Package MCP6V96UT-E/LTY

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier 10 MHz Gain Bandwidth Product 5-Pin SC-70-5 Package MCP6V96UT-E/LTY

Name: Microchip Operational Amplifier 10 MHz Gain Bandwidth Product 5-Pin SC-70-5 Package MCP6V96UT-E/LTY
Brand: Microchip
SKU: 423596
Price: 2.33 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Length	2mm
Model	MCP6V96UT-E/LTY
Width	2.1mm
Mount Type	Surface
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	SC-70-5
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.4V
GBP - Gain Bandwidth Product	10MHz
Input Bias Current	±2 to +50 pA
Slew Rate	9.5V/μs
Input Offset Current	400 pA

Key Features

Provides zero-drift architecture ensuring stable offset voltage.
Maximum offset voltage of only 25 microvolts for precision applications.
Gain bandwidth product of 10 MHz suitable for high-frequency signals.
Operates with supply voltage from 2.4 V to 5.5 V.
Slew rate of 9.5 V/μs ensuring fast response time.
Wide operating temperature range from -40°C to 125°C for harsh conditions.
Single channel device with 5 pins for efficient board space utilization.
Output current capability of 30 mA for driving loads.

Product Description

Microchip MCP6V96UT-E/LTY operational amplifier is a high-performance zero-drift amplifier designed for precision electronics. Featuring a gain bandwidth product of 10 MHz, this single-channel amplifier operates from 2.4 V up to 5.5 V supply voltage. The device is housed in a compact 5-pin SC-70-5 surface mount package measuring 2 mm by 2.1 mm, suitable for space-constrained designs.

This amplifier offers an extremely low input offset voltage of 25 microvolts and low offset drift for stable and accurate signal amplification. It supports wide operating temperatures ranging from -40°C to 125°C, making it ideal for industrial, automotive, and embedded applications requiring reliable performance in harsh environments.

The slew rate of 9.5 V/μs ensures the amplifier can handle rapid changes in input signals with minimal distortion, while the output current capability of 30 mA provides sufficient drive for various loads. The MCP6V96UT family also includes enhanced EMI rejection features, reinforcing signal integrity in electrically noisy environments.

Typical uses include signal conditioning in industrial control systems, sensor signal amplification in measurement equipment, and precision amplification in medical devices and instrumentation. The device is RoHS compliant, ensuring minimal environmental impact and meeting industry standards for electronic components.

Zero-drift architecture for low offset voltage and offset drift. High gain bandwidth product of 10 MHz for fast, accurate signal processing. Wide operating temperature range ensures robust operation. Compact 5-pin SC-70-5 package minimizes board space.

Low input bias current suitable for sensitive measurements. Stable operation under varying supply voltages from 2.4 V to 5.5 V. High slew rate for rapid signal response. RoHS compliant for environmentally conscious designs.

Widely applicable across industrial, automotive, and instrumentation fields. Enhanced EMI rejection supports use in noisy electronic environments. Explore the broad range of Microchip Operational Amplifiers available at EnvMart for various industrial and scientific applications.
