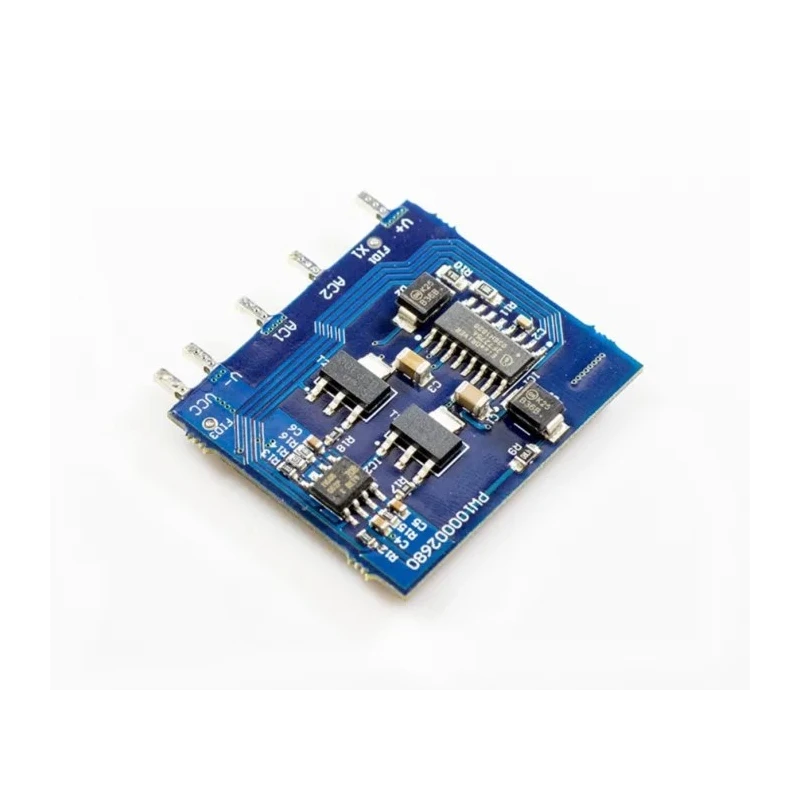

Infineon Evaluation Board KITACTBRD60R040S7TOBO1 PFC Controller for 2EDF7275F, IPT60R040S7, IR11688 for Power Supplies
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Infineon |
| Model | KITACTBRD60R040S7TOBO1 |
| For Use With | Power Supplies |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | 2EDF7275F, IPT60R040S7, IR11688 |
| Kit Name | KIT_ACT_BRD_60R040S7 |
Key Features
- The evaluation board replaces a standard diode bridge rectifier with an active full-bridge for line rectification in CCM boost PFCs.
- Specifically designed to enhance efficiency in power supplies and telecom applications.
- Incorporates an extremely compact design for ease of integration.
- Supports high efficiency in power factor correction operations.
- RoHS compliant ensuring environmentally safe materials use.
- Includes featured devices 2EDF7275F, IPT60R040S7, and IR11688 for comprehensive evaluation.
- Manufactured in Slovenia, reflecting quality European engineering.
Product Description
Infineon KITACTBRD60R040S7TOBO1 is a specialized evaluation board designed as a PFC controller intended primarily for power supplies. This board targets line rectification applications by replacing the traditional diode bridge rectifier with an active full-bridge design optimized for continuous conduction mode (CCM) boost PFCs. It is widely used in power supply and telecommunications circuits to enhance system efficiency.
The compact, space-saving design makes it suitable for integration into modern power management systems requiring high efficiency and reliability. The board integrates key semiconductor devices 2EDF7275F, IPT60R040S7, and IR11688, which allow users to test and optimize power factor correction designs effectively.
This evaluation board complies with RoHS standards, ensuring environmentally conscious manufacturing and component selection. The product is made in Slovenia, guaranteeing European quality standards and consistent performance.
The evaluation board replaces the standard diode bridge rectifier with an active full-bridge for optimized CCM boost PFCs. Designed for power supplies and telecommunication applications requiring high efficiency. Compact and space-saving design suitable for advanced power management implementations.
Features leading-edge semiconductor devices 2EDF7275F, IPT60R040S7, and IR11688 for comprehensive evaluations. RoHS compliant to meet environmental regulations. Manufactured in Slovenia ensuring quality assurance.
Ideal for engineers and developers working on power supply designs, telecommunications hardware, and industrial electronics. The Infineon KITACTBRD60R040S7TOBO1 evaluation board facilitates quick development and testing of power factor controller circuits for improved device performance.
Explore more power management and development tools at EnvMart for your electronic design and prototyping needs.
Explore more products in our Power Management Development Kit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board serves as a PFC controller, replacing a standard diode bridge rectifier with an active full-bridge for line rectification in continuous conduction mode (CCM) boost power factor correction applications.
The board incorporates the semiconductor devices 2EDF7275F, IPT60R040S7, and IR11688, enabling comprehensive evaluation for power factor correction designs.
It is specifically designed for power supplies and telecommunications applications that require high efficiency in power factor correction operations.
Yes, it is RoHS compliant, ensuring that it meets environmental regulations regarding the use of hazardous substances.
The evaluation board is manufactured in Slovenia, reflecting quality European engineering standards.
The product is classified as an evaluation board, specifically designed for testing and development purposes.
By utilizing an active full-bridge instead of a standard diode bridge rectifier, it enhances efficiency in power factor correction operations.
The compact, space-saving design allows for easy integration into modern power management systems, making it suitable for various applications.
It is intended for engineers and developers working on power supply designs and telecommunications hardware, facilitating quick development and testing of power factor controller circuits.
The model number is KITACTBRD60R040S7TOBO1, which identifies this specific evaluation board from Infineon.
This evaluation board is designed for use with power supplies, specifically in applications that require efficient power factor correction.
It provides a platform for testing and optimizing power factor correction designs, which can lead to improved device performance in power management applications.
