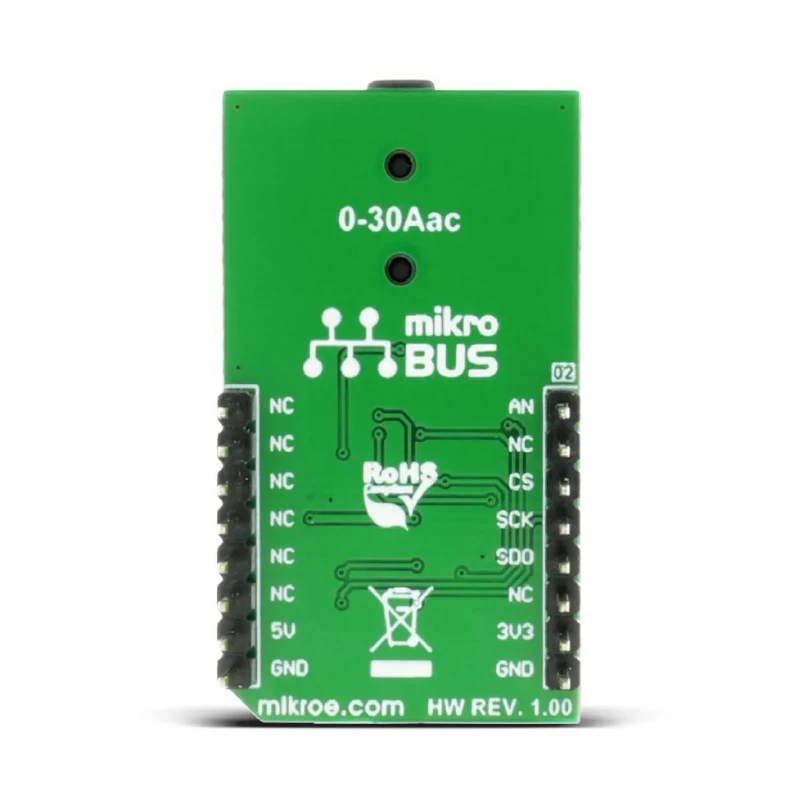

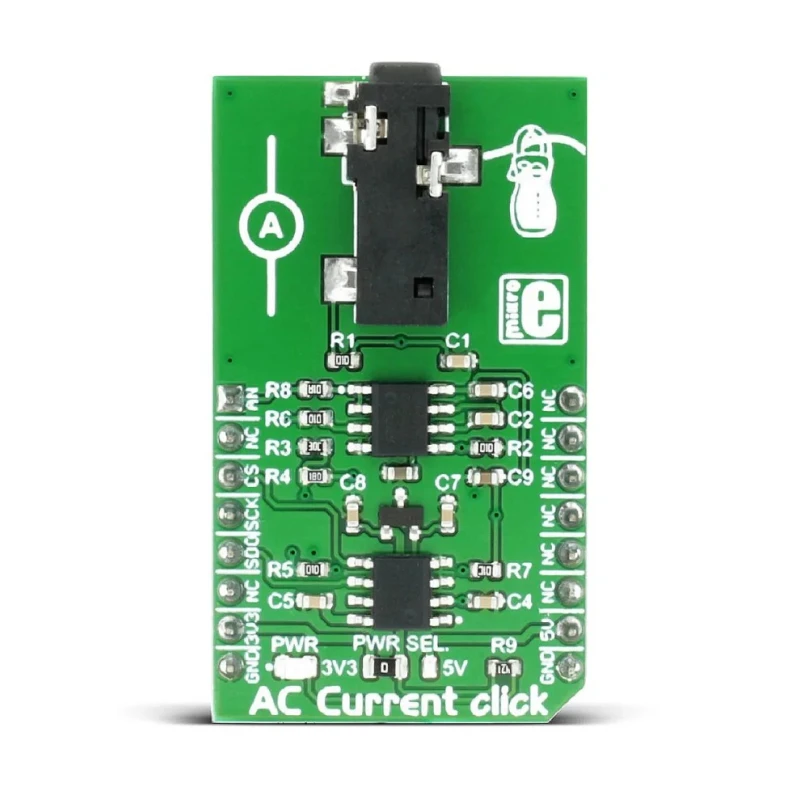

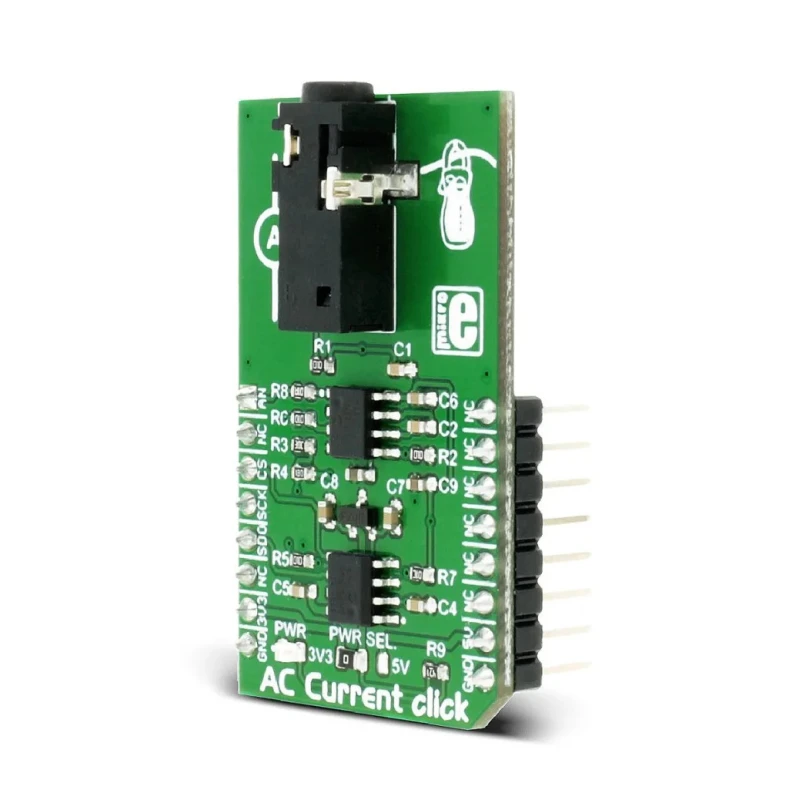

MikroElektronika Power Management Development Kit AC Current Click Current Measurement for MCP3201, MCP607 MIKROE-2523
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-2523 |
| For Use With | Alternating Voltage/Current Source, Current Monitoring, Power Consumption Measurement |
| Kit Classification | AC Current Click Board |
| Featured Device | MCP3201, MCP607 |
| Kit Name | AC Current Click |
Key Features
- Measures power line alternating currents up to 30A with high accuracy.
- Features MCP3201 12-bit analog-to-digital converter with SPI interface.
- Includes MCP607 micropower CMOS operational amplifier for signal conditioning.
- Firmware adjustable multiplication constant supports 10A or 100A current ranges.
- Operates on 3.3 V or 5 V power supply via mikroBUS socket.
- Equipped with 3.5 mm socket connector for AC current sensor input.
- Supports single-phase measurement with a non-invasive, one-wire sensor connection.
- Comes with header strips pre-soldered for easy integration.
Product Description
MikroElektronika MIKROE-2523 AC Current Click is a specialized power management development kit designed to measure alternating current accurately in industrial, laboratory, and educational applications. Leveraging the MCP3201 12-bit analog-to-digital converter with SPI interface and the MCP607 micropower CMOS operational amplifier, this click board facilitates precise current measurement for alternating voltage/current sources.
The device supports measurement of power line alternating currents up to 30A, with the flexibility to change current measurement ranges between 10A and 100A via firmware multiplication constant adjustments. Operable on both 3.3 V and 5 V power supplies provided through the mikroBUS socket, this board also includes a 3.5 mm socket connector to interface with AC current sensors (sensor not included), enabling non-invasive, single-phase current measurement through a single wire.
The AC Current Click simplifies integration by including header strips pre-soldered to the board, making it reliable for power consumption monitoring, control, and development workflows in electronic system design contexts such as robotics, automation, and power management testing.
Measures alternating currents up to 30A with MCP3201 ADC. Uses MCP607 micropower operational amplifier for signal conditioning. Adjustable firmware constant for multiple current ranges (10A/100A). Operates on 3.3 V or 5 V power supply via mikroBUS socket.
Includes 3.5 mm socket connector for AC Current Sensor input. Non-invasive, one-wire single-phase current measurement. Header strips soldered for straightforward installation.
This development kit is suitable for industrial and educational use cases including electrical testing, prototyping, and embedded system development involving current monitoring and measurement. It is an essential tool for engineers and developers working with power, motor, and robotics development tools.
Explore more Power Management Development Kits and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure alternating currents up to 30A.
It features the MCP3201 12-bit analog-to-digital converter with an SPI interface.
The kit includes the MCP607 micropower CMOS operational amplifier for signal conditioning.
The measurement range can be adjusted between 10A and 100A via a firmware adjustable multiplication constant.
It operates on both 3.3 V and 5 V power supplies provided through the mikroBUS socket.
It is equipped with a 3.5 mm socket connector for connecting an AC current sensor (sensor not included).
Yes, it supports non-invasive, single-phase current measurement with a one-wire sensor connection.
This kit is designed for alternating voltage/current sources, current monitoring, and power consumption measurement in industrial, laboratory, and educational settings.
The kit is classified as an AC Current Click Board.
Header strips are pre-soldered to the board for straightforward installation and integration.
The country of origin for this product is India.
The featured devices associated with this kit are the MCP3201 and MCP607.
