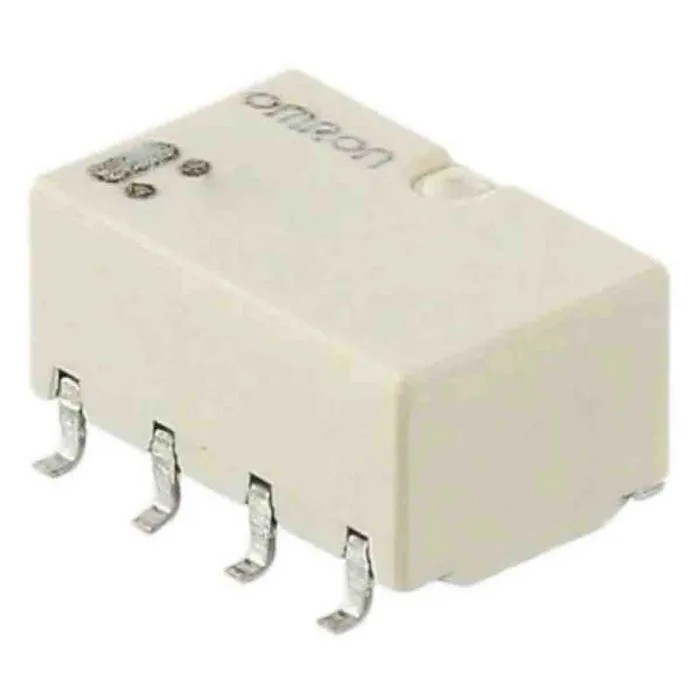

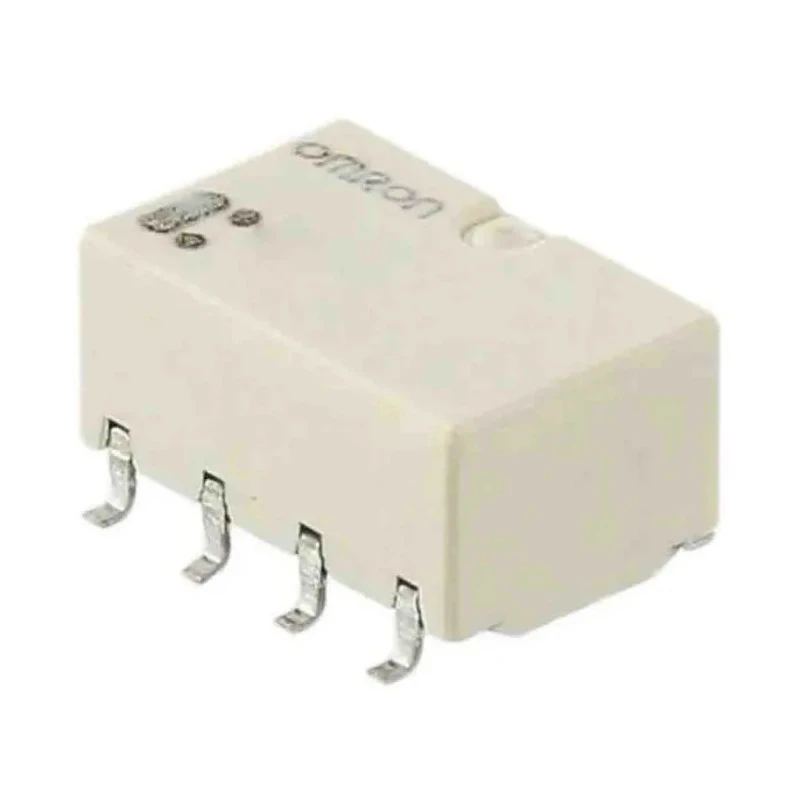

Omron Surface Signal Relay 3V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2F-TR DC3

Omron G6K-2F-TR DC3 Surface Signal Relay is engineered for precise and reliable switching applications requiring a 3V DC coil and DPDT contact configuration.

This sub-miniature surface mount relay measures a compact 10mm x 6.5mm x 5.6mm, providing the world's smallest mounting area for signal relays. Its small size facilitates high-density PCB applications in industrial and commercial electronic devices.

Operating across a temperature range from −40°C up to 70°C with 100mW coil power consumption, the relay ensures efficient and consistent performance under various environmental conditions.

Featuring gold plated contacts and a maximum contact resistance of 100mΩ, this relay provides superior switching reliability and longevity. It supports a switching current of 1A with maximum switching voltages of 125V AC and 60V DC.

The G6K series relay, proudly made in Japan, complies with RoHS standards, making it a sustainable choice for engineers and designers focused on eco-friendly products. This signal relay is ideal for industrial automation, control systems, telecommunications, automotive electronics, and other high-density electronic circuit applications.

The relay supports surface mount type for compact PCB layouts. Coil power consumption is only 100mW, ensuring energy efficiency. The device operates reliably between -40°C and 70°C temperature range. Gold plated contacts provide low contact resistance and high reliability.

Compact dimensions of 10mm length, 6.5mm width, and 5.6mm height suit high-density mounting. Rated switching voltages are 125V AC and 60V DC for versatile applications. Coil resistance is 91Ω ensuring stable coil operation.
