TRACOPOWER Switching Power Supply Dual Output 24V DC 65W Chassis Mount TPP 65-231

Free Delivery in India | Lowest Global Shipping Charges

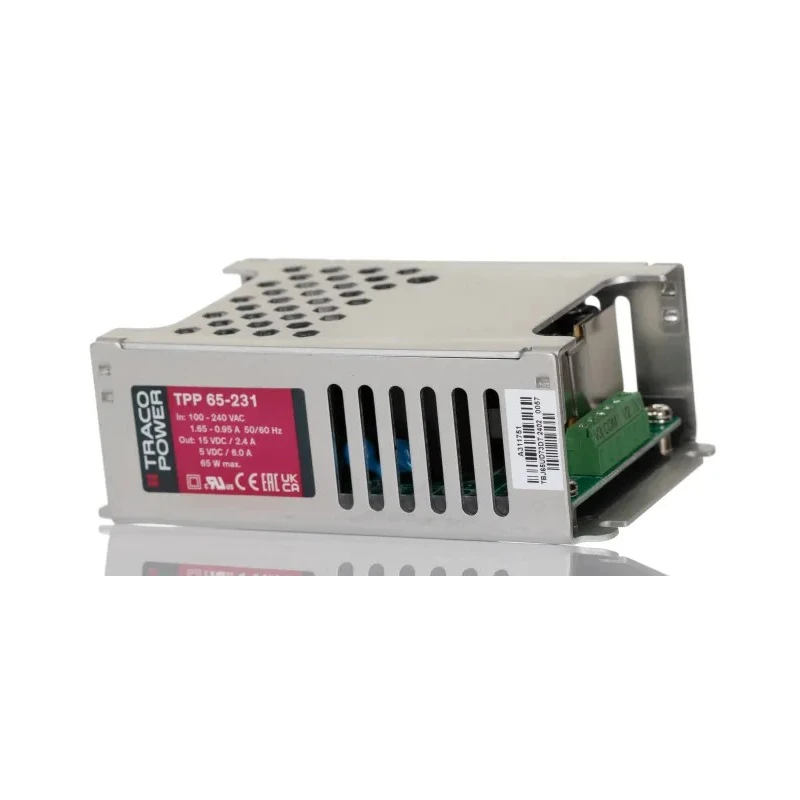

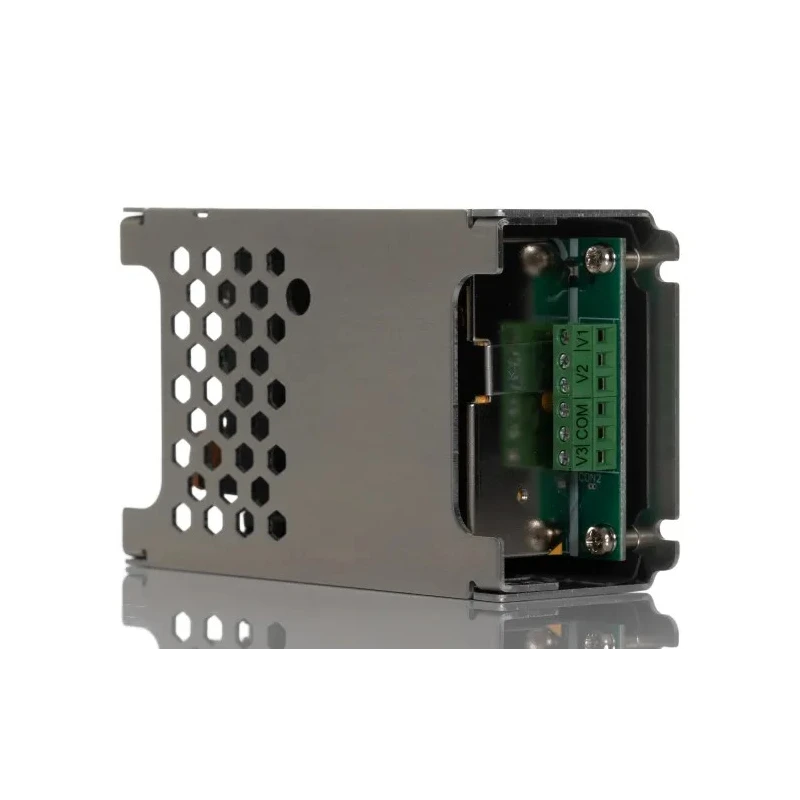

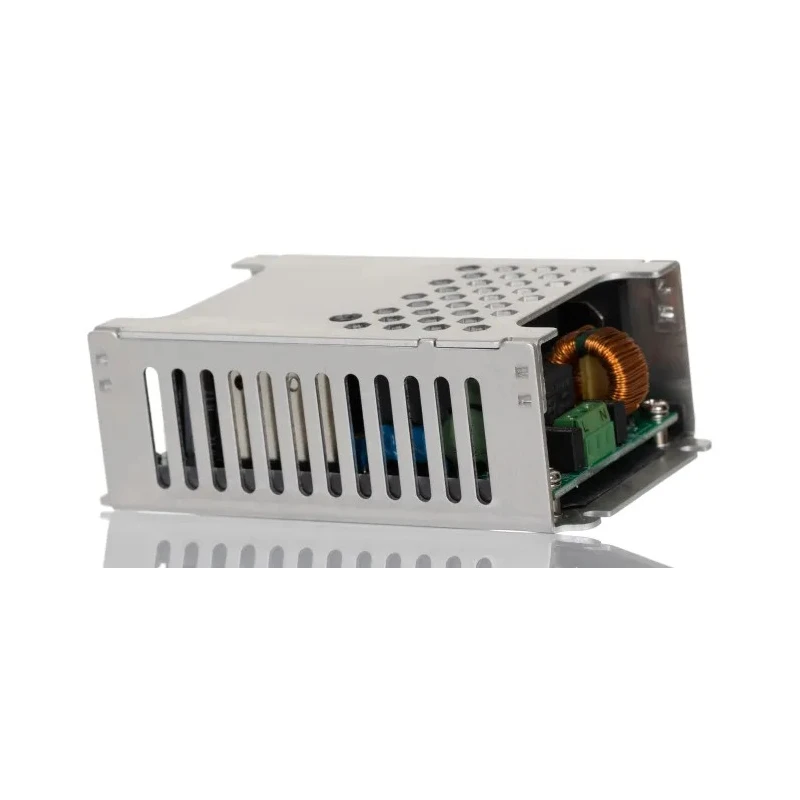

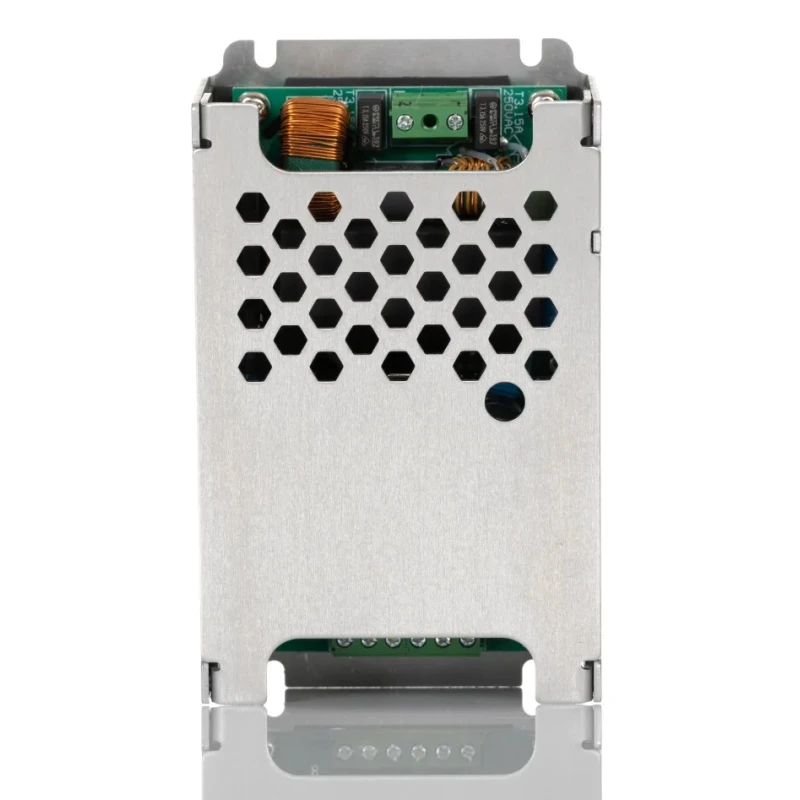

TRACOPOWER Switching Power Supply Dual Output 24V DC 65W Chassis Mount TPP 65-231

Name: TRACOPOWER Switching Power Supply Dual Output 24V DC 65W Chassis Mount TPP 65-231
Brand: TRACOPOWER
SKU: 422106
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	65W
Efficiency	91%
Length	102.4mm
Model	TPP 65-231
Depth	34.5mm
Gross Weight	221g
Width	60.5mm
Mount Type	Chassis
Series	TPP 65
Output Current	4.3A
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	2
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	10A
Minimum Input Voltage	85V ac

Key Features

Dual output design delivers 24V DC voltage at two outputs for versatile power needs.
Rated power output of 65W ensures reliable performance in demanding environments.
Chassis mount type for secure and compact installation in control panels.
Wide operating temperature range from -40°C to 85°C for industrial applications.
High efficiency of 91% reduces energy loss and improves thermal management.
Complies with medical safety standards including ANSI/AAMI ES 60601-1 and IEC 60601-1 certifications.
Maximum input voltage rating of 264V AC to support varied power sources.
Designed for applications requiring low leakage current and high reliability.

Product Description

The TRACOPOWER TPP 65-231 is a high-quality switching power supply designed to deliver two independent 24V DC outputs, each capable of handling considerable loads with a total maximum power of 65 watts. This dual-output unit is housed in a compact chassis mount enclosure, making it suitable for secure installations in industrial, medical, automation, and electronic applications.

Operating efficiently at 91%, this power supply offers excellent thermal management and reduced energy consumption, which contributes to prolonged service life and stability in challenging environmental conditions. It supports a wide operating temperature range from -40°C to 85°C, making it adequate for harsh industrial environments.

This model meets strict medical safety and performance standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, and IEC 62368-1, ensuring safe integration in medical device applications requiring dual voltage outputs with reliable isolation and low leakage currents.

With precise dimensions of 102.4mm in length, 60.5mm in width, and 34.5mm in depth, it occupies minimal space while providing robust power. The maximum input voltage of 264V AC and minimum input of 85V AC allows compatibility with various AC power sources globally.

This switching power supply is ideal for powering automation controls, industrial electronics, mechanical equipment, and medical devices that require stabilized dual voltage rails. The unit’s chassis mount design simplifies installation in panels and enclosures where space constraints exist.

Dual 24V DC output for versatile power supply applications. 65W maximum output power ensures high performance. Chassis mount for compact and secure installation. Wide temperature range supports challenging environments. High efficiency at 91% minimizes energy waste.

Comprehensive medical safety certifications for critical applications. Compact form factor fits diverse installation needs. Supports wide AC input voltage range 85 to 264V. Designed for low leakage current and high reliability.

Made in Taiwan, Province Of China. Explore the full range of high-performance switching power supplies and other power solutions at EnvMart for industrial, medical, and commercial applications.
