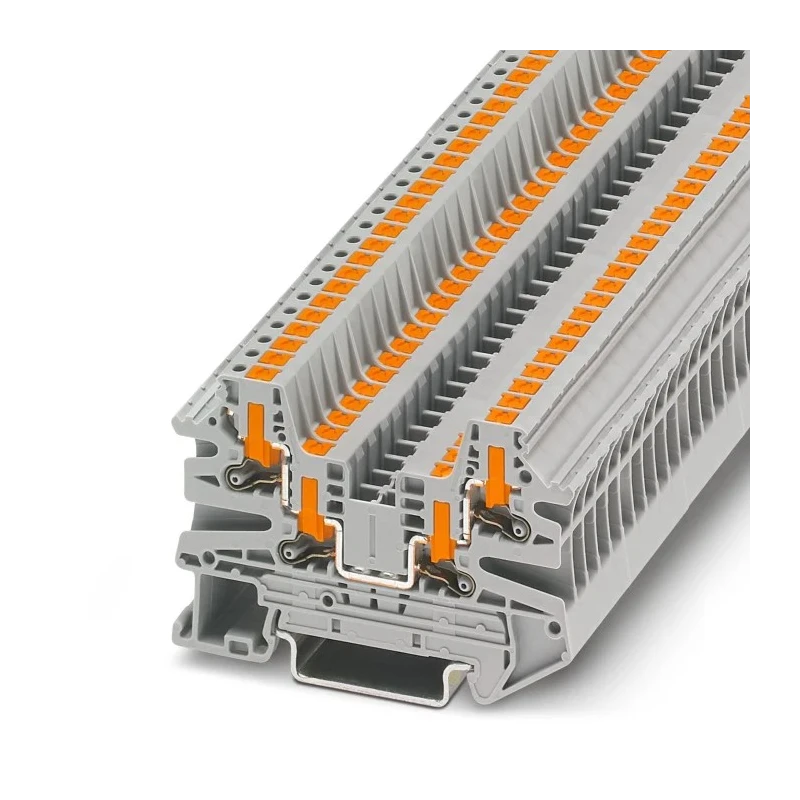

Phoenix Contact PTV Series Feed Through Terminal Block Grey, 1-Level, Push-in Technology, IECEx/ATEX Certified 1078999

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PTV Series Feed Through Terminal Block Grey, 1-Level, Push-in Technology, IECEx/ATEX Certified 1078999

Name: Phoenix Contact PTV Series Feed Through Terminal Block Grey, 1-Level, Push-in Technology, IECEx/ATEX Certified 1078999
Brand: PHOENIX CONTACT
SKU: 421386
Price: 3.08 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	1078999
Series	PTV
Termination Type	Push-in
Maximum Operating Temperature	105°C
Number of Levels	1
Minimum Operating Temperature	-60°C
Pitch	5.2mm
Hazardous Area Certification	IECEx/ATEX
Standards/Approvals	IEC 60947-7-1
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Terminal Block Current	28A

Key Features

Features a grey, single-level terminal block design for clear circuit organization.
Supports wire sizes ranging from 26 AWG to 12 AWG for versatile use.
Operates at a voltage rating of 800 volts and a current rating of 28 amperes.
Push-in termination ensures up to 50% less insertion force and easy installation.
Certified with IECEx and ATEX for use in hazardous industrial environments.
Equipped with robust polyamide housing for enhanced durability and lifespan.
Wide operating temperature range from -60°C to 105°C suitable for demanding conditions.
Conforms to IEC 60947-7-1 standards ensuring high safety and quality.

Product Description

Phoenix Contact 1078999 PTV Series Feed Through Terminal Block is a grey, 1-level terminal block designed with push-in technology, rated for 800V and 28A current. This product enables secure and efficient cable connections by combining the benefits of tool-free wiring with lateral conductor routing, reducing cable wear and simplifying installation.

The terminal block supports wire sizes from 26 AWG to 12 AWG and utilizes direct push-in technology which reduces insertion force by up to 50%. Its integrated lever allows cable release without risk of contact with live parts, enhancing user safety.

Constructed with high-quality contact springs, it ensures maximum contact force and vibration resistance, suitable for harsh industrial environments such as chemical processing, petrochemical plants, and shipbuilding. The robust polyamide housing improves the component's lifespan while meeting IEC 60947-7-1 standards.

Certified for hazardous areas with IECEx and ATEX approvals, this terminal block operates within a wide temperature range from -60°C to 105°C. Its 5.2mm pitch supports efficient circuit wiring on DIN rails, suitable for industrial automation and electrical applications.

Grey, single-level terminal block with push-in technology. Supports wire sizes from 26 to 12 AWG. Rated for 800V voltage and 28A current. IECEx and ATEX certification for hazardous areas. High-quality contact springs for reliable connection and vibration resistance.

Robust polyamide housing enhancing durability. Wide operating temperature range from -60°C to 105°C. Conforms to IEC 60947-7-1 standards. Suitable for demanding industrial environments including chemical and shipbuilding sectors.

This terminal block is an essential component for electricians and engineers requiring safe, durable, and easy-to-install electrical connectors in industrial, manufacturing, and automation systems. Explore more DIN Rail Terminal Blocks and related products on EnvMart for optimized electrical installation solutions.
