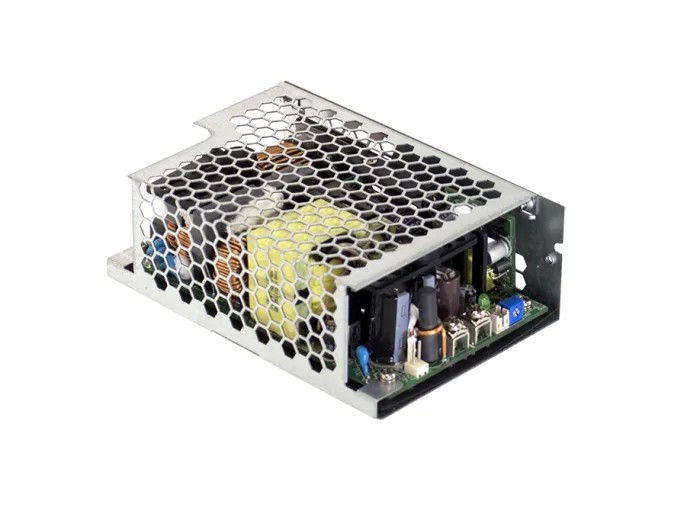

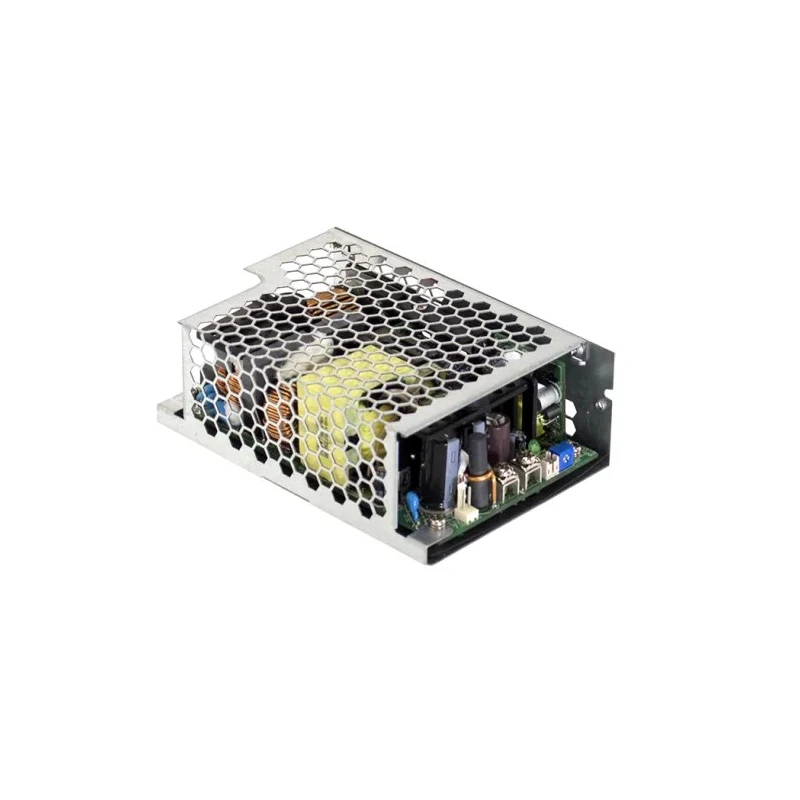

MEAN WELL 500.4W 36V dc Switching Power Supply PCB Mount RPS-500-36-C

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 500.4W 36V dc Switching Power Supply PCB Mount RPS-500-36-C

Name: MEAN WELL 500.4W 36V dc Switching Power Supply PCB Mount RPS-500-36-C
Brand: MEAN WELL
SKU: 421383
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	500.4W
Efficiency	94%
Length	130mm
Model	RPS-500-36-C
Depth	43mm
Gross Weight	540g
Width	43mm
Mount Type	PCB
Series	RPS-500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	36V dc
SMPS Output Current	8.6A
Minimum Input Voltage	80V ac

Key Features

High power density on a compact 5" by 3" PCB footprint.
Wide input voltage range from 80 to 264 VAC.
Operating temperature from -30°C to 70°C for versatile environments.
Efficiency up to 94% for reduced energy loss.
Protections include short circuit, overload, over voltage, and over temperature.
Extremely low no-load power consumption below 0.5W.
Extremely low leakage current less than 220µA for safety.
Single output with maximum current of 8.6A.

Product Description

MEAN WELL RPS-500-36-C is a highly reliable 500.4W switching power supply optimized for medical and industrial PCB mounting applications. Featuring a compact footprint of 5 inches by 3 inches, the unit delivers stable 36V DC output with a continuous maximum current of 8.6 amps.

This power supply accepts a broad input voltage range from 80VAC to 264VAC at standard 50/60Hz frequency, supporting worldwide electrical systems. Its operational temperature range spans from -30°C to 70°C, enabling robust performance in varied environmental conditions.

With an efficiency rating of 94%, the RPS-500-36-C minimizes energy wastage and reduces thermal load on connected systems. The design incorporates multiple protective features including short circuit, overload, over voltage, and over temperature protections, ensuring comprehensive system safety.

Low power consumption in standby mode (less than 0.5W) and extremely low leakage current below 220 microamperes further emphasize its suitability for sensitive medical and industrial equipment. The product supports both Class I ground systems with FG and Class II systems without FG, catering to diverse installation scenarios.

High power density compact PCB mount design. Wide universal AC input voltage compatibility. Strict compliance with global safety and EMC standards. Multiple protective features for operational safety. Low standby power and leakage current.

Single 36V DC output at 8.6A.

Applications include medical devices, industrial control equipment, and other critical electronic systems requiring reliable and efficient power delivery. Made in China, the MEAN WELL RPS-500-36-C offers a 3-year warranty backed by MEAN WELL's reputation for quality power supplies.
