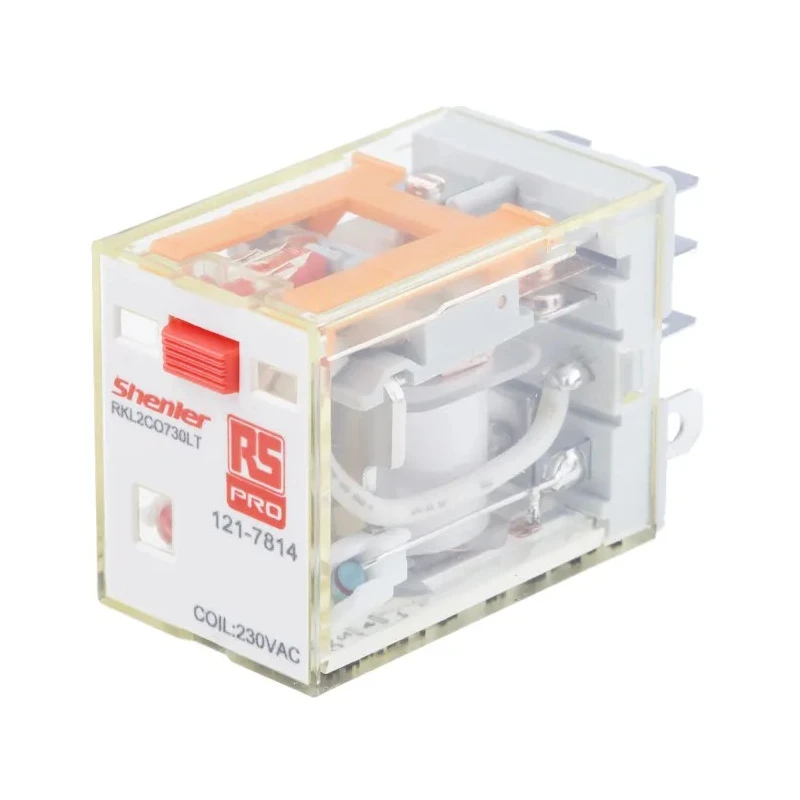

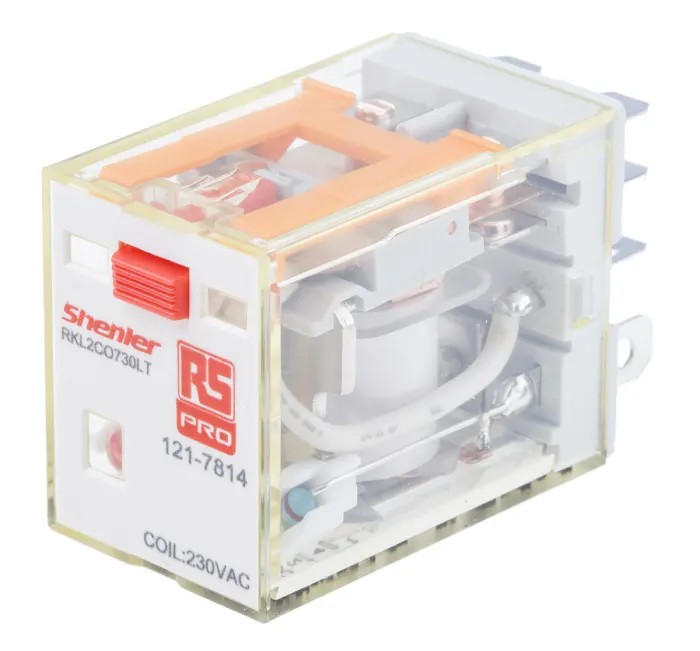

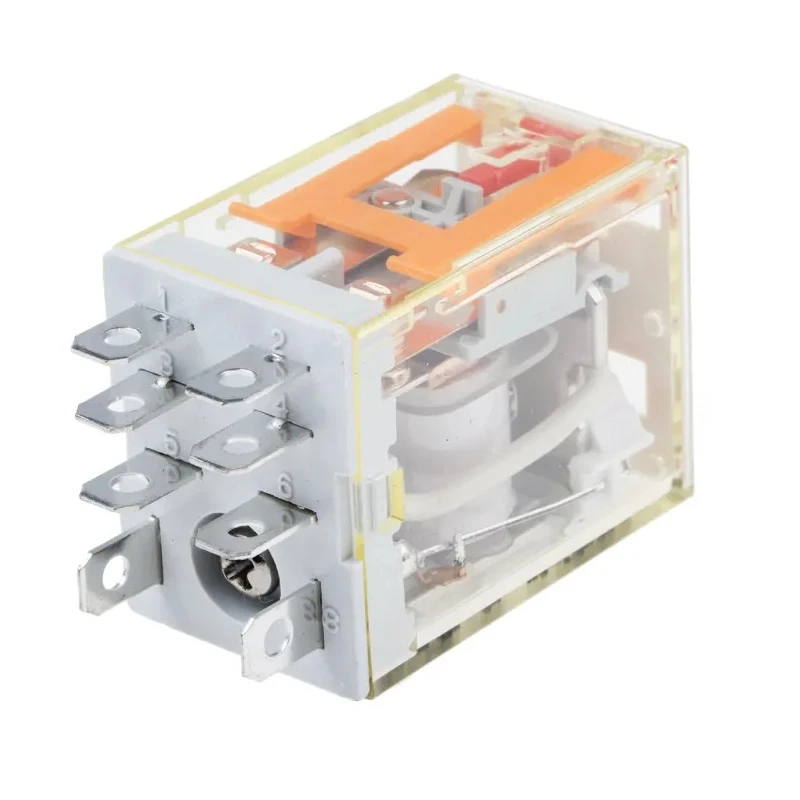

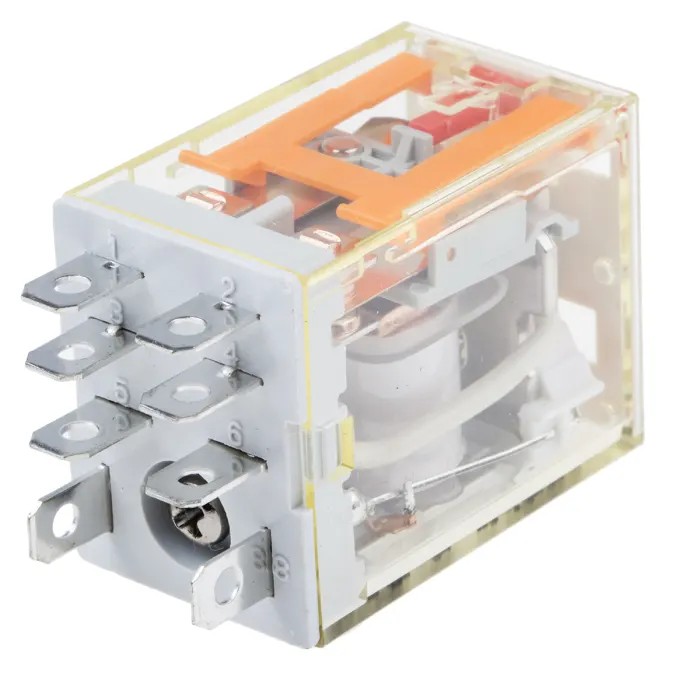

RS PRO Power Relay, 230V AC Coil, 10A Switching Current, Double Pole Double Throw DPDT 121-7814

RS PRO 121-7814 power relay is a non-latching, double pole double throw (DPDT) relay designed for efficient electrical switching with a 230V AC coil and 10A switching current capacity. It is ideal for industrial, automation, and electrical system applications where reliable switching between currents is required.

This relay features a plug-in terminal type, simplifying installation and replacement processes in various electrical configurations. Its compact dimensions of 28 mm length, 36 mm height, and 21.5 mm width enable versatile usage in constrained spaces.

The transparent housing construction permits easy internal component inspection, enhancing maintenance and safety checks without dismantling. This relay is capable of switching AC voltages up to 250V and DC voltages up to 30V with a maximum switching power of 2.5 kVA at AC and 1.4 W at DC.

Equipped with silver alloy contact materials, it offers a low contact resistance of 50 milliohms, ensuring minimal power loss and long-term electrical reliability. It has a robust mechanical lifespan of up to 10 million cycles and an electrical lifespan of 100,000 cycles, suitable for durable industrial use.

Operating reliably in temperatures ranging from -25°C to +55°C, this RS PRO relay meets CE and RoHS compliance standards, ensuring it meets international quality and environmental benchmarks.

The relay includes an LED indicator that lights when activated, providing clear visual feedback for operational status. Suitable for applications in manufacturing, electrical automation, HVAC systems, and heavy machinery, this power relay supports safe and flexible switching in various electrical circuits.

The packaging includes one RS PRO 121-7814 power relay unit with DPDT plug-in capability. Explore more power relays and related electrical components from RS PRO for reliable performance in diverse industrial environments available at EnvMart.

This power relay is designed for general-purpose industrial and electrical switching applications. It operates with a coil power of 300 W and supports both AC and DC voltage switching. The relay includes a plug-in terminal type for easy installation and replacement.

Silver alloy contacts ensure reliable conduction and low contact resistance of 50mΩ for optimal performance. Operating temperature ranges from -25°C to +55°C, suitable for varied industrial environments. A transparent relay housing allows visual inspection without disassembly for maintenance efficiency.

The relay supports 2.5 kVA switching power at AC 250V and 30 V DC switching voltage. Its mechanical and electrical life extends up to 10 million and 100 thousand cycles respectively. An LED indicator signals coil activation for operational convenience and troubleshooting.

Certified to CE and RoHS standards, assuring compliance with safety and environmental regulations. Browse EnvMart's selection of RS PRO Power Relays and electrical components for your automation and industrial electrical system needs.
