TRACOPOWER Switching Power Supply 48V 100W Chassis Mount TPP 100-148A-J

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 48V 100W Chassis Mount TPP 100-148A-J

Name: TRACOPOWER Switching Power Supply 48V 100W Chassis Mount TPP 100-148A-J
Brand: TRACOPOWER
SKU: 420711
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	100W
Efficiency	91%
Length	76.2mm
Model	TPP 100-148A-J
Depth	29.5mm
Gross Weight	156g
Width	50.8mm
Mount Type	Chassis
Series	TPP 100
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V
Maximum Output Voltage	48V
SMPS Output Current	2.09A
Minimum Input Voltage	85V ac

Key Features

The unit features a reinforced double I/O isolation system for enhanced safety.
Low earth leakage current below 75 μA makes it suitable for body floating (BF) applications.
High efficiency up to 91% ensures energy-saving operation.
Operating temperature range from -25°C to 85°C allows flexibility in harsh environments.
Active power factor correction improves power quality and reduces input current harmonic distortion.
Compact chassis mount design with dimensions 76.2mm length, 50.8mm width, and 29.5mm depth.
Supports an input voltage range from 85V AC minimum to 264V maximum.
Complies with international standards including UL 60950-1 and IEC 60950-1.

Product Description

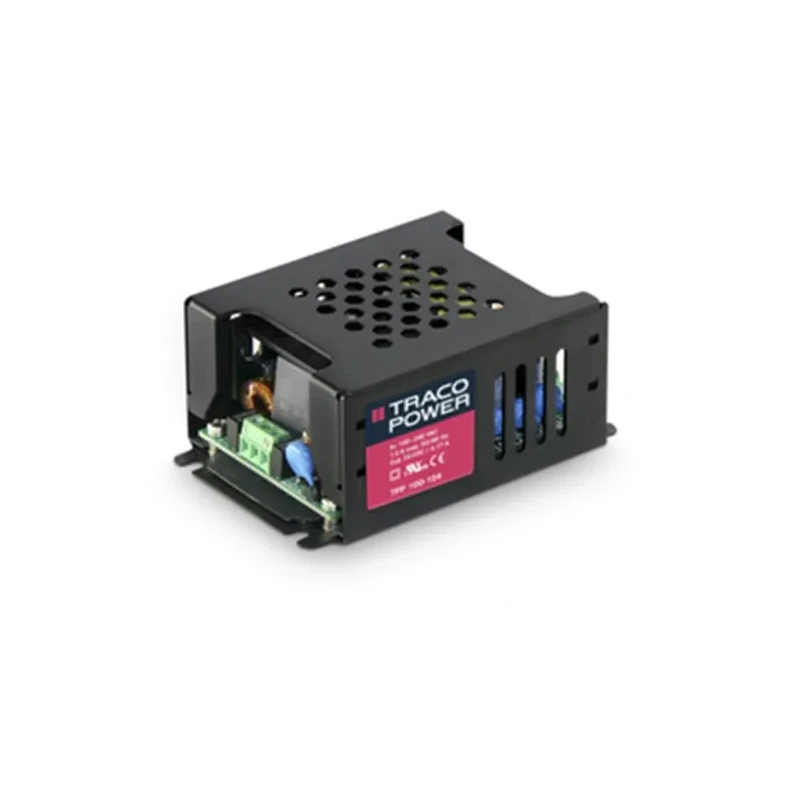

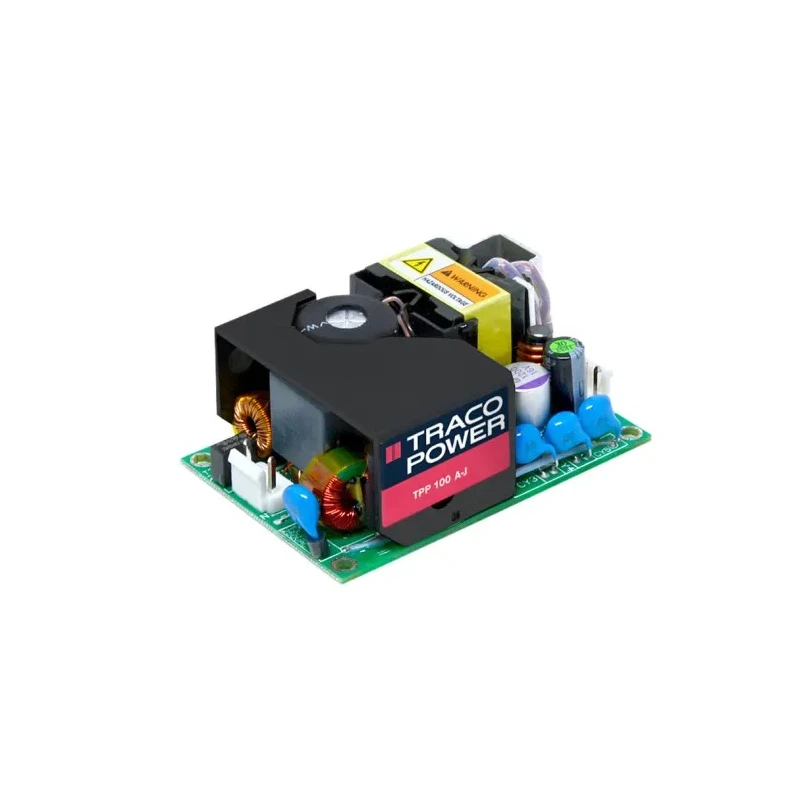

TRACOPOWER TPP 100-148A-J Switching Power Supply is a high-performance 100W AC/DC power supply delivering a regulated 48V output through a single output channel. This power supply offers a robust reinforced double I/O isolation system ensuring safety and reliability for sensitive electronic applications.

Featuring an earth leakage current under 75 μA, it is compliant with BF (Body Floating) standards, making it safe for medical and body-worn devices. Efficient energy conversion with up to 91% efficiency contributes to reduced heat dissipation and operational costs.

The device operates within a temperature range from -25°C to +85°C, allowing it to function reliably under industrial environmental conditions. Active power factor correction (>95%) optimizes input current and improves power quality.

Compact chassis mount form factor with precise dimensions of 76.2mm (L) x 50.8mm (W) x 29.5mm (D) and a lightweight design weighing 156 grams facilitate easy integration into equipment rack systems.

Input voltage compatibility spans from 85V AC to 264V AC for global applications. Meets stringent international safety and electromagnetic compatibility standards including UL and IEC certifications, ensuring adherence to quality and reliability benchmarks.

This power supply series is suitable for diverse industrial, medical, manufacturing, and domestic applications requiring reliable and efficient power delivery. Reinforced double I/O isolation system for enhanced safety. Low earth leakage current below 75 μA for BF applications.

High efficiency up to 91% for optimal energy usage. Wide operating temperature range from -25°C to 85°C. Active power factor correction greater than 95%. Compact chassis mount with precise dimensions. Wide input voltage range: 85V AC to 264V AC.

International standards compliance for global use. Lightweight design at 156 grams for easy integration. Explore TRACOPOWER switching power supplies and related components for your industrial and electronics projects at EnvMart.
