TRACOPOWER Switching Power Supply 9V DC 15W PCB Mount TPP 15-109-D

Free Delivery in India | Lowest Global Shipping Charges

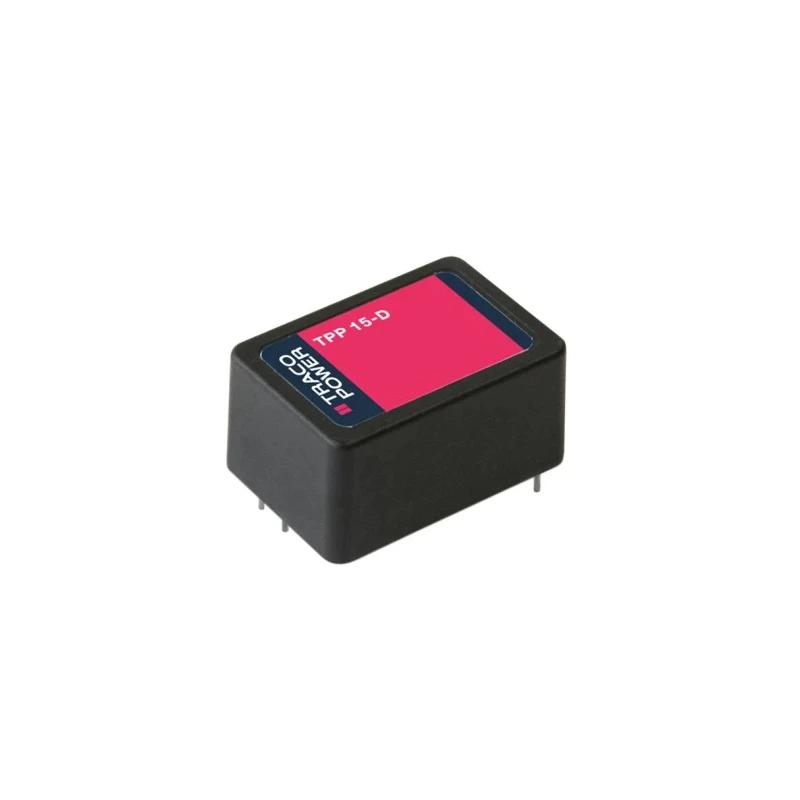

TRACOPOWER Switching Power Supply 9V DC 15W PCB Mount TPP 15-109-D

Name: TRACOPOWER Switching Power Supply 9V DC 15W PCB Mount TPP 15-109-D
Brand: TRACOPOWER
SKU: 420658
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	15W
Efficiency	86%
Length	42mm
Model	TPP 15-109-D
Depth	21.5mm
Gross Weight	43g
Width	28.9mm
Mount Type	PCB
Series	TPP 15A-J
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	9V dc
SMPS Output Current	1.67A
Minimum Input Voltage	85V ac

Key Features

High efficiency of up to 86% for energy saving and low heat generation.
Wide operating temperature range from -40°C to 85°C supports harsh environments.
Reinforced double I/O isolation and low earth leakage current suitable for body floating applications.
Compact dimensions (42mm x 28.9mm x 21.5mm) enable easy PCB integration.
Single output channel delivering 1.67A output current at 9V DC.
Conforms to multiple safety standards including IEC 60601-1, EN 60601-1, UL 62368-1.
Designed for input voltage range of 85V AC to 264V AC ensuring global compatibility.
Encapsulated high power density design operating up to 5000m altitude.

Product Description

TRACOPOWER TPP 15-109-D is a high-performance switching power supply offering 9V DC output with a maximum power rating of 15W. It features a PCB mount design optimized for industrial and electronic applications requiring stable and efficient power delivery.

The power supply operates effectively over a wide temperature range from -40°C to 85°C, making it suitable for demanding environments in industrial machinery, medical devices, and control systems. It supports input voltages from 85V AC up to 264V AC, enabling operation in varied global power conditions.

The reinforced double input/output isolation system provides enhanced safety with earth leakage current below 75 microamperes, allowing use in sensitive applications including body floating (BF) classifications. The power supply complies with international standards such as ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1, and UL 62368-1 ensuring safety and reliability.

Compact and encapsulated design with dimensions of 42mm length, 28.9mm width, and 21.5mm depth provides excellent power density appropriate for space-constrained applications. It delivers a regulated output current of 1.67A at 9V DC, suitable for a wide range of embedded systems, communications equipment, and industrial controls.

High efficiency power conversion reduces energy loss and heat generation. Wide operating temperature and altitude support industrial reliability standards. Encapsulated construction protects components and enhances durability.

Single output channel provides steady current for sensitive electronics. Multiple certifications guarantee safety in medical and industrial environments.

This TRACOPOWER switching power supply is ideal for applications in industrial machines, medical instrumentation, HVAC controls, telecommunications, and embedded systems where compact, efficient, and safe power solutions are critical. Incorporate this power supply to ensure reliable and compliant performance in your electrical designs.
