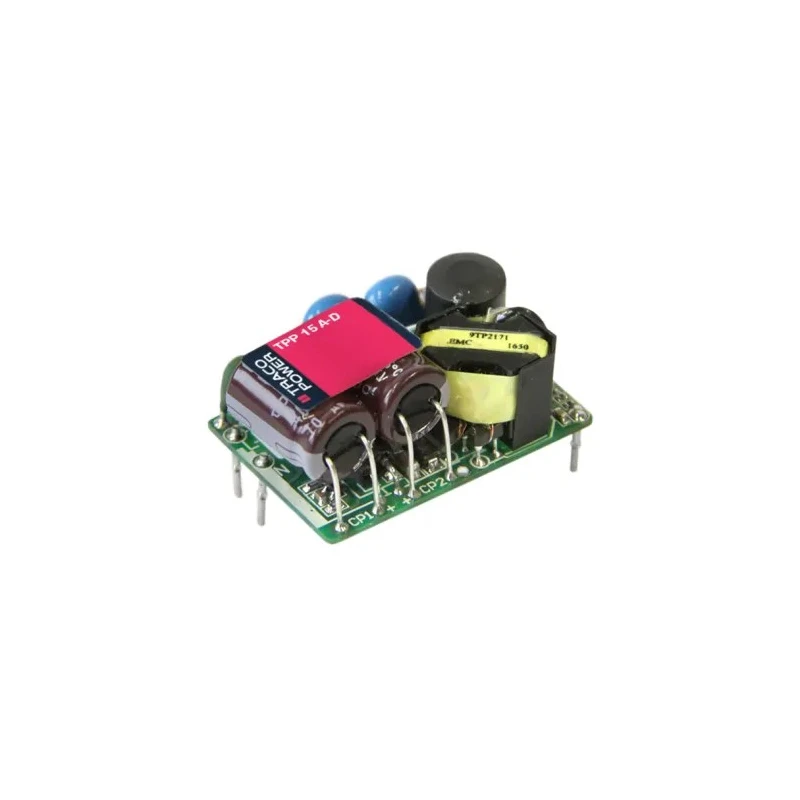

TRACOPOWER Switching Power Supply 48V 15W PCB Mount High Efficiency 89% TPP 15-148A-D

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 48V 15W PCB Mount High Efficiency 89% TPP 15-148A-D

Name: TRACOPOWER Switching Power Supply 48V 15W PCB Mount High Efficiency 89% TPP 15-148A-D
Brand: TRACOPOWER
SKU: 420636
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	15W
Efficiency	89%
Length	38.1mm
Model	TPP 15-148A-D
Depth	20.2mm
Gross Weight	16.5g
Width	25.4mm
Mount Type	PCB
Series	TPP 15A-J
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V
Maximum Output Voltage	48V
SMPS Output Current	313mA
Minimum Input Voltage	85V ac

Key Features

High efficiency of 89% ensures low energy losses during operation.
Compact size with dimensions 38.1mm (L) x 25.4mm (W) x 20.2mm (D) allows easy integration.
Wide operating temperature range from -40°C to 85°C with derating above 70°C.
Single output design providing a 313mA constant output current.
Robust input voltage range from 85V AC to 264V AC supports global applications.
Reinforced double I/O isolation suitable for body floating applications.
Low earth leakage current below 75 μA enhances safety compliance.
Standards compliant with ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, UL 62368-1, IEC 62368-1.

Product Description

TRACOPOWER TPP 15-148A-D switching power supply is a highly efficient, compact, and reliable power unit designed for PCB mounting applications. Providing a stable 48V output with 15W power rating, it supports a wide AC input voltage range from 85V to 264V, making it suitable for use worldwide in diverse industrial and medical environments.

The device features a reinforced double isolation system to minimize earth leakage current below 75 μA, qualifying it for body floating (BF) applications where patient safety is critical. The unit operates efficiently up to 89%, ensuring reduced energy losses and heat generation.

Its compact dimensions (38.1mm length, 25.4mm width, 20.2mm depth) and light weight (16.5 grams) make it ideal for tight PCB space requirements in instrumentation, medical equipment, and embedded systems installations.

The power supply has a broad operating temperature range from -40°C to +70°C at full load, with capability to operate up to 85°C at 50% load derating, supporting harsh industrial environments and altitude operation up to 5000 meters.

Certified to international safety and EMC standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, UL 62368-1, and IEC 62368-1, this switching power supply ensures regulatory compliance for critical applications.

High efficiency of up to 89% and compact size for space-constrained designs. Wide input voltage range supports global deployment. Double isolation system with low earth leakage for enhanced safety. Lightweight and compact dimensions simplify PCB integration.

Broad operating temperature range suitable for harsh environments. Compliance with multiple international medical and industrial standards. Supports operation up to 5000m altitude for varied geographic use. 5 year warranty offers confidence in long-term reliability.

This switching power supply is ideally suited for use in industrial machinery, medical devices, laboratory equipment, telecommunications, and embedded control systems. Its robust design and certifications ensure safe and continuous operation in demanding applications.
