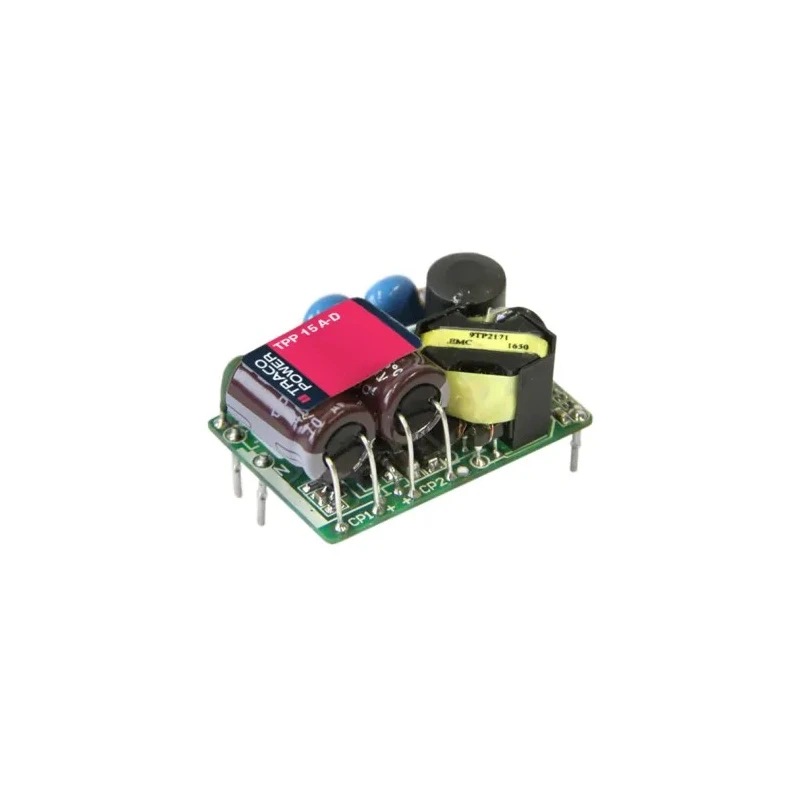

TRACOPOWER Switching Power Supply 9V DC, 15W, 1.67A Output, PCB Mount, Model TPP 15-109A-D

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 9V DC, 15W, 1.67A Output, PCB Mount, Model TPP 15-109A-D

Name: TRACOPOWER Switching Power Supply 9V DC, 15W, 1.67A Output, PCB Mount, Model TPP 15-109A-D
Brand: TRACOPOWER
SKU: 420633
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	15W
Efficiency	86%
Length	38.1mm
Model	TPP 15-109A-D
Depth	20.2mm
Gross Weight	16.5g
Width	25.4mm
Mount Type	PCB
Series	TPP 15A-J
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	9V dc
SMPS Output Current	1.67A
Minimum Input Voltage	85V ac

Key Features

Compact PCB mount switching power supply with 9V DC output voltage.
Supports a maximum output power of 15 watts and output current of 1.67 amps.
Wide operating temperature range from -40°C to 85°C for reliable performance.
High efficiency of 86% ensures reduced energy loss and heat generation.
Meets multiple international standards including ANSI/AAMI ES 60601-1 and UL 62368-1.
Low earth leakage current suitable for body floating (BF) applications.
Operating input voltage range from 85V AC to 264V AC for flexible use.
Lightweight design weighing only 16.5 grams for easy installation.

Product Description

TRACOPOWER TPP 15-109A-D is a versatile switching power supply designed for industrial and electronic applications requiring reliable 9V DC output with a power rating of 15 watts. It is engineered for PCB mounting, featuring a compact and lightweight form factor with dimensions of 38.1mm length, 25.4mm width, and 20.2mm depth, and weighing only 16.5 grams. This module provides a stable output current of 1.67A suitable for various control circuits and instrumentation.

The power supply operates over a broad temperature range from -40°C to 85°C, with efficiency reaching 86% to minimise energy consumption and heat dissipation. It accommodates an input voltage range from 85V AC to 264V AC, making it compatible with global power standards. Its reinforced double input-to-output isolation and low earth leakage current below 75 μA make it ideal for BF (Body Floating) applications, enhancing safety in medical and sensitive environments.

Certified to meet stringent international safety and performance standards such as ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1, this switching power supply ensures compliance with medical and industrial regulations. It is designed for high power density in a small package size and reliable operation up to 5000 meters above sea level.

Compact PCB mount power supply with robust double isolation. Suitable for industrial, laboratory, medical, and control system applications. High efficiency reduces energy costs and thermal load. Wide temperature and input voltage range increases operational flexibility.

Conforms to international safety and electromagnetic compatibility standards.

This TRACOPOWER switching power supply model TPP 15-109A-D is a new product with an origin from Taiwan, Province Of China. It offers dependable performance with a 5-year product warranty, suitable for power supply and distribution needs in electronics and electricals industries.
