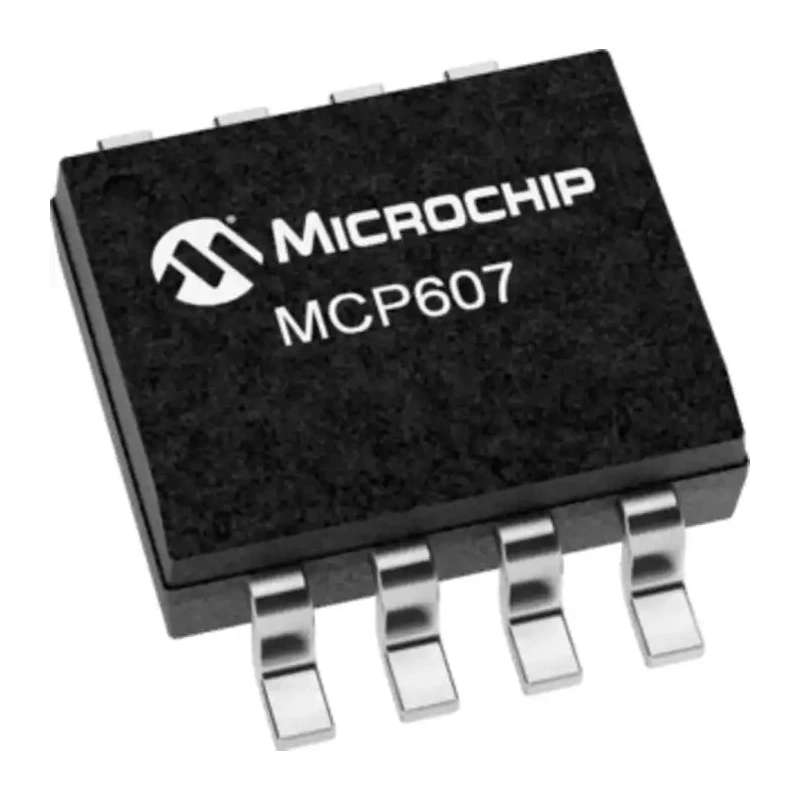

Microchip MCP607T-I/SN Operational Amplifier Dual Channel 155 kHz Gain Bandwidth 6V SOIC 8-Pin MCP607T-I/SN

Free Delivery in India | Lowest Global Shipping Charges

Microchip MCP607T-I/SN Operational Amplifier Dual Channel 155 kHz Gain Bandwidth 6V SOIC 8-Pin MCP607T-I/SN

Name: Microchip MCP607T-I/SN Operational Amplifier Dual Channel 155 kHz Gain Bandwidth 6V SOIC 8-Pin MCP607T-I/SN
Brand: Microchip
SKU: 420615
Price: 1.64 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.5mm
Length	4.9mm
Model	MCP607T-I/SN
Width	3.9mm
Mount Type	Surface
Series	MCP607
Output Current	30mA
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	2
Power Supply Voltage	2.5V to 6.0V
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Minimum Supply Voltage	2.5V
GBP - Gain Bandwidth Product	155kHz
Input Bias Current	80 pA
Slew Rate	0.08V/μs
Input Offset Current	1 pA
Low input bias current	1 pA (typ.)
Low Quiescent Current	25 μA (max.)

Key Features

Features dual operational amplifier channels in an 8-pin SOIC package.
Operates over a supply voltage range from 2.5 V to 6 V for versatile applications.
Low input offset voltage with a maximum of 250 μV ensures precision performance.
Provides low input bias current of approximately 1 picoampere typical.
Designed for low quiescent current consumption to enhance battery life.
Rail-to-rail output swing supports full voltage range output.
Operating temperature range from -40°C to 85°C suits industrial environments.
Complies with RoHS standards and automotive grade AEC-Q100.

Product Description

Microchip MCP607T-I/SN is a dual operational amplifier (op amp) featuring a gain bandwidth product of 155 kHz, designed with advanced CMOS technology. It operates at a supply voltage ranging from 2.5 V to 6 V, making it suitable for battery-powered and loop-powered applications. The device exhibits a low typical operating current of less than 25 μA per amplifier and a low input offset voltage under 250 μV, ensuring precise analog signal conditioning.

This amplifier provides rail-to-rail output swing enabling maximum voltage output range and features a very low input bias current of around 1 picoampere typical, making it ideal for high-impedance sensor interfaces and portable instrumentation.

Packaged in an 8-pin SOIC form factor, the MCP607T-I/SN is compatible with standard PCB assembly processes and is compliant with stringent automotive standard AEC-Q100 and RoHS directives, supporting industrial and automotive applications.

Typical use cases include industrial process control, low-power battery-operated devices, portable test equipment, data acquisition systems, and low-end audio electronics. Its robust operating temperature range from -40°C to 85°C enables reliable performance in harsh environments.

Dual channel design with 8-pin SOIC packaging. Gain bandwidth of 155 kHz with low offset voltage and bias currents. Wide supply voltage from 2.5 V to 6 V with low quiescent power consumption. Rail-to-rail output for enhanced voltage swing capability.

Meets RoHS and automotive AEC-Q100 quality standards.

Overall, the MCP607T-I/SN Operational Amplifier from Microchip is engineered for applications demanding low power, precise amplification, and industrial-grade reliability. Browse the wide range of semiconductor amplifiers at EnvMart for complementary components and design inspiration.
