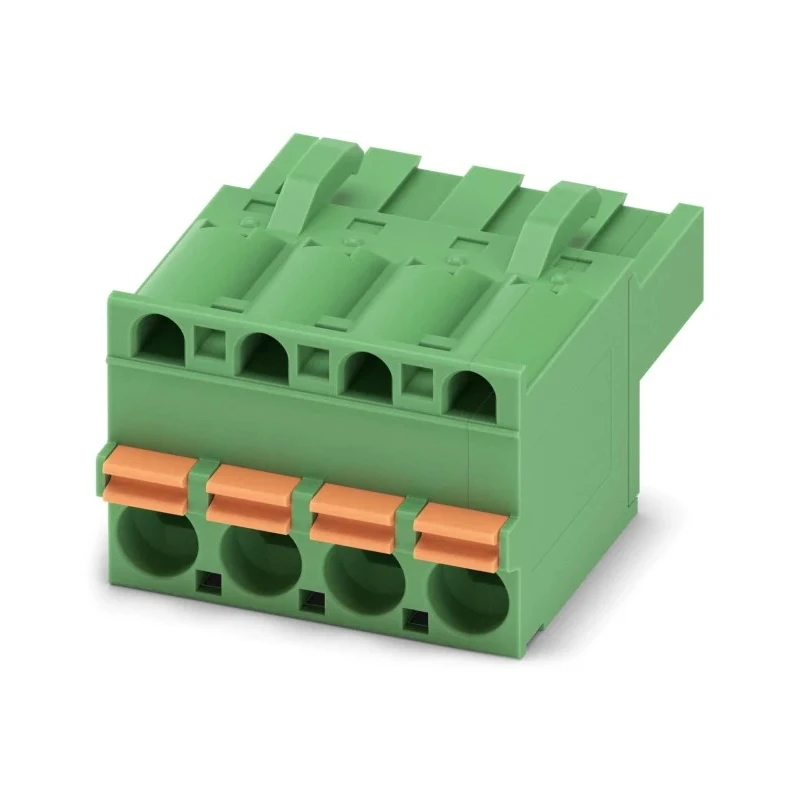

Phoenix Contact FKCT 2.5/4-ST-5.08 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 12 A Current, Green 1902136

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact FKCT 2.5/4-ST-5.08 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 12 A Current, Green 1902136

Name: Phoenix Contact FKCT 2.5/4-ST-5.08 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 12 A Current, Green 1902136
Brand: PHOENIX CONTACT
SKU: 420559
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	630V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	25.6mm
Model	1902136
Depth	15mm
Width	20.42mm
Housing Material	Polyamide
Series	FKCT 2.5/4-ST-5.08
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	RoHS
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw
PCB connector, nominal current	12 A, rated voltage (III/2): 320 V, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin

Key Features

Features a nominal current rating of 12 A for efficient power handling.
Includes 4 contact positions arranged in a single row for compact installation.
Constructed from durable green polyamide housing for long-lasting performance.
Supports wire sizes ranging from 0.2 mm² to 2.5 mm² and AWG 24 to AWG 12.
Equipped with screw-type wire connection method and a female connector gender.
Measures 25.6 mm in length, 20.42 mm in width, and 15 mm in depth, ensuring easy panel mounting.
Rated for a voltage of 630 V with compliance to RoHS standards.
Features a straight orientation suitable for PCB mounting applications.

Product Description

Phoenix Contact 1902136 FKCT 2.5/4-ST-5.08 Series Pluggable Terminal Block is a high-quality green PCB connector designed for industrial and electrical applications requiring reliable and secure electrical connections. It features 4 contact positions with a 5.08 mm pitch arranged in a single row, optimized for compact PCB layouts and panel assemblies.

Constructed with a polyamide housing, the terminal block offers excellent durability and insulation properties. It supports a nominal current of 12 A and a rated voltage of 630 V, making it ideal for control systems, automation, and power distribution in manufacturing, industrial automation, and electrical assembly environments.

The wire connection method is screw-based, accommodating wire sizes from 0.2 mm² up to 2.5 mm² and AWG 24 to AWG 12, ensuring flexibility for various wiring requirements. The connector has a female gender and a straight orientation for straightforward PCB integration. The contact surface is tin-plated to provide corrosion resistance and secure electrical contact.

This terminal block complies with RoHS standards, supporting environmentally responsible production practices. The compact dimensions of 25.6 mm length, 20.42 mm width, and 15 mm depth facilitate installation in dense electronic assemblies.

Nominal current rating of 12 A for power reliability. 4 contact positions with 5.08 mm pitch for precise connections. Durable green polyamide housing for insulation and mechanical strength. Screw connection supports a broad range of wire sizes.

Straight orientation and female connector gender for flexible PCB mounting. RoHS compliant for environmental safety.

This Pluggable Terminal Block is an essential component for electrical engineering, industrial automation systems, manufacturing, and control panel design. It ensures optimal electrical connections while offering ease of installation and maintenance.
