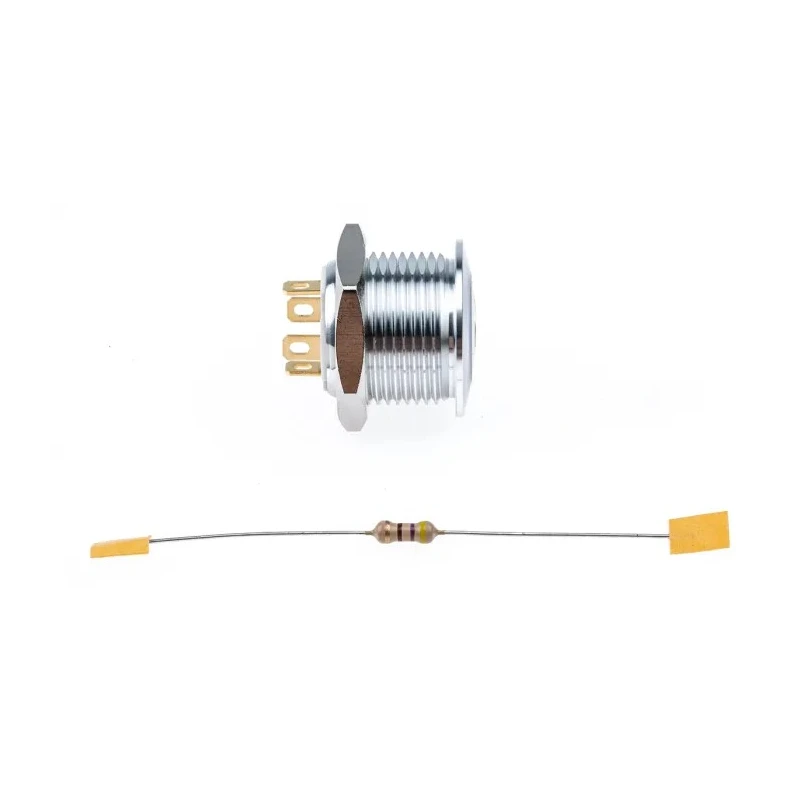

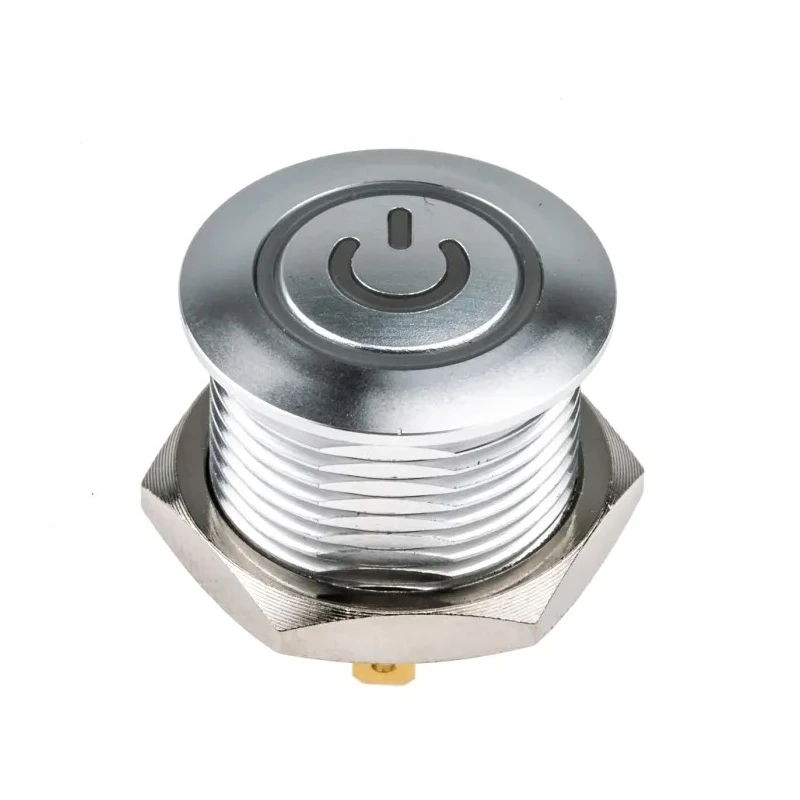

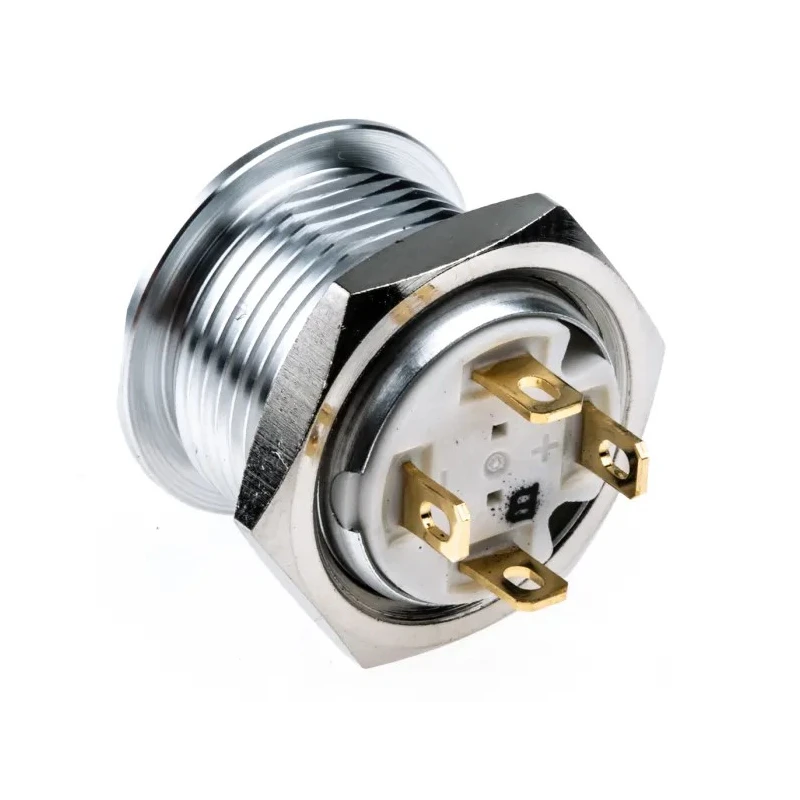

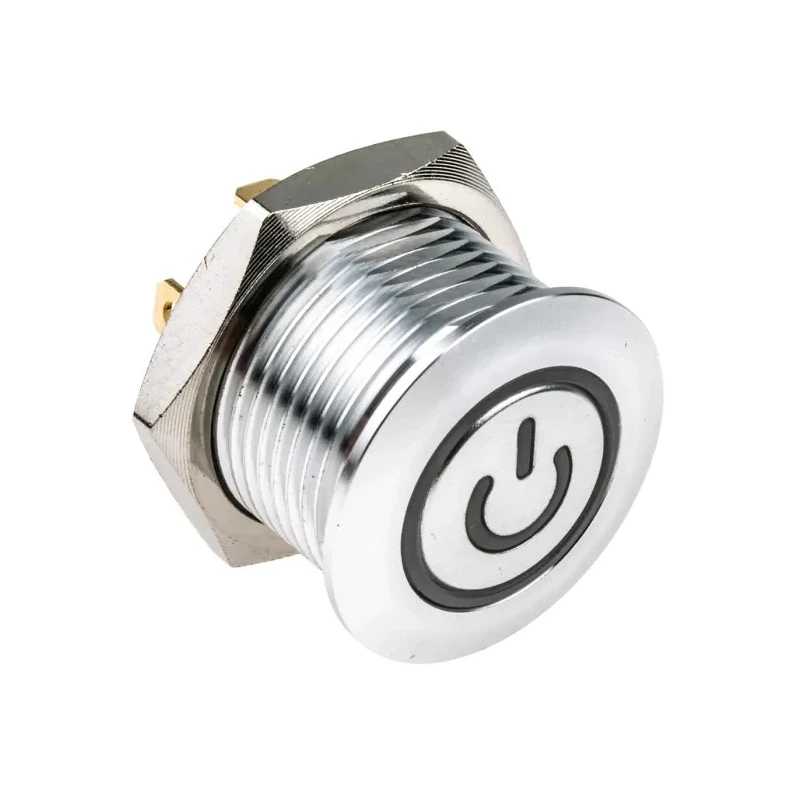

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST Blue LED IP67 36V dc 175-8735

Name: RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST Blue LED IP67 36V dc 175-8735
Brand: RS PRO
SKU: 420361
Price: 1699.66 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	175-8735
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Solder
Standards/Approvals	UL 94 V-0, UL 94 V-2
LED Colour	Blue
Switch Operation	Momentary
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	2A
Legend	Power Symbol

Key Features

The switch operates momentarily with a single-pole single-throw (SPST) contact configuration.
It is equipped with a blue LED for clear illumination and indication.
The panel cutout size is 16 mm suitable for standard industrial panels.
The switch is IP67 rated, ensuring dust tightness and water resistance.
It supports a contact DC voltage of 36 V dc and a contact current of 2 A.
Constructed with a round actuator style for easy operation and vandal resistance.
Designed to operate within a temperature range of -20°C to 70°C.
Complies with the standards UL 94 V-0 and UL 94 V-2 for safety and material flammability.

Product Description

RS PRO 175-8735 Illuminated Push Button Switch is a momentary panel mount push button switch featuring a 16 mm cutout, SPST contact configuration, and blue LED illumination, operating at 36 V dc with a 2 A contact current rating. This switch is engineered for industrial and commercial use, offering reliable performance in demanding environments.

The switch is IP67 rated, providing excellent protection against dust ingress and water exposure, making it suitable for vandal-resistant applications in public or harsh settings. Its round actuator style allows for intuitive and ergonomic operation, while the blue LED indicator ensures clear visual status feedback.

Designed to work efficiently within a temperature range of -20°C to 70°C, the RS PRO Push Button Switch complies with UL 94 V-0 and UL 94 V-2 material standards, enhancing safety and durability in various industrial control instruments, medical equipment, security monitoring setups, vehicle peripherals, audio-visual systems, and energy storage solutions.

This push button switch is constructed with corrosion-resistant materials and offers easy heat dissipation, combining lightweight design and high strength. It is part of the RS PRO series, known for its long life expectancy and sealed protection.

The switch operation is momentary to provide temporary circuit activation. Illumination via the blue LED enhances visibility and status indication. Panel mount design with a 16 mm cutout facilitates easy installation and integration.

IP67 rating ensures the switch is dust tight and protected against water jets. Supports contact DC voltage up to 36 V dc and contact current of 2 A. Operating temperature range from -20°C to 70°C allows use in diverse environments.

Complies with UL standards for flame retardancy and safety. Suitable for use in industrial, medical, security, automotive, and energy sectors.

Manufactured in Taiwan, this product exemplifies high quality and reliability expectations. Explore more from RS PRO and similar Push Button Switches available with diverse specifications on EnvMart for your industrial, laboratory, or commercial automation needs.
