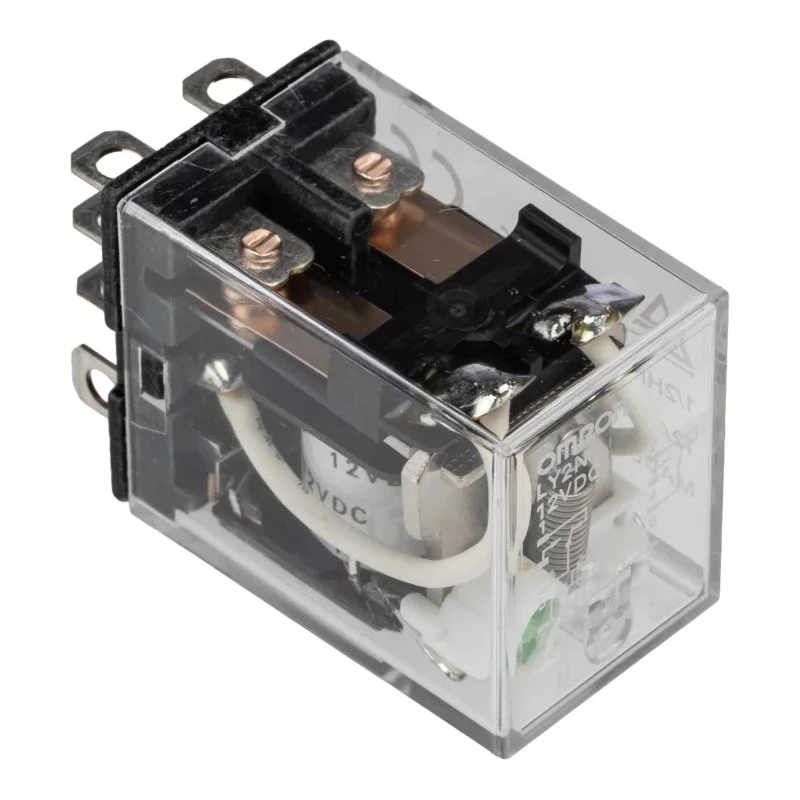

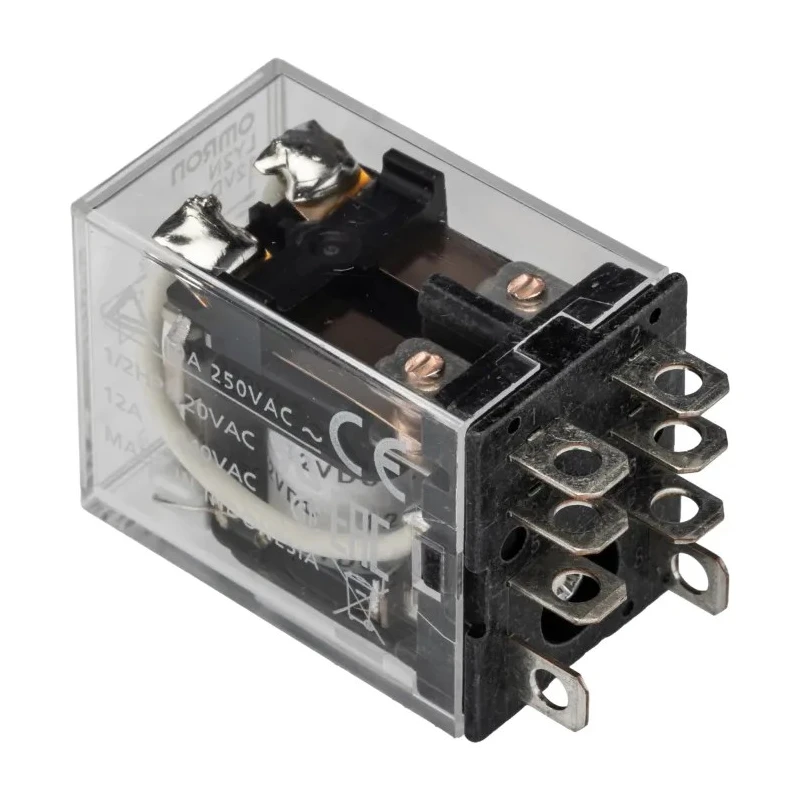

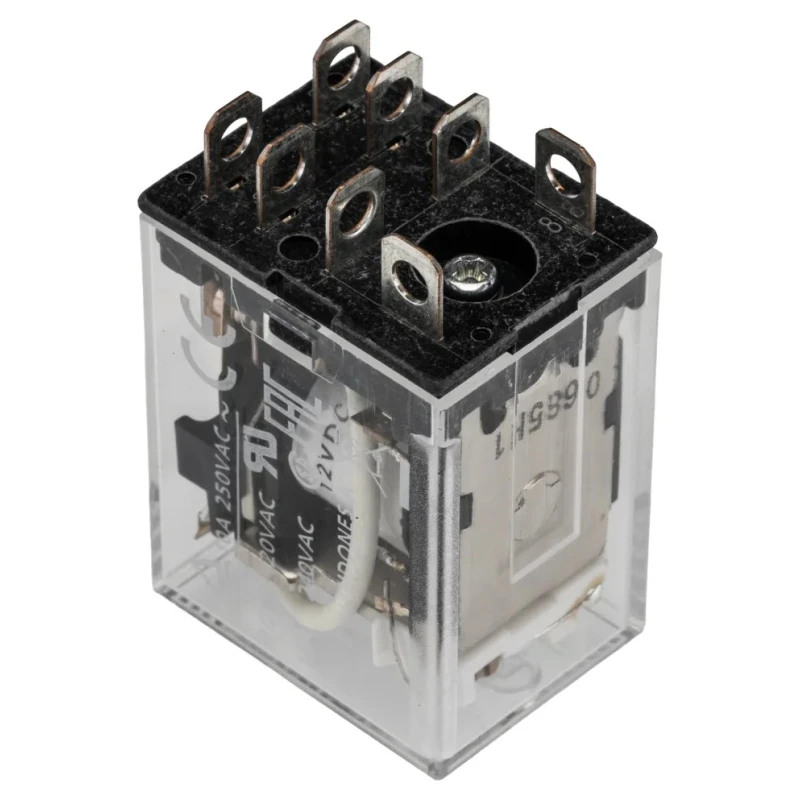

Omron Power Relay 12V DC Coil 10A Switching Current DPDT Contact Configuration LY2N 12VDC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | LY2N 12VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY2N |
| Maximum Operating Temperature | 40°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 900mW |
| Switching Power | 240W |
Key Features
- Features a double pole double throw (DPDT) contact configuration for versatile switching.
- Operates with a 12V DC coil voltage ensuring compatibility with standard control systems.
- Capable of switching currents up to 10 amperes for reliable power handling.
- Compact design with dimensions 21.5mm length, 36mm width, and 28mm height for easy integration.
- Equipped with a built-in diode for surge voltage protection to enhance coil longevity.
- Designed to operate in wide ambient temperature range from -25°C to +40°C.
- Constructed with silver alloy contact material to ensure low contact resistance of 50mΩ.
- Plug-in terminal type simplifies installation and maintenance.
Product Description
Omron LY2N 12VDC Power Relay is a robust, general-purpose power relay featuring a double pole double throw (DPDT) contact configuration with a 12V DC coil voltage and 10A maximum switching current. It is engineered to provide high endurance and long mechanical and electrical life, supporting up to 100 million mechanical operations and 500,000 electrical operations respectively.
This compact relay, with dimensions of 21.5mm length, 36mm width, and 28mm height, is socket mounted for ease of replacement and installation in various electrical and automation systems. The relay utilizes a silver alloy contact material, ensuring high conductivity and low contact resistance of 50mΩ. Its coil resistance is rated at 160Ω with coil power consumption of 900mW.
Designed for versatile applications, it can handle switching powers of up to 240W with switching DC and AC voltages of 125V each. The built-in diode protects against voltage surges, thus avoiding potential coil damage and extending device lifespan. Operating reliably within temperatures ranging from -25°C to +40°C, it suits environments found in industrial automation and HVAC control systems.
Typical applications of the Omron LY2N 12VDC relay include automation control, electrical panel power distribution, industrial machinery switching, lighting control circuits, and HVAC equipment. Its compliance with CSA and CE standards underlines its safety and quality certifications.
The relay’s plug-in terminal type promotes simplified wiring and reduced installation time, making it a practical choice for maintenance and upgrade projects within laboratories, manufacturing plants, commercial facilities, and other industrial settings.
Features a double pole double throw (DPDT) contact configuration for versatile switching. Operates with a 12V DC coil voltage ensuring compatibility with standard control systems. Capable of switching currents up to 10 amperes for reliable power handling.
Compact design with dimensions 21.5mm length, 36mm width, and 28mm height for easy integration. Equipped with a built-in diode for surge voltage protection to enhance coil longevity. Designed to operate in wide ambient temperature range from -25°C to +40°C.
Constructed with silver alloy contact material to ensure low contact resistance of 50mΩ. Plug-in terminal type simplifies installation and maintenance. Suitable for control, automation, power distribution, HVAC, lighting controls, and industrial machinery applications.
Explore the Electronics & Electricals category on EnvMart to find more Power Relays and related control devices from trusted brands like Omron.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
It is capable of switching currents up to 10 amperes, making it suitable for various power handling tasks.
The relay operates with a coil voltage of 12V DC, ensuring compatibility with standard control systems.
The compact design measures 21.5mm in length, 36mm in width, and 28mm in height, facilitating easy integration into various setups.
It is constructed with silver alloy contact material, which ensures low contact resistance of 50mΩ for efficient operation.
It is designed to operate reliably within a temperature range of -25°C to +40°C, suitable for various environments.
The relay features a plug-in terminal type, which simplifies installation and maintenance processes.
It complies with CSA and CE standards, ensuring safety and quality in its applications.
The coil resistance is rated at 160Ω, with a coil power consumption of 900mW.
It can handle switching powers of up to 240W, supporting both AC and DC voltages of 125V each.
This relay is suitable for automation control, electrical panel power distribution, industrial machinery switching, and HVAC equipment.
It supports up to 100 million mechanical operations and 500,000 electrical operations, indicating its high endurance.
