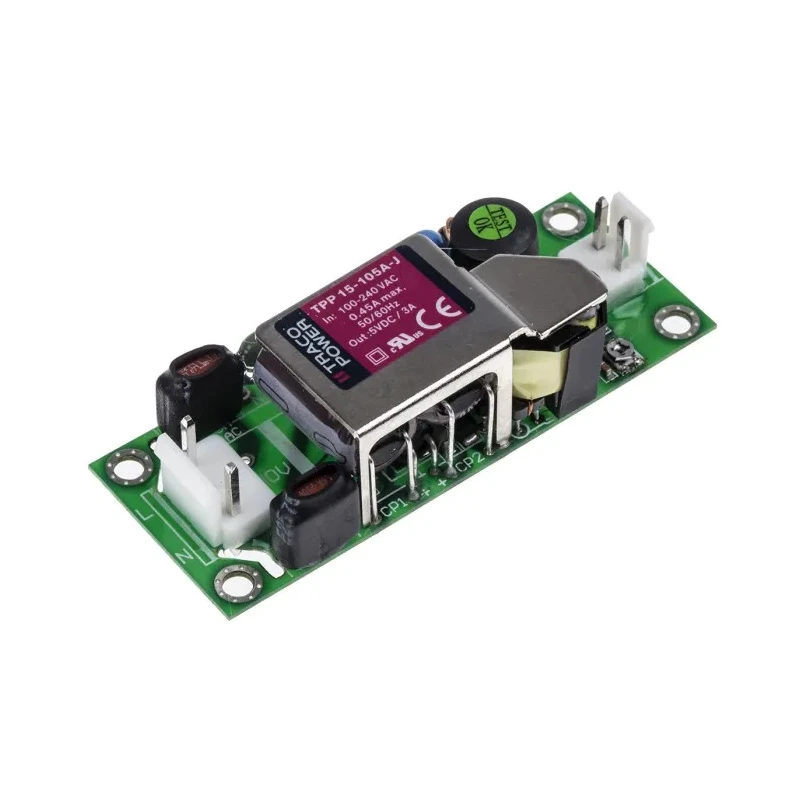

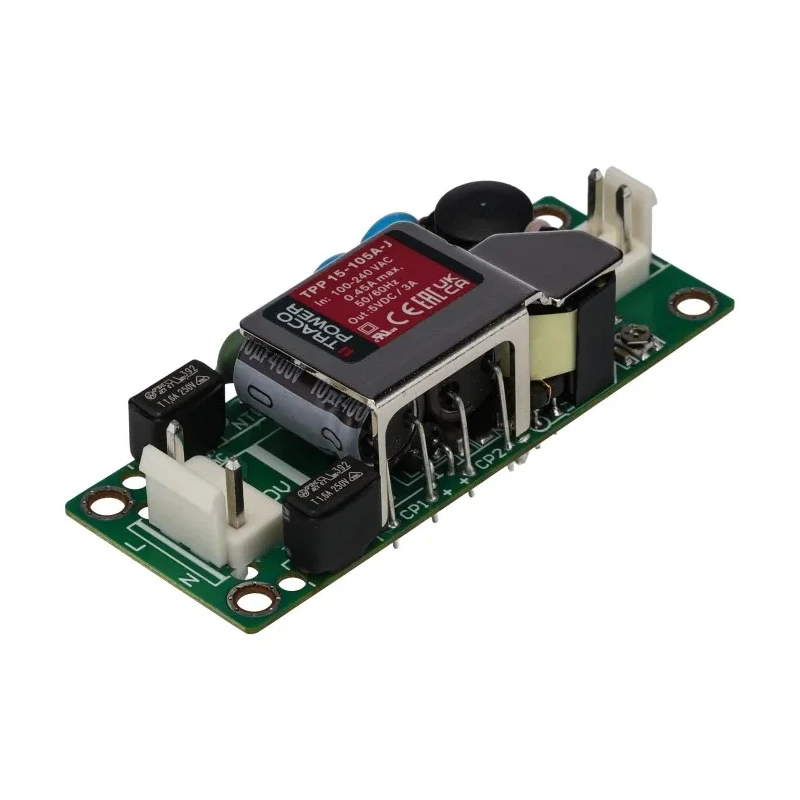

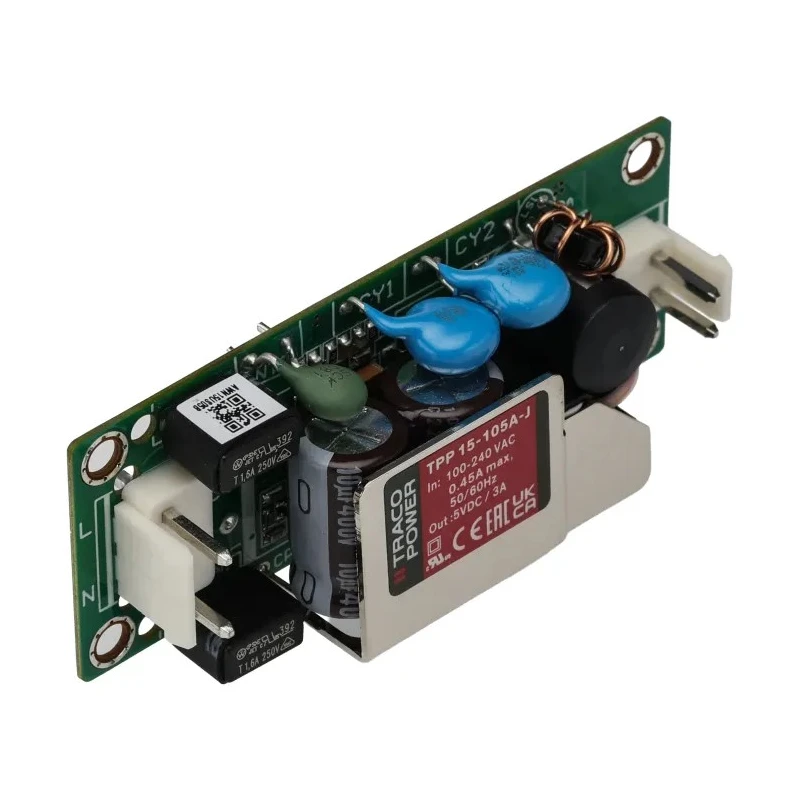

TRACOPOWER Switching Power Supply 5V DC 15W 264V AC TPP 15-105A-J

TRACOPOWER TPP 15-105A-J Switching Power Supply is engineered for reliable, efficient low-voltage DC power delivery. With a compact chassis mount design measuring 66.2mm in length, 25.4mm in width, and 19.1mm depth, it fits easily into constrained spaces. The unit accepts a broad input voltage range from 85V to 264V AC with minimum input voltage at 85V AC and maximum at 264V AC, making it suitable for global voltage variations.

This model features a single output delivering 5V DC at a current of 3A, powering light-duty electronic applications requiring up to 15 watts. Its operating temperature range from -40°C to +85°C ensures dependable performance in harsh environments. The power supply is cooled by natural convection, eliminating additional cooling components and reducing system complexity.

Safety is paramount with reinforced double input/output isolation and a low leakage current of 75 microamps, making the device appropriate for medical applications that come into direct contact with patients. The power supply complies with major safety and electromagnetic compatibility standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1 certifications.

Its efficiency rating of 86% (Energy Efficiency Level III) ensures minimal heat loss and energy waste. The lightweight and compact profile at just 19 grams supports flexible integration into aerospace instruments, X-ray machines, research laboratories, and other precision industrial devices.

Compact switching power supply rated for 15 watts. Stable 5V DC output suitable for low-voltage components. Wide operating temperature range from -40°C to 85°C for reliability. Reinforced double I/O isolation ensures enhanced safety.

Natural convection cooling without need for heat sink. Low maximum leakage current of 75μA, ideal for sensitive applications. Compliance with multiple international safety standards including UL and IEC. Lightweight design weighing only 19 grams.

Suitable for medical, aerospace, and research laboratory equipment.

This switching power supply from TRACOPOWER combines reliability, safety, and efficiency, ideal for industrial, laboratory, aerospace, and medical device power requirements. Discover more precision power electronics and industrial solutions with EnvMart.
