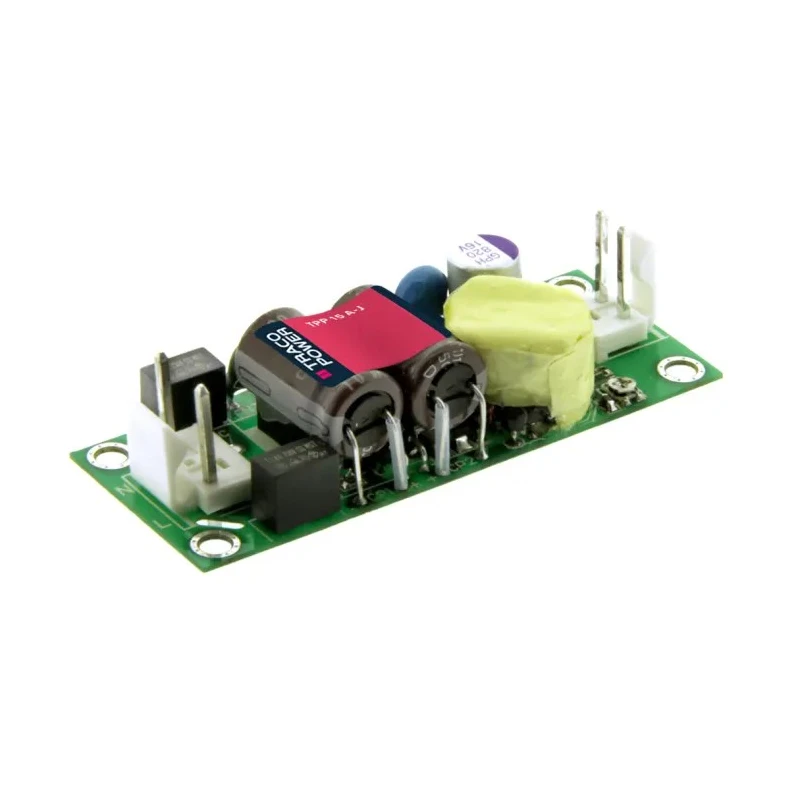

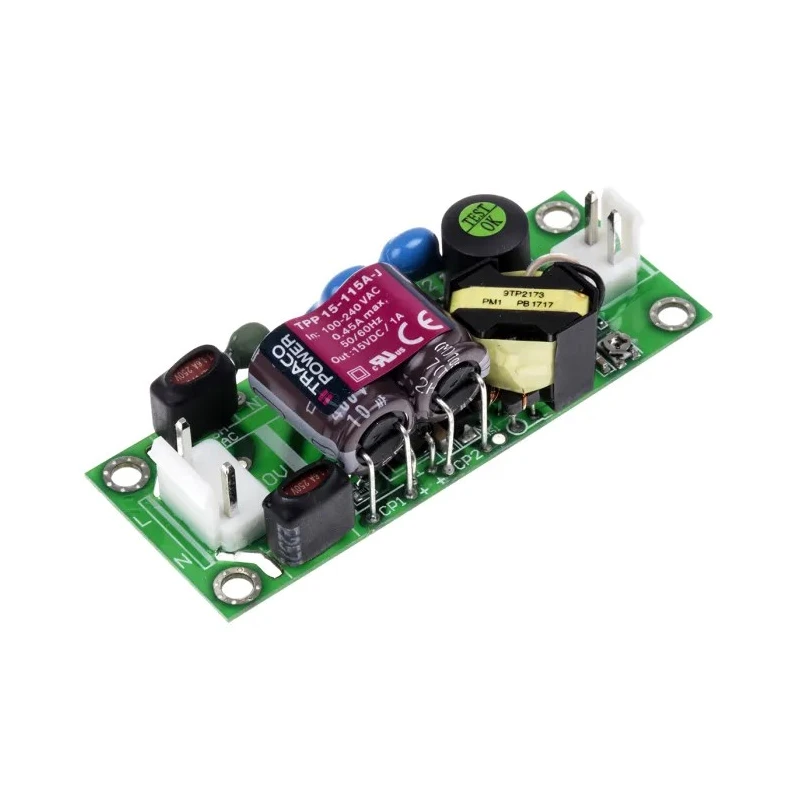

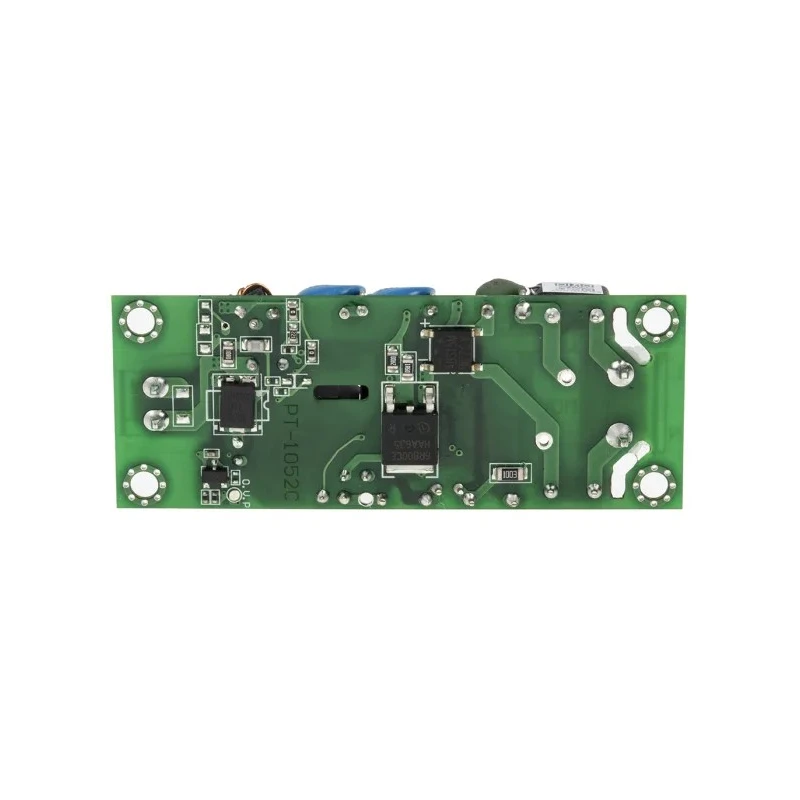

TRACOPOWER Switching Power Supply 15V, 15W, Chassis Mount, 1A Output Current, TPP 15-115A-J

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 15V, 15W, Chassis Mount, 1A Output Current, TPP 15-115A-J

Name: TRACOPOWER Switching Power Supply 15V, 15W, Chassis Mount, 1A Output Current, TPP 15-115A-J
Brand: TRACOPOWER
SKU: 419505
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	15W
Efficiency	87%
Length	66.2mm
Model	TPP 15-115A-J
Depth	15.7mm
Gross Weight	19g
Width	25.4mm
Mount Type	Chassis
Series	TPP 15A-J
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V
Maximum Output Voltage	15V
SMPS Output Current	1A
Minimum Input Voltage	85V ac
Energy Efficiency Level	III

Key Features

Chassis mount design ensures secure installation and ease of integration.
Operates efficiently up to 87%, reducing energy loss and heat generation.
Wide operating temperature range from -40°C to 85°C supports harsh environments.
Certified to medical safety standards IEC/EN/ES 60601-1 3rd edition for enhanced protection.
Low earth leakage current below 75 μA makes it suitable for BF (body floating) applications.
Reinforced double I/O isolation system provides 2 x MOPP for safety in medical equipment.
Input voltage range supports 85V AC minimum up to 264V AC maximum for global compatibility.

Product Description

TRACOPOWER TPP 15-115A-J Switching Power Supply is designed for industrial and medical applications requiring a reliable 15V DC output at 15W power capacity. It features a robust chassis mount construction and meets stringent medical safety standards including IEC/EN/ES 60601-1 3rd edition certification for 2 x MOPP insulation, ensuring patient and operator safety.

This power supply operates over a wide input voltage range of 85V AC to 264V AC, supporting global power standards. It maintains an energy efficiency of up to 87% which contributes to reduced energy consumption and lower operational costs.

The unit tolerates ambient temperatures ranging from -40°C to 85°C, allowing it to function reliably in varied environments, including industrial, laboratory, and medical equipment settings. Its earth leakage current stays below 75 μA, making it suitable for BF (body floating) application classes.

Measuring just 66.2mm in length, 25.4mm in width, and 15.7mm in depth, and weighing only 19 grams, it provides high power density in a compact form factor. The reinforced double I/O isolation system guarantees safe galvanic separation between input and output.

Chassis mount type ensures ease of installation within equipment racks and enclosures. Certified for ANSI/AAMI ES 60601-1, UL 62368-1, IEC 62368-1, IEC 60601-1, EN 62368-1, EN 60601-1 standards. Efficiency and low leakage current are optimized for sensitive medical and industrial use cases.

Ideal for applications in medical devices, industrial automation, laboratory equipment, and HVAC control systems. Compact size and light weight streamline integration into space-constrained designs.

The TRACOPOWER TPP 15-115A-J is a premium switching power supply that balances efficiency, safety, and compactness, making it a dependable power source in demanding environments. Browse EnvMart's comprehensive range of switching power supplies for further selections tailored to your electrical power needs.
