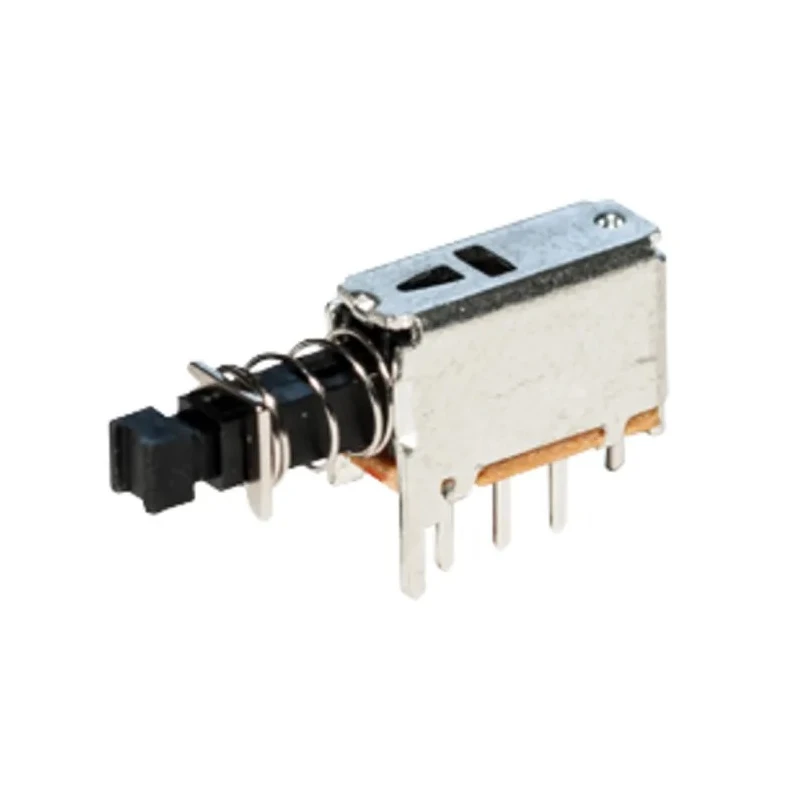

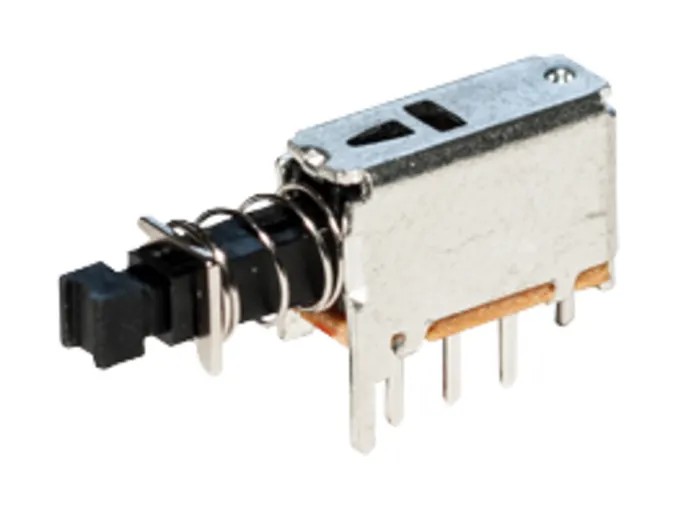

C & K PN Series Push Button Switch Latching Through Hole SPDT 30 V dc PN12SHNA03QE

The C & K PN12SHNA03QE is a high-quality push button switch from the PN Series, engineered for industrial, commercial, and electronic application use where precision and durability are essential. This latching switch offers a single pole double throw (SPDT) contact configuration that supports 30 V dc voltage and up to 200 mA contact current, suitable for low power switching tasks within instruments, computers, and peripherals, and measurement equipment.

This component is crafted to mount through hole, providing stable integration into printed circuit boards. It features a white push button actuator with a 2.8 mm square tip for tactile feedback and ease of operation. The switch operates within a temperature range from -10°C to 60°C, ensuring reliable performance in various conditions.

C & K has designed this switch with phosphor bronze contact material that assures excellent electrical conductivity and longevity. The switch is non-illuminated and uses solder lug terminals for secure and lasting electrical connections. Compliance with ENEC, RoHS, and UL certifications confirms its quality and adherence to safety and environmental standards.

Applications of this switch include use in instrumentation, measurement devices, computer peripherals, and general on/off low power switching within automation systems. This switch is optimized for non-power switching applications requiring reliable contact and mechanical life.

The actuator color is white for easy distinction and visibility. Latching operation provides reliable contact retention without continuous pressure. Through hole mount type ensures mechanical strength and ease of PCB assembly.

Certified to ENEC, RoHS, and UL standards, aligning with industry compliance requirements. The switch terminal type is solder lug for secure and stable wire attachment. Designed for safe operation between -10°C and 60°C ambient temperatures.

Phosphor bronze contacts offer durability and consistent electrical performance. Single pole double throw (SPDT) contact configuration expands versatility for circuit designs.

This C & K Push Button Switch is an ideal choice for electronics manufacturing, industrial control panels, instrumentation, and computing equipment that require low voltage latching switches. It provides reliable function, safety certification, and easy installation to meet demanding industrial and commercial needs.
