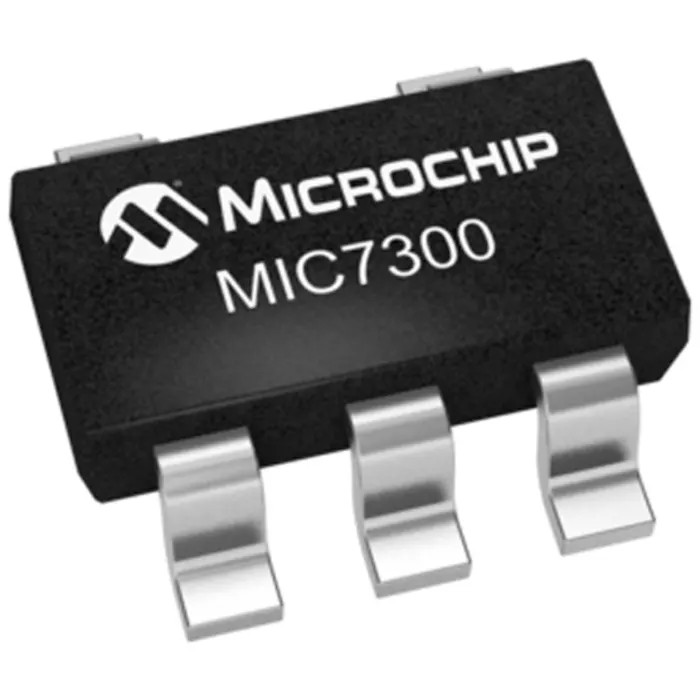

Microchip MIC7300YM5-TR Operational Amplifier, 5-Pin SOT-23, 550 kHz, 2.2-10V Supply, 40mA Output Current MIC7300YM5-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.02mm |
| Model | MIC7300YM5-TR |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | MIC7300 |
| Output Current | 40mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 10V |
| Minimum Supply Voltage | 2.2V |
| GBP - Gain Bandwidth Product | 550kHz |
| Input Bias Current | 0.5 pA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 0.25 pA |
| MIC7300YM5 TR Micrel, Op Amp, 400kHz, 3 → 9 V, 5-Pin SOT-23Brand | Micrel |
Key Features
- Features a single channel amplifier for precision applications.
- Designed for surface mounting with a compact SOT-23 package.
- Operates reliably across a temperature range of -40°C to 85°C.
- Offers a slew rate of 0.5 V/μs and low input bias current of 0.5 pA.
- Integrated output current capability of 40 mA suitable for varied loads.
- Input offset voltage is maintained at 9 mV for consistent performance.
- RoHS compliant, ensuring environmental safety and standards.
Product Description
Microchip MIC7300YM5-TR is a high-performance operational amplifier designed for semiconductor applications, delivering precise gain and high bandwidth at 550 kHz. Packaged in a 5-pin SOT-23 surface mount package, it offers a maximum supply voltage of 10 volts and operates within a temperature range of -40 to 85 degrees Celsius.
The device ensures low input bias current of 0.5 picoamperes and an input offset voltage of 9 millivolts, suitable for sensitive measurement and amplification tasks. Its slew rate of 0.5 V/μs allows it to respond quickly to input changes, while an output current of up to 40 mA enables driving moderate loads.
With compact physical dimensions of 3.02 mm length, 1.75 mm width, and 1.3 mm height, this amplifier is ideal for space-constrained PCB layouts in industrial, electronics manufacturing, instrumentation, and communication devices.
Being RoHS compliant, the MIC7300YM5-TR meets environmental and safety standards demanded by modern electronic design and manufacturing processes. Single channel operational amplifier in a 5-pin surface mount SOT-23 package.
Gain bandwidth product of 550 kHz suitable for high-frequency applications. Wide supply voltage range from 2.2 V up to 10 V for versatile power configurations. Low input bias current and offset voltages enhance measurement accuracy.
Compact form factor for easy integration in dense circuit boards. Thermally stable across -40°C to 85°C operation range. Capable of delivering 40 mA output current for driving loads effectively. Complies with RoHS directive ensuring environmental safety.
This Operational Amplifier is widely used in industrial electronics, laboratory instrumentation, audio devices, automotive electronics (non-automotive certified), and general-purpose amplification requiring stable and accurate analog signal control.
Explore more Microchip semiconductor solutions and amplifiers on EnvMart for advanced electronic design applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 550 kHz, making it suitable for high-frequency applications.
The maximum supply voltage for the MIC7300YM5-TR is 10 volts, allowing for versatile power configurations.
It can deliver an output current of up to 40 mA, suitable for driving moderate loads.
This model operates reliably across a temperature range of -40°C to 85°C.
The input offset voltage is maintained at 9 mV, which contributes to consistent performance in sensitive applications.
The dimensions of this operational amplifier are 3.02 mm in length, 1.75 mm in width, and 1.3 mm in height.
The slew rate of the MIC7300YM5-TR is 0.5 V/μs, allowing it to respond quickly to input changes.
It features a low input bias current of 0.5 pA, enhancing measurement accuracy.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
It comes in a 5-pin SOT-23 surface mount package, which is compact for space-constrained applications.
This operational amplifier is widely used in industrial electronics, laboratory instrumentation, audio devices, and general-purpose amplification.
The input offset current is 0.25 pA, which is beneficial for precision applications.
