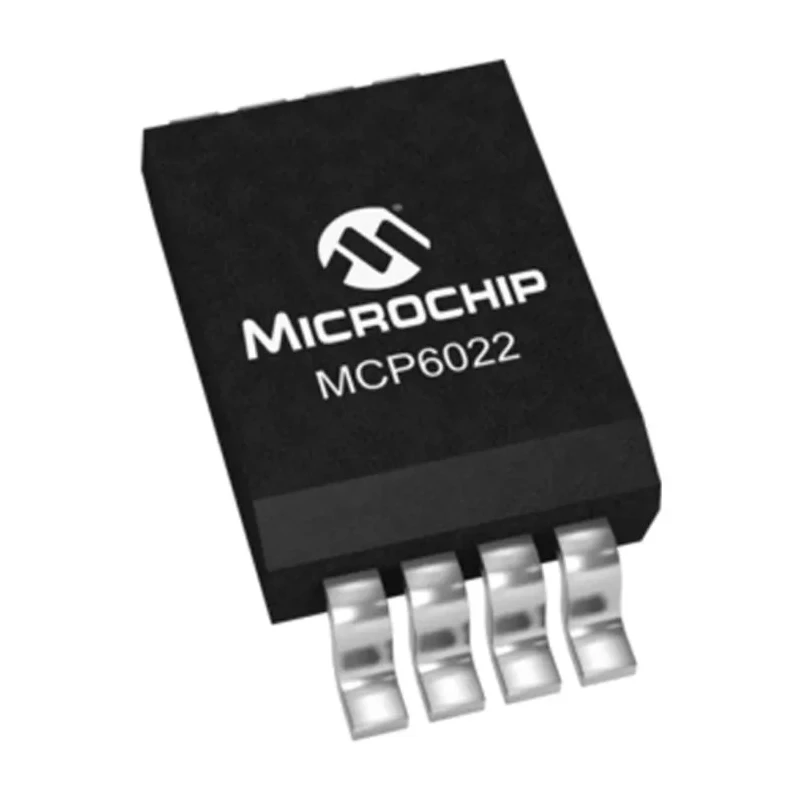

Microchip Operational Amplifier 10 MHz 8-Pin SOIC 3-5.5V Dual Channel MCP6022-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP6022-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6022 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
| MCP6022-E/SN Microchip, Operational Amplifier, 10 MHz, 8-Pin 5.5V SOICBrand | Microchip |
Key Features
- This operational amplifier delivers a 30mA output current suitable for a variety of signal conditioning tasks.
- The device operates over a temperature range of -40°C to 85°C for reliable industrial and commercial use.
- It features a very low input bias current of 1 pA to ensure high-precision signal amplification.
- The slew rate of 7 V/μs supports fast transient response in demanding circuits.
- The compact SOIC 8-pin package measures 4.9mm length, 3.9mm width, and 1.5mm height.
- Complies with RoHS standards, ensuring environmentally responsible manufacturing.
- The MCP6022 series is designed for surface-mount applications facilitating modern PCB designs.
- This amplifier is suitable for use in audio, sensor, and data acquisition systems requiring low noise and high linearity.
Product Description
Microchip MCP6022-I/SN is a dual-channel operational amplifier supplied in an 8-pin SOIC surface-mount package. It operates on a supply voltage range of 3 V to 5.5 V, making it ideal for low-voltage and battery-powered applications. The device's gain bandwidth product (GBP) of 10 MHz and slew rate of 7 V/μs enable accurate and fast amplification of analog signals in precision circuits.
Featuring an ultra-low input bias current of 1 pA, the amplifier ensures minimal signal distortion, making it suitable for sensor interface, audio amplification, and signal conditioning in industrial, laboratory, and consumer electronics.
With operating temperatures from -40°C to 85°C and RoHS compliance, the MCP6022-I/SN supports present-day industrial reliability and environmental standards. The compact SOIC 8-pin form factor (4.9 mm length, 3.9 mm width, and 1.5 mm height) allows for easy integration into densely populated PCBs.
The output current capability of 30 mA accommodates driving a variety of loads including analog circuits and buffers. This operational amplifier is an excellent choice for applications requiring dual channels with consistent and stable performance.
This operational amplifier delivers a 30mA output current suitable for a variety of signal conditioning tasks. The device operates over a temperature range of -40°C to 85°C for reliable industrial and commercial use. It features a very low input bias current of 1 pA to ensure high-precision signal amplification.
The slew rate of 7 V/μs supports fast transient response in demanding circuits. The compact SOIC 8-pin package measures 4.9mm length, 3.9mm width, and 1.5mm height. Complies with RoHS standards, ensuring environmentally responsible manufacturing.
The MCP6022 series is designed for surface-mount applications facilitating modern PCB designs. This amplifier is suitable for use in audio, sensor, and data acquisition systems requiring low noise and high linearity.
Microchip operational amplifiers are widely used in industrial, electronic design, instrumentation, and automotive sectors. Explore the Operational Amplifier category on EnvMart for more components from leading brands including Microchip.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of this operational amplifier is 10 MHz, allowing for effective amplification of analog signals in precision circuits.
It can deliver an output current of 30 mA, suitable for driving a variety of loads including analog circuits and buffers.
This model operates over a temperature range of -40°C to 85°C, making it suitable for industrial and commercial applications.
The device operates on a supply voltage range of 3 V to 5.5 V, which is ideal for low-voltage and battery-powered applications.
This operational amplifier features dual channels, allowing for versatile applications in various electronic designs.
It has a very low input bias current of 1 pA, which helps ensure high-precision signal amplification with minimal distortion.
The operational amplifier is housed in a compact SOIC 8-pin package measuring 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
The slew rate is 7 V/μs, which supports fast transient response in demanding circuits.
Yes, it complies with RoHS standards, ensuring environmentally responsible manufacturing practices.
It is designed for surface mounting, facilitating integration into modern PCB designs.
This operational amplifier is suitable for applications in audio, sensor interfaces, and data acquisition systems requiring low noise and high linearity.
The operational amplifier is manufactured in India.
