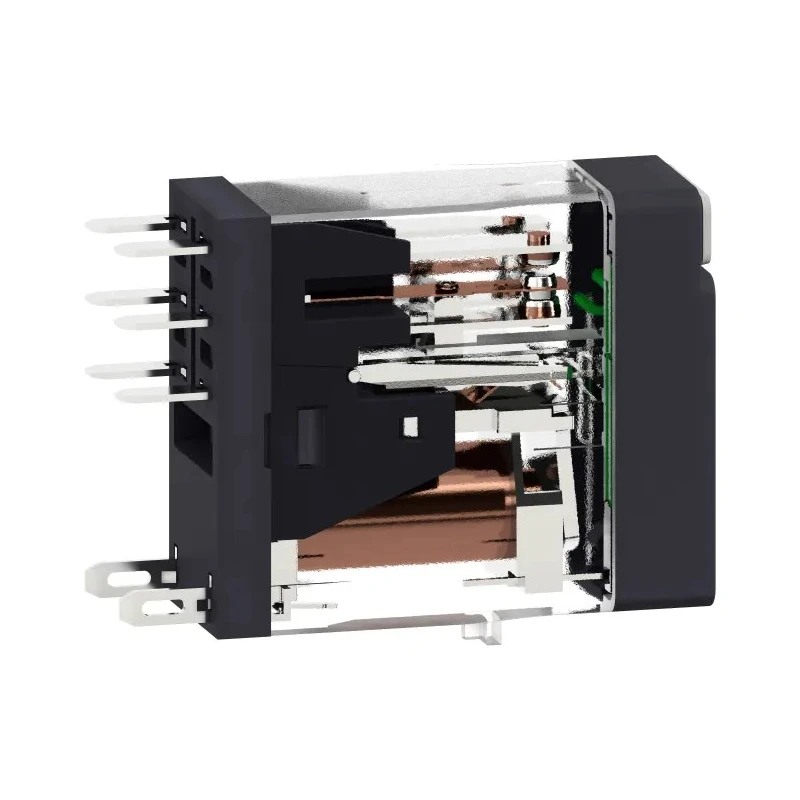

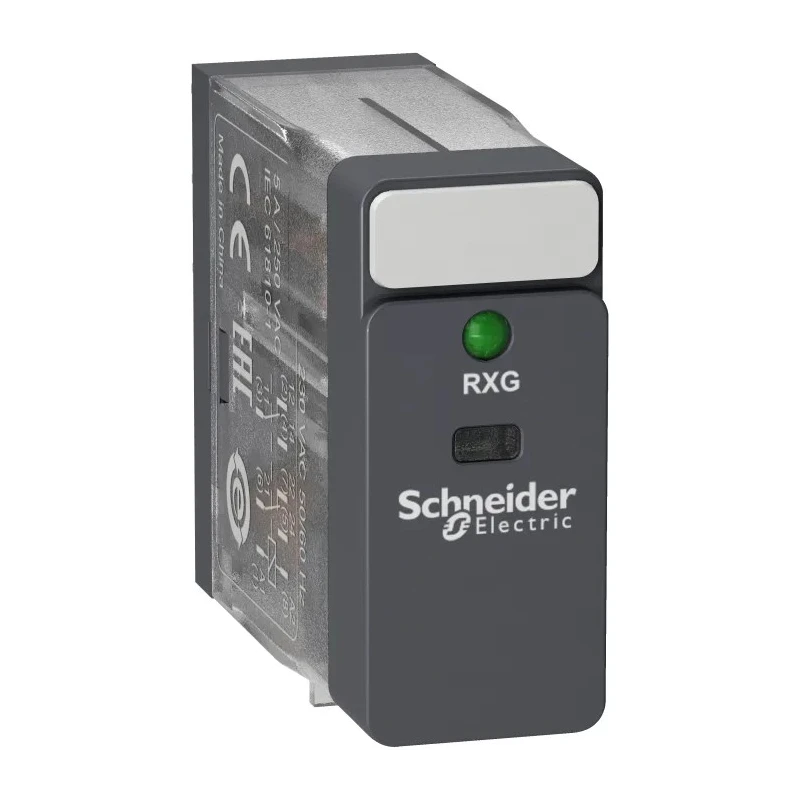

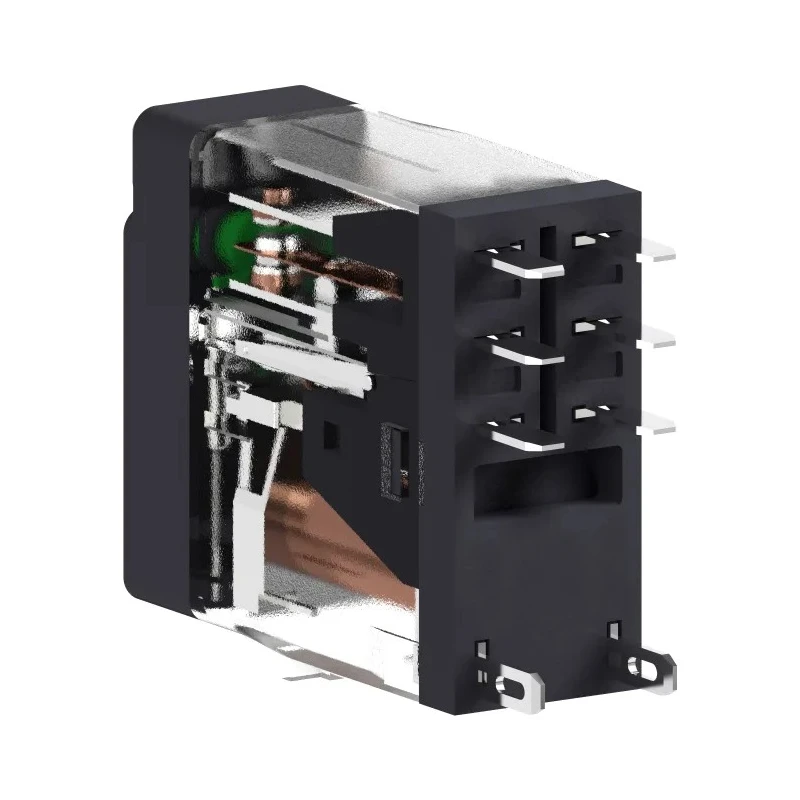

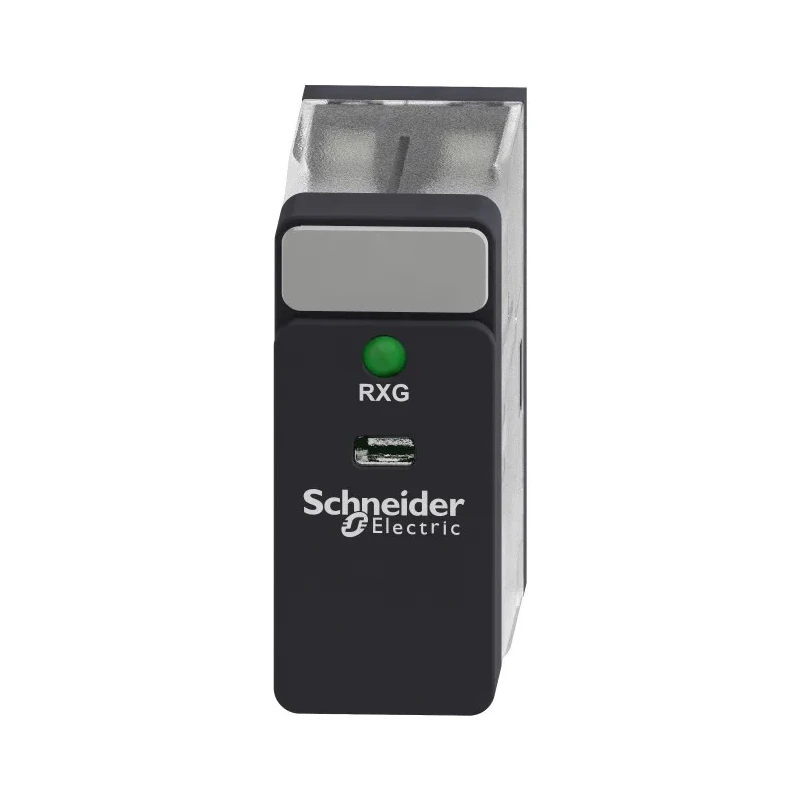

Schneider Electric Power Relay 24V AC Coil 5A Switching Current DPDT Harmony Relay RXG RXG23B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG23B7 |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 260Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 820mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Operates with a coil voltage of 24 volts AC for efficient control.
- Double Pole Double Throw (DPDT) contact configuration provides flexible switching.
- Maximum switching current rated at 5 amperes for diverse electrical loads.
- Coil resistance of 260 ohms and coil power consumption of 820 milliwatts ensure low power usage.
- Wide operating temperature range from -40°C to 70°C for harsh environments.
- Silver alloy contact material offers reliable and durable electrical conduction.
- Designed for disassembly supporting sustainability initiatives.
- Certified with CSA and CE standards to ensure safety and compliance.
Product Description
Schneider Electric RXG23B7 power relay features a 24V AC coil and a robust 5A switching current capability configured as DPDT, part of the Harmony Relay RXG series. This plug-in relay is engineered for reliable performance in industrial automation, electrical control panels, and PLC interface applications.
The compact relay measures 13mm in length, 30.6mm in width, and 37.1mm in height, making it suitable for installations where space optimization is important. It operates efficiently with a coil resistance of 260 ohms and consumes only 820 milliwatts of power.
Designed for demanding industrial environments, the relay supports a wide temperature range from -40°C minimum to 70°C maximum operational temperature. The silver alloy contacts provide excellent conductivity and durability, ensuring a long service life. It can switch AC voltages up to 250V and DC voltages up to 30V, handling switching power up to 1.3 kVA.
This relay complies with CSA and CE standards, guaranteeing safety and as well as quality assurance. It is also designed for disassembly, supporting sustainability efforts. The relay's plug-in terminal type facilitates easy installation and maintenance, with features like plastic maintaining clamps and compatibility with sockets that include diode, LED, and RC circuit protection modules.
Schneider Electric RXG23B7 Power Relay is ideally deployed in industrial automation, manufacturing equipment, HVAC systems, and other commercial electrical control applications requiring reliable switching and interface functions.
Operates efficiently at 24V AC coil voltage. DPDT contact configuration for versatile switching. 5A switching current suitable for a range of electrical loads. Compact form factor aids in space-saving panel designs. Wide temperature range ensures stable operation in harsh conditions.
Silver alloy contacts provide durability and strong conductivity. Meets industry standards CSA and CE for safety compliance. Designed for disassembly to support environmental sustainability. Low coil power consumption enhances energy efficiency.
Compatible with various protection modules and socket accessories. Explore more Schneider Electric relays and accessories on EnvMart for your industrial and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG23B7 power relay operates with a coil voltage of 24 volts AC.
It has a maximum switching current rated at 5 amperes.
This model features a Double Pole Double Throw (DPDT) contact configuration.
The relay supports a wide operating temperature range from -40°C to 70°C.
It uses silver alloy as the contact material, which provides reliable electrical conduction.
The relay measures 13mm in length, 30.6mm in width, and 37.1mm in height.
It can switch AC voltages up to 250V and DC voltages up to 30V.
The coil resistance is 260 ohms, and it consumes 820 milliwatts of power.
This relay is certified with CSA and CE standards, ensuring safety and compliance.
It is designed for disassembly, supporting sustainability initiatives.
It features a plug-in terminal type, facilitating easy installation and maintenance.
This relay is commonly deployed in industrial automation, manufacturing equipment, and HVAC systems.
