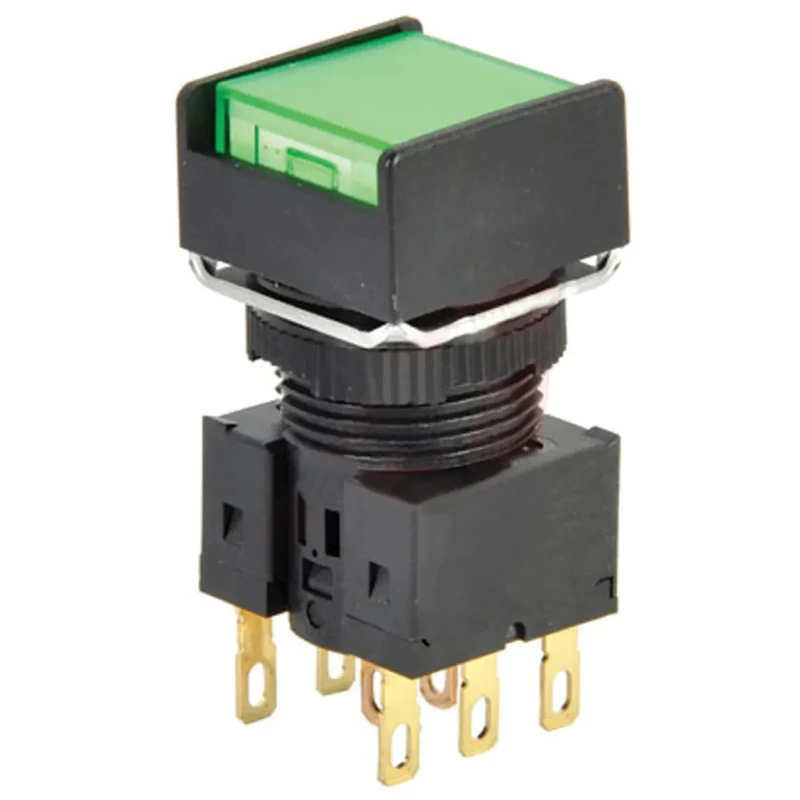

Omron Illuminated Alternate Momentary Push Button Switch Panel Mount 16 mm Cutout DPDT IP65 30 V dc 250 V ac A165L-AGM-24D-2

Omron A165L-AGM-24D-2 illuminated push button switch is a high-quality miniature switch designed for panel mounting in industrial and electrical automation applications. It features an alternate and momentary switch operation, allowing users to select either toggle or push-to-make/break functionality depending on their needs.

This switch has a Double Pole Double Throw (DPDT) contact configuration, providing the capability to control two separate circuits simultaneously. It is designed to fit a 16 mm diameter panel cutout and features a compact form factor measuring 28.5 mm in height, 16 mm in width, and 16 mm in length.

Illumination is integrated to provide clear visual indication during operation, improving user awareness and safety. The switch is IP65 rated, offering protection against dust and water ingress, making it suitable for harsh industrial environments.

Operating voltages cover up to 30 V DC and 250 V AC, with a temperature range from -10°C to 55°C, ensuring suitability across various applications. The terminal is of PCB pin type, facilitating easy and secure mounting on printed circuit boards.

Omron's modular construction enables easy assembly and maintenance, with components such as case, contact or indicator block, lens, and lamp designed to snap together effortlessly. The switch conforms to EN 60947-5-1 and IEC 947-5-1 standards, ensuring quality and compliance.

Operates with alternate and momentary switch action for versatile control. Double Pole Double Throw (DPDT) contact configuration ensures complex switching capabilities. Panel mount with 16 mm cutout and miniature compact design.

IP65 sealing protects against dust and moisture. Illuminated for user-friendly visual feedback. Supports 30 V DC and 250 V AC voltages. Operating temperature range from -10°C to 55°C. PCB pin terminal type for secure circuit integration.

Easy snap-together modular assembly for flexible installation.

This Push Button Switch is ideal for use in industrial automation, electrical panels, manufacturing control stations, HVAC systems, and various equipment requiring reliable manual control components. Its robust sealing, versatile operation, and compact size make it suitable for demanding environments where space and durability are critical.
