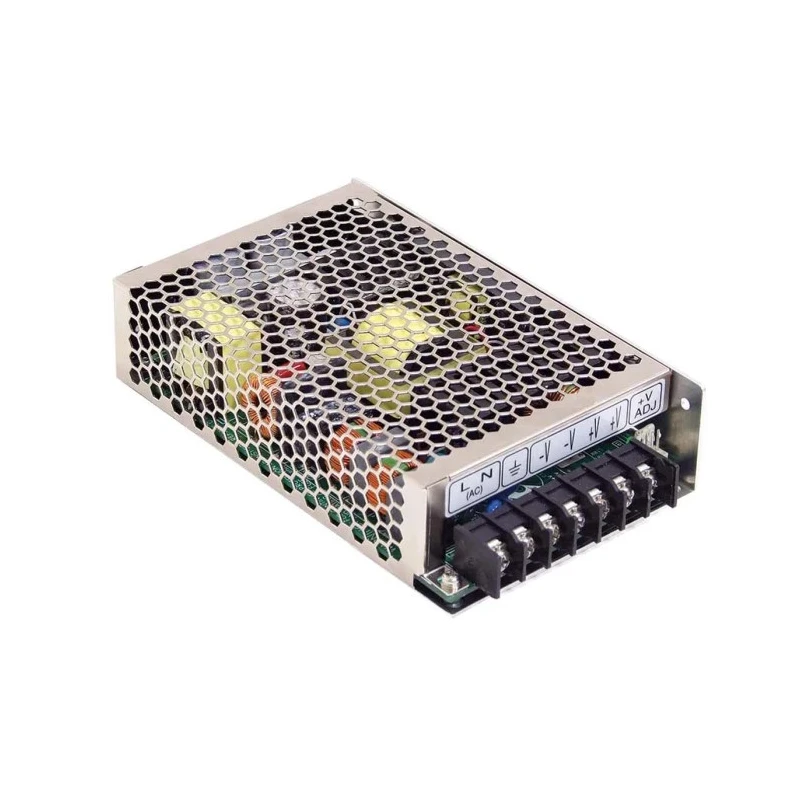

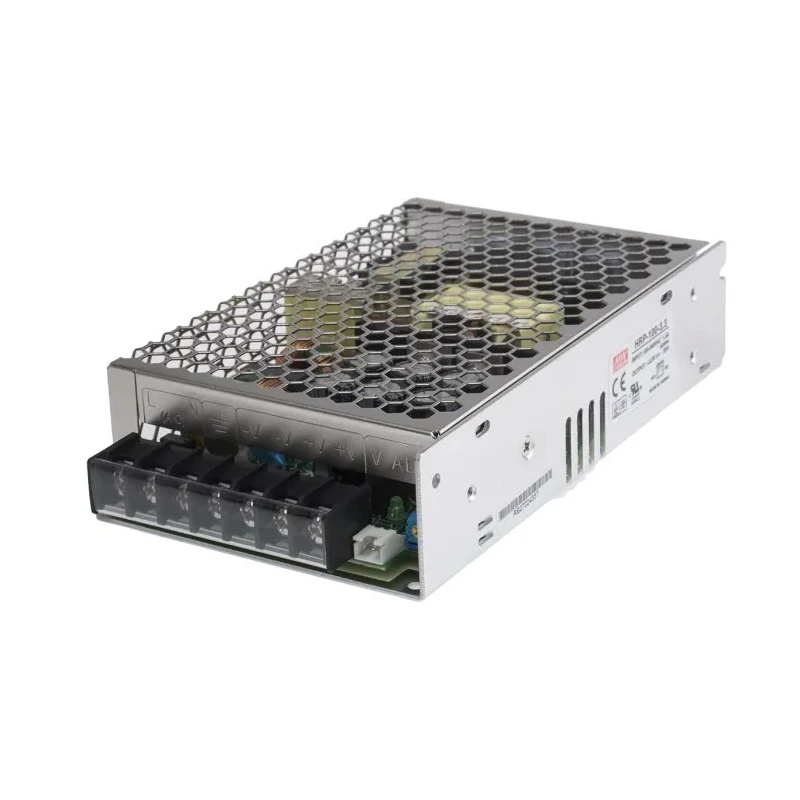

MEAN WELL HRP-100-3.3 Switching Power Supply 3.3V DC, 66W, 20A Output, Chassis Mount HRP-100-3.3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 66W |
| Efficiency | 78% |
| Length | 159mm |
| Model | HRP-100-3.3 |
| Depth | 38mm |
| Gross Weight | 380g |
| Width | 97mm |
| Mount Type | Chassis |
| Series | HRP-100 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Standards/Approvals | ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681, UL 6681 |
| Maximum Output Voltage | 3.3V dc |
| SMPS Output Current | 20A |
| Minimum Input Voltage | 85V ac |
Key Features
- Designed for chassis mounting to ensure secure installation.
- Operates efficiently with an efficiency rating of 78%.
- Supports a wide input voltage range from 85V AC to a maximum of 264V AC and 370V DC.
- Functions reliably across temperatures from -40°C to 60°C.
- Compact dimensions measuring 159mm length, 97mm width, and 38mm depth for versatile applications.
- Complies with multiple international standards including ASNZS 668.1, EAC TP TC 004, and TUV EN 6681.
- Equipped with PFC function for improved power factor and reduced harmonics.
- Constructed for high reliability with long service life and low no-load power consumption.
Product Description
MEAN WELL HRP-100-3.3 is a high-performance switching power supply providing 3.3V DC output at 66W power and 20A output current. This chassis-mount unit features active Power Factor Correction (PFC) for enhanced electrical efficiency and power quality.
It accepts an input voltage range from 85V AC up to 264V AC as well as up to 370V DC, suited for use in varied power environments. Operating reliably in ambient temperatures from -40°C to 60°C, the HRP-100-3.3 is engineered for tough industrial, laboratory, and electronic applications requiring stable low-voltage DC power from AC or DC sources.
The compact physical footprint of 159 mm length, 97 mm width, and 38 mm depth enables easy installation in constrained spaces. Weighing approximately 380 grams, this unit ensures minimal impact on system weight.
Chassis mount design supports secure and stable installation. High efficiency of 78% reduces energy loss and thermal load. Wide input voltage supports global usage and variable power conditions. Robust operation across a broad temperature range for demanding environments.
Compact size and light weight enable flexible system integration. Low no-load power consumption maximizes energy savings during idle periods. Meets multiple international certifications assuring quality and compliance. The HRP-100 series is known for long lifespan and high reliability under continuous use.
This switching power supply is ideal for applications in electronic components manufacture, industrial machinery control, laboratory instrumentation, and power supply systems requiring efficient, reliable DC output.
Explore a wide range of MEAN WELL power supplies and related electronic components on EnvMart for your engineering and industrial needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 3.3V DC output with a maximum output current of 20A.
The HRP-100-3.3 has an efficiency rating of 78%, which helps to reduce energy loss and thermal load.
It accepts an input voltage range from 85V AC to 264V AC, as well as up to 370V DC.
This power supply operates reliably in ambient temperatures from -40°C to 60°C.
The dimensions are 159mm in length, 97mm in width, and 38mm in depth, with a gross weight of approximately 380 grams.
This model is designed for chassis mounting, ensuring secure installation.
It complies with multiple international standards including ASNZS 668.1, EAC TP TC 004, and TUV EN 6681.
The maximum output power of this unit is 66W.
Yes, it is equipped with an active Power Factor Correction (PFC) function for improved electrical efficiency.
It is suitable for applications in electronic components manufacture, industrial machinery control, and laboratory instrumentation.
The HRP-100-3.3 is designed for low no-load power consumption, maximizing energy savings during idle periods.
This unit belongs to the HRP-100 series of switching power supplies.
