ABB System Pro M Compact S200 Miniature Circuit Breaker 4-Pole 13A Type C 400V AC 6 kA Breaking 2CDS254001R0134 S204-C13

Free Delivery in India | Lowest Global Shipping Charges

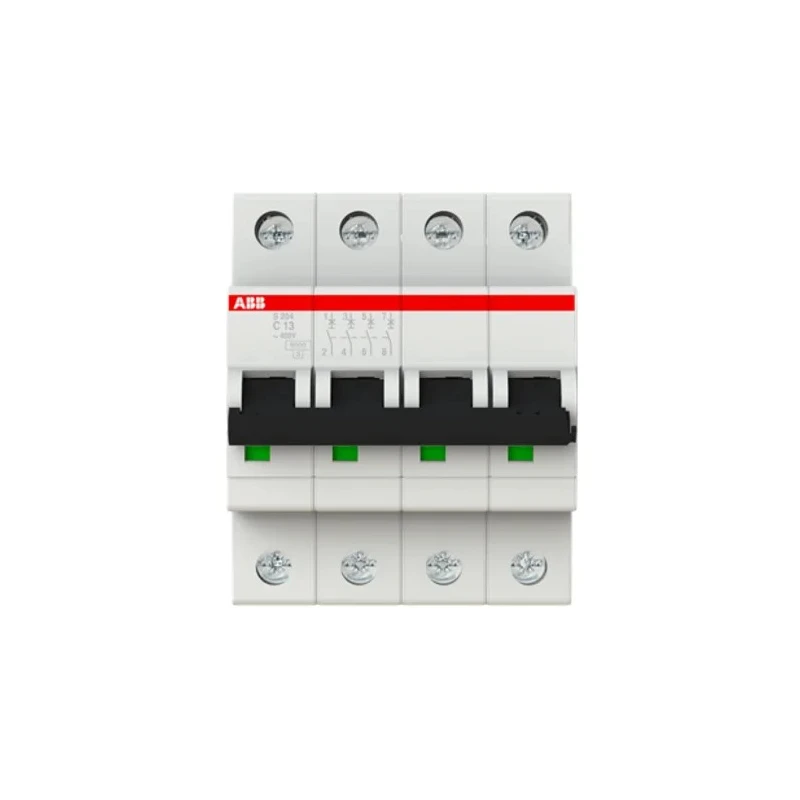

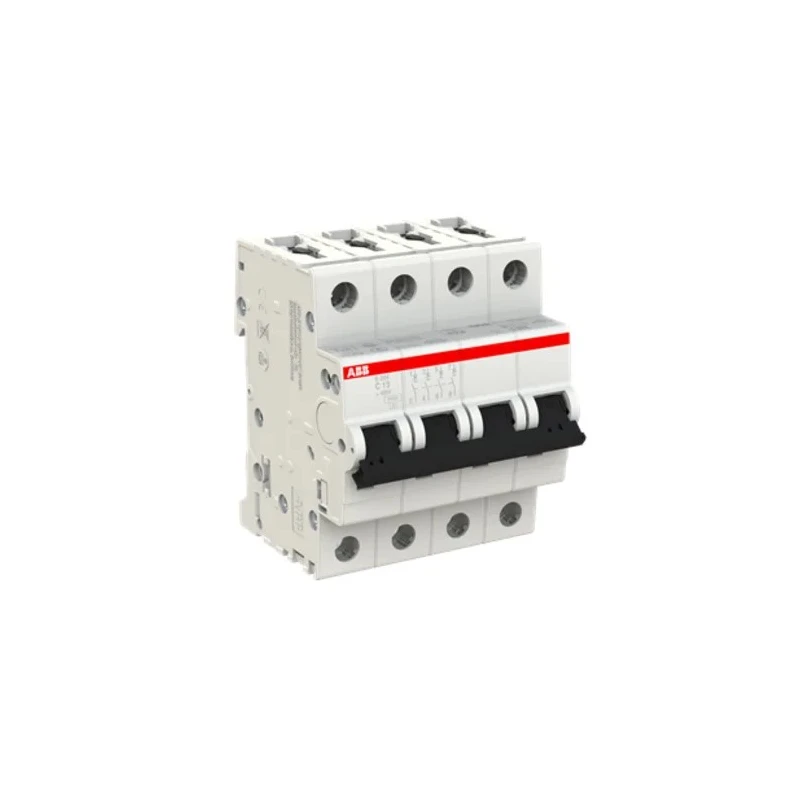

ABB System Pro M Compact S200 Miniature Circuit Breaker 4-Pole 13A Type C 400V AC 6 kA Breaking 2CDS254001R0134 S204-C13



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS254001R0134 S204-C13
Depth	69mm
IP Rating	IP20, IP40
Width	70mm
Mount Type	DIN Rail
Current Rating	13A
Series	S200
Terminal type	Cage Terminal
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic

Key Features

Equipped with electromagnetic and thermomagnetic tripping mechanisms allowing effective overload and short circuit protection.
Designed for DIN rail mounting with cage terminal type suitable for rigid and flexible conductors.
Compact dimensions of 88 mm height, 70 mm width, and 69 mm depth allow installation in restricted spaces.
IP20 and IP40 ingress protection ratings ensure safety from solid objects and tools larger than 12 mm.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for circuit breakers.
Operates reliably within a wide temperature range from -25°C to +55°C, fitting demanding industrial conditions.
Applicable for protection in industrial motors and heavy equipment control panels.

Product Description

ABB 2CDS254001R0134 S204-C13 System Pro M Compact S200 Miniature Circuit Breaker is a robust 4-pole device rated at 13 A and Type C tripping characteristic with a high breaking capacity of 6 kA at 400 V AC.

It provides excellent overload and short circuit protection through electromagnetic and thermomagnetic tripping mechanisms, ensuring reliable electrical system safety. Constructed within a thermoplastic case, it affords insulation and impact resistance suitable for volatile and demanding environments.

This miniature circuit breaker supports installation on DIN rails and features cage terminals for secure connections with rigid or flexible wires or bus bars, making it versatile for various wiring setups.

The compact size, measuring 88 mm in height, 70 mm in width, and 69 mm in depth, makes it ideal for use in compact electrical panels or control boxes with limited installation space.

Its protection rating of IP20 and IP40 guards against ingress of solid objects larger than 12 mm, enabling safer operation and compliance with safety standards IEC/EN 60898-1 and IEC/EN 60947-2.

Designed for use in a broad temperature range of -25°C to +55°C, the breaker is suitable for heavy industrial applications such as controlling motors and other heavy industrial equipment.

ABB's focus on sustainability is reflected in this product's design for disassembly, supporting ease of recycling and environmental friendliness. Equipped with electromagnetic and thermomagnetic tripping mechanisms allowing effective overload and short circuit protection.

Designed for DIN rail mounting with cage terminal type suitable for rigid and flexible conductors. Compact dimensions of 88 mm height, 70 mm width, and 69 mm depth allow installation in restricted spaces. IP20 and IP40 ingress protection ratings ensure safety from solid objects and tools larger than 12 mm.

Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for circuit breakers. Operates reliably within a wide temperature range from -25°C to +55°C, fitting demanding industrial conditions. Applicable for protection in industrial motors and heavy equipment control panels.
