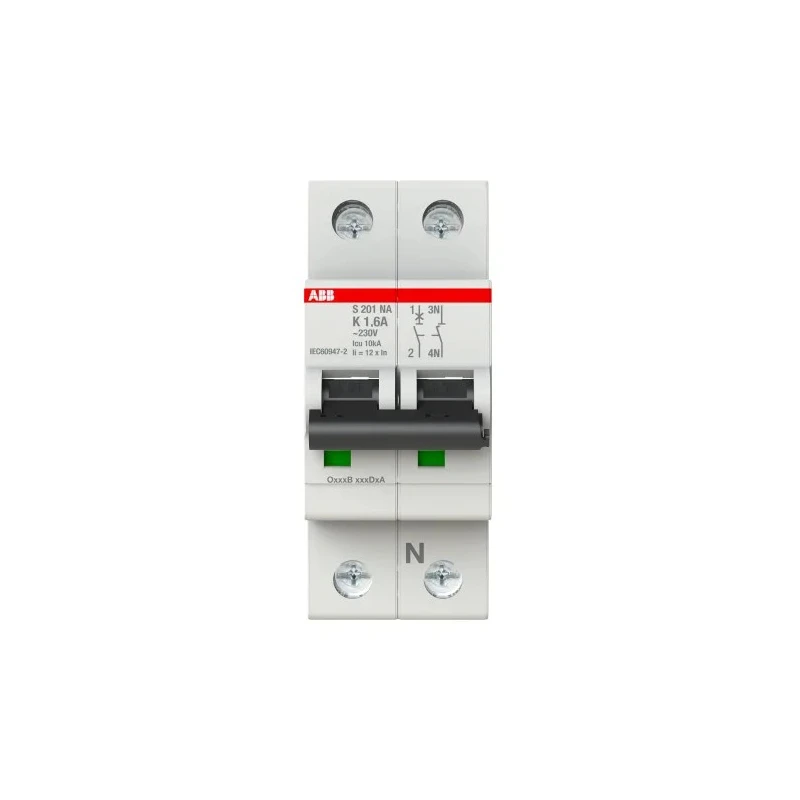

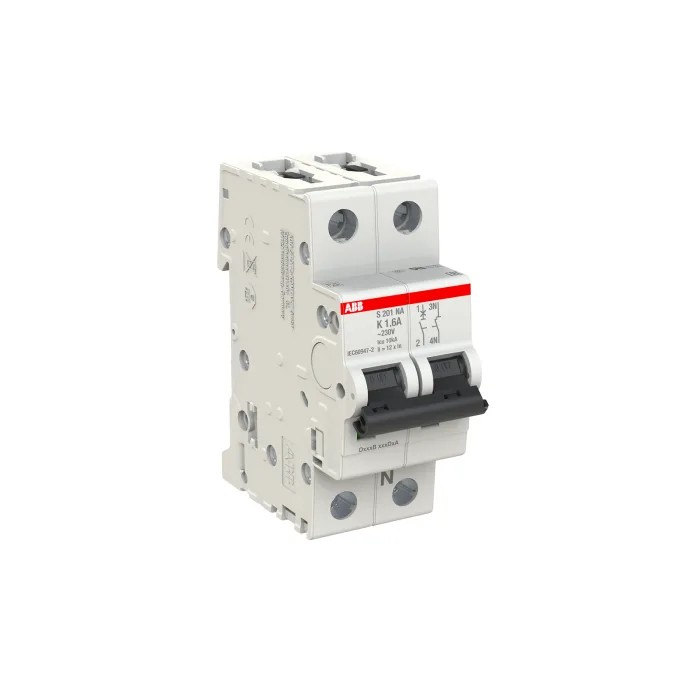

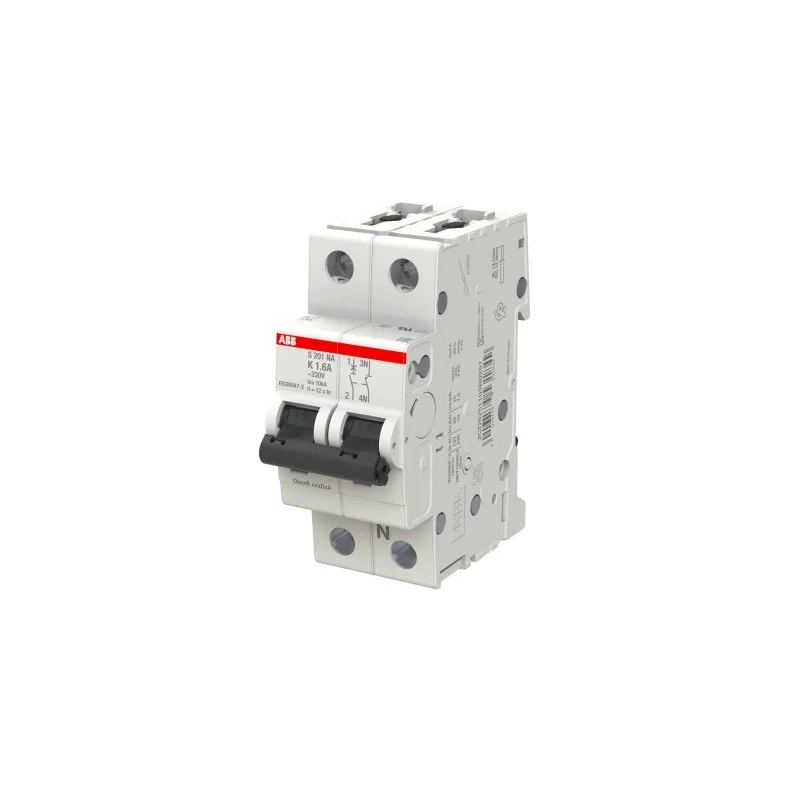

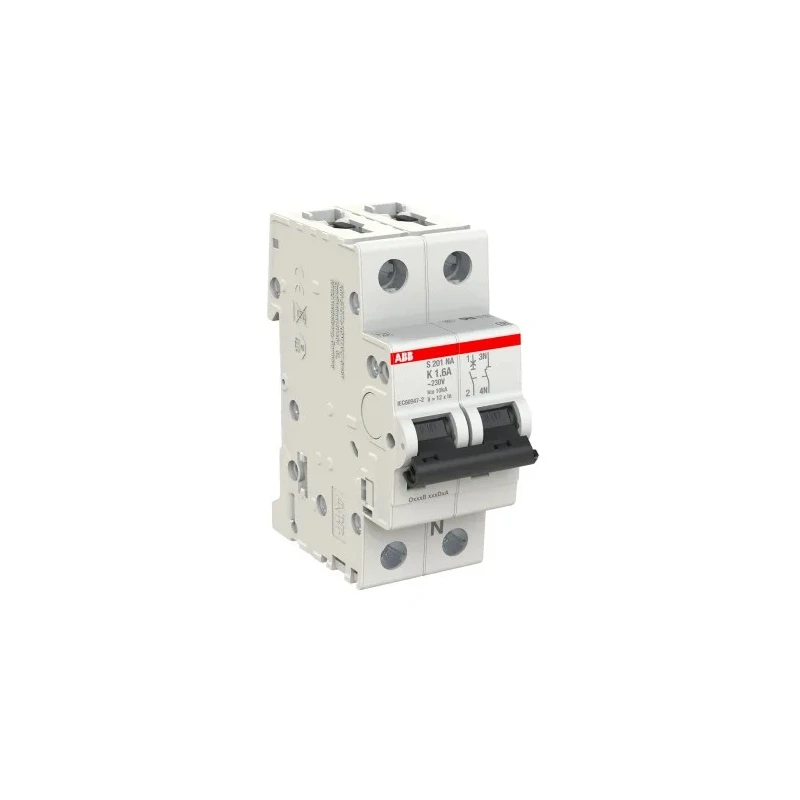

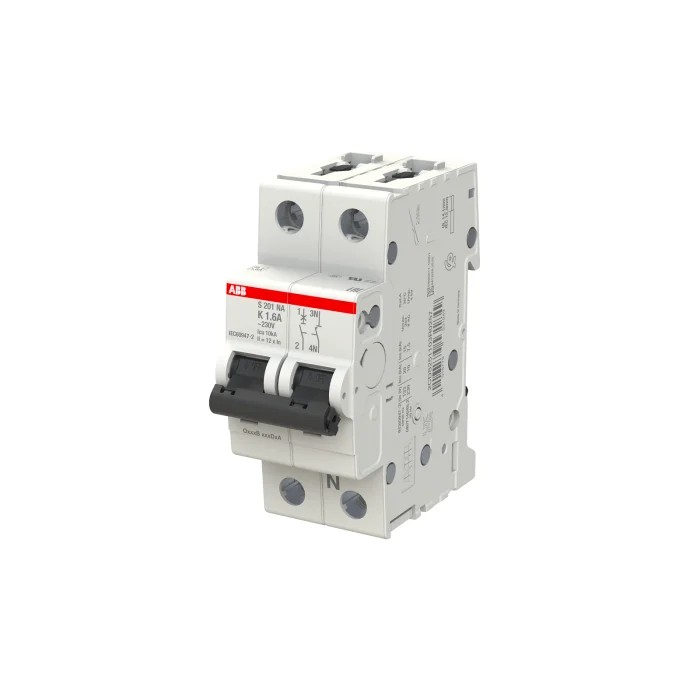

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 1.6A Current Rating, Type K Tripping, 400V 2CDS251103R0257



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS251103R0257
Depth	69mm
IP Rating	IP40, IP20
Width	35mm
Mount Type	DIN Rail
Current Rating	1.6A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60947-2, IEC/EN 60898-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type K
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch
It utilises a dual tripping mechanism	a delayed thermal mechanism for overloads and an electromechanical one for short circuits, providing comprehensive protection against electrical faults

Key Features

Designed for both commercial and residential electrical applications.
Features a Type K tripping characteristic for versatile overload and short circuit protection.
Breaking capacity of 6kA ensures effective fault interruption.
Mounts easily on DIN rail with compact 35mm width and screw terminals.
Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and reliability.
IP40 and IP20 rated for protection against dust and fingers.
Equipped with a toggle switch reset actuator for easy operation.
Electromagnetic and thermomagnetic dual tripping mechanisms enhance protection.

Product Description

ABB 2CDS251103R0257 System Pro M Compact S200 Miniature Circuit Breaker is engineered for reliable protection in electrical distribution systems with a 1-Pole configuration and 1.6A current rating. Rated for 400V AC, this MCB is ideal for commercial and residential installations requiring compact and effective circuit protection.

The device incorporates a Type K tripping characteristic, which balances overload and short circuit protection, ensuring operational safety in diverse electrical environments. With a breaking capacity of 6kA, it effectively interrupts fault currents, maintaining system stability.

Designed for DIN rail mounting, the MCB features a slim 35mm width and screw-type terminals for convenient and secure installation. Its construction adheres to IEC/EN 60947-2 and IEC/EN 60898-1 standards, confirming its compliance with international safety and performance requirements.

Additional features include a toggle switch reset actuator for user-friendly operation and dual electromagnetic and thermomagnetic tripping mechanisms for comprehensive fault detection and interruption. The device is IP40 and IP20 rated, providing protection against solid foreign objects and dust.

Suitable for residential electrical distribution systems. Ideal for commercial electrical protection. Used in automation panels requiring reliable protection solutions. Provides space-saving due to its compact design. Ensures compliance with international IEC standards.

ABB’s System Pro M Compact S200 series MCB offers dependable protection for a wide range of applications in industrial, commercial, and residential settings. Its robust design and advanced tripping mechanisms support efficient and safe electrical power management. Explore similar circuit protection solutions within the ABB range on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The current rating of this miniature circuit breaker is 1.6A.

It has a breaking capacity of 6kA, which ensures effective fault interruption.

This model utilizes a dual tripping mechanism, comprising an electromagnetic mechanism for short circuits and a delayed thermal mechanism for overloads.

The rated AC voltage for this miniature circuit breaker is 400V.

It is designed for DIN rail mounting and features a compact width of 35mm.

This model has IP40 and IP20 ratings, providing protection against dust and fingers.

It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and reliability.

The height is 88mm and the depth is 69mm.

It features screw-type terminals for secure connections.

It is suitable for both commercial and residential electrical applications, providing reliable circuit protection.

The toggle switch reset actuator allows for easy operation and resetting of the circuit breaker after a trip.

The country of origin for this miniature circuit breaker is Germany.
