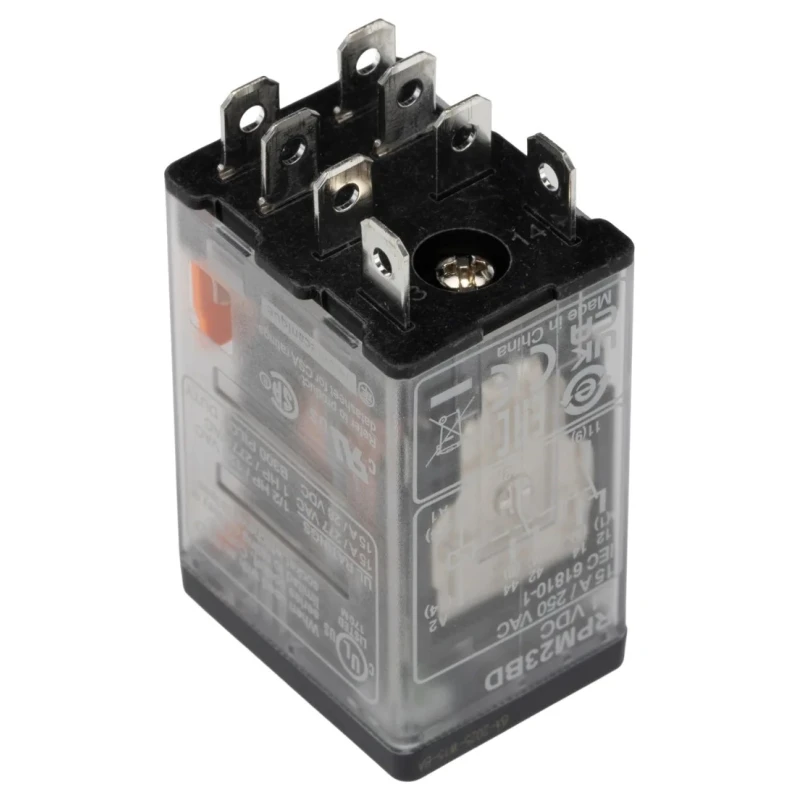

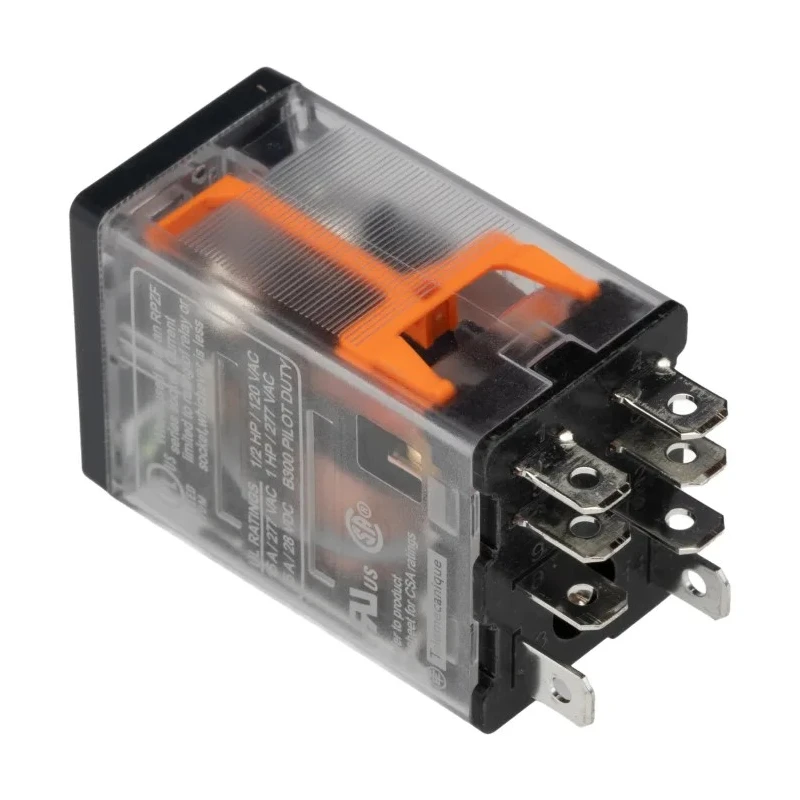

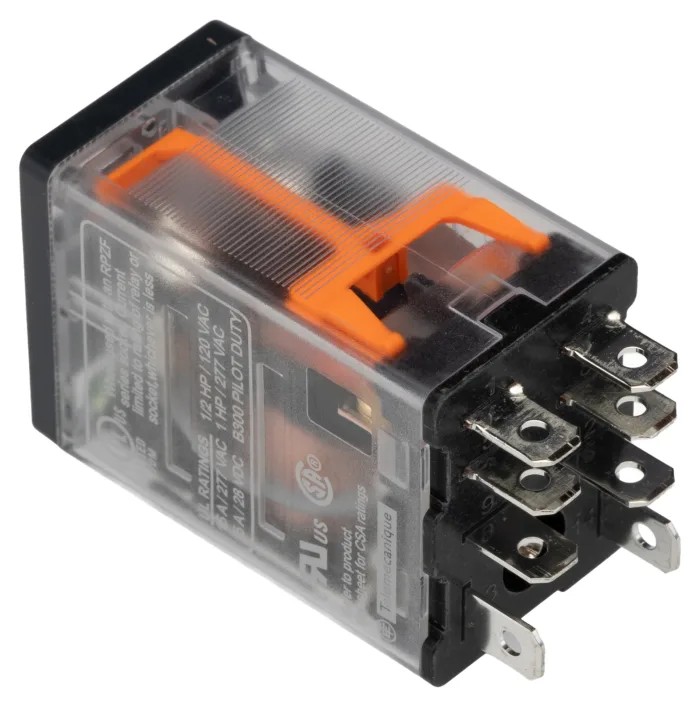

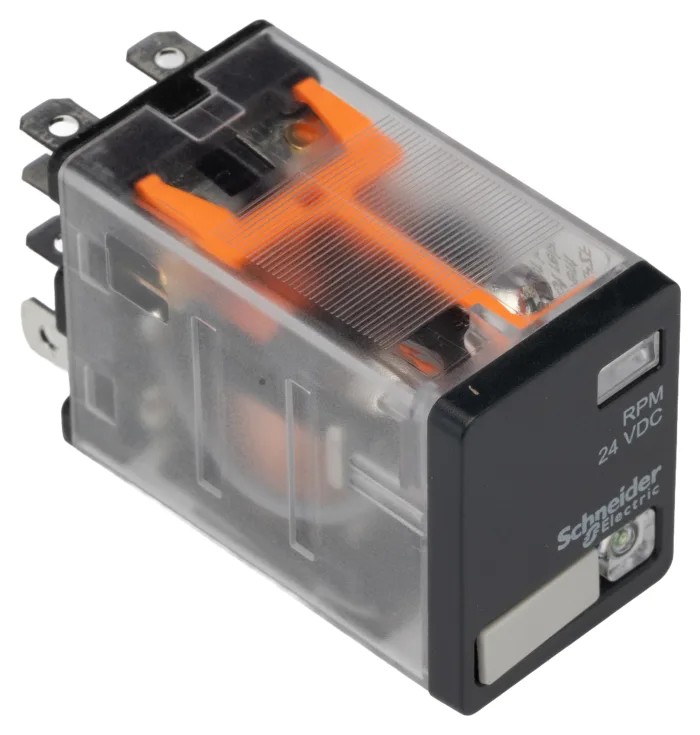

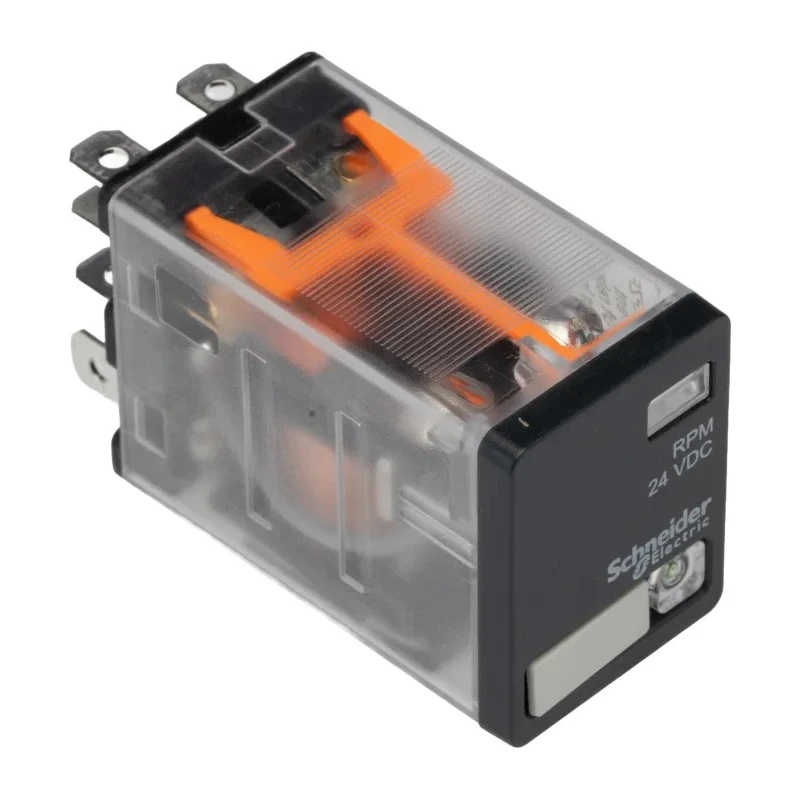

Schneider Electric Panel Power Relay 24V dc Coil 15A Switching Current DPDT Harmony Relay RPM Series RPM23BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RPM23BD |
| Width | 39mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RPM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Resistance | 640Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 850mW |
Key Features
- Compact plug-in relay with a reliable Harmony Relay RPM series build.
- Supports switching voltage up to 250V ac and 28V dc.
- Wide operating temperature range from -40°C to +55°C for robust performance.
- Equipped with silver alloy contact material for enhanced conductivity and durability.
- IP40 rated housing protects against solid objects larger than 1mm.
- Status LED provides easy system monitoring at a glance.
- Panel mount and plug-in terminal type for ease of installation and maintenance.
- Low coil power consumption at 850mW for energy-efficient operation.
Product Description
Schneider Electric RPM23BD is a Panel Power Relay from the Harmony Relay RPM series, designed with a 24V dc coil and a 15A switching current capacity. It features a DPDT contact configuration, making it suitable for demanding industrial control applications requiring reliable switching performance.
Designed to reduce the size of equipment enclosures while increasing machine reliability, this plug-in relay offers a broad operating temperature range from -40°C to +55°C, making it adaptable to various environmental conditions. The IP40 rating protects the relay from small solid objects, enhancing durability.
The relay uses silver alloy contacts to ensure low resistance and long operational life. Its plug-in terminal type and panel mount design simplify installation and replacement, reducing maintenance downtime.
Compact plug-in design supporting easy integration into control panels. Operates efficiently with a coil power consumption of only 850mW. Status LED allows quick visual inspection of system status. Meets RoHS compliance for environmental safety standards.
Designed for use in industrial machines, packaging, textile machinery, HVAC systems, and energy distribution.
Installation is straightforward by using a compatible plug-in relay socket on a DIN rail, enabling quick relay replacement without system disruption. Its reliable performance makes it suitable for lighting systems, audio amplification equipment, and packaging lines among other applications.
This product reflects Schneider Electric's extensive expertise and commitment to quality and precision in electrical control components. Explore EnvMart’s comprehensive range of high-quality Power Relays and automation components for industrial, commercial, and HVAC uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RPM23BD relay has a switching current capacity of 15A.
This model operates with a coil voltage of 24V dc.
The relay measures 27mm in height, 21mm in length, and 39mm in width.
It features a DPDT (Double Pole Double Throw) contact configuration.
The RPM23BD supports a maximum switching voltage of 250V ac and 28V dc.
It operates effectively within a temperature range of -40°C to +55°C.
The relay utilizes a plug-in terminal type for easy installation.
The contacts are made of silver alloy, which enhances conductivity and durability.
Yes, this relay meets RoHS compliance for environmental safety standards.
The coil power consumption is 850mW, making it energy-efficient.
It is designed for panel mounting, allowing for straightforward installation.
Yes, it is equipped with a status LED for easy system monitoring.
