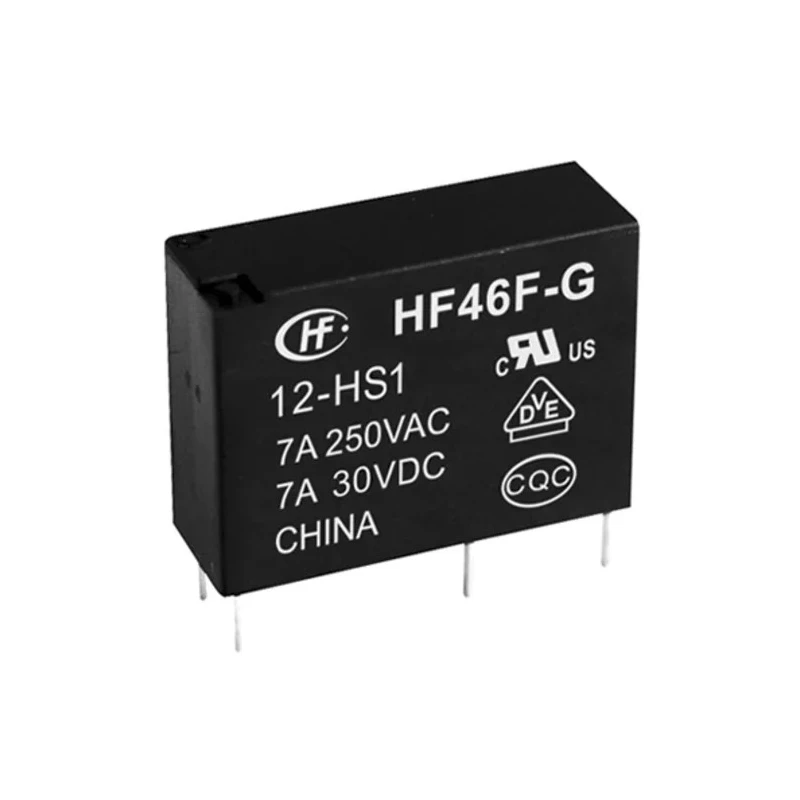

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 10A Switching Current SPST HF46F-G/12-HS1F(610)

Hongfa Europe GMBH HF46F-G/12-HS1F(610) PCB Power Relay is a high-performance sub-miniature intermediate power relay featuring a 12V DC coil and a switching current capacity of 10A. Designed for efficient PCB mounting, this relay employs a Single Pole Single Throw (SPST) contact configuration with silver alloy contacts, ensuring excellent conductivity and durability.

The device operates across a wide temperature range from -40°C to 85°C, allowing reliable performance in harsh environmental conditions. It offers a compact form factor with dimensions of 20.5mm length, 7mm width, and 15.3mm height, making it suitable for space-constrained applications.

With a coil resistance of 720Ω and coil power consumption of only 200mW, it ensures energy-efficient operation. The relay supports switching power of up to 2.8kVA, with maximum switching AC voltage of 277V and DC voltage of 30V. Its electrical isolation between coil and contact is rated at 10kV to guarantee user safety and separation of control and power circuits.

This component is RoHS compliant, promoting environmental responsibility. It is also flux proofed and rated for a mechanical durability of up to 5 million cycles, making it suitable for demanding industrial and automotive applications.

Ideal applications include automotive engine controls, household appliances, industrial machinery, medical equipment, and telecommunication systems requiring reliable power switching and long service life.

Set contains one piece of Hongfa Europe GMBH PCB Power Relay model HF46F-G/12-HS1F(610) with the described specifications. Explore more industrial electronic components and relays at EnvMart for your professional electrical and automation needs.

Operates with a coil voltage of 12V DC and coil power of 200mW. Switching current rated at 10A suitable for robust power switching. Contact configuration is Single Pole Single Throw (SPST) with silver alloy contacts. Designed for PCB mounting with PCB pin terminals for easy integration.

Operating temperature range is wide from -40°C to 85°C for varied environments. Dimensions are compact with length 20.5mm, width 7mm, and height 15.3mm. Coil resistance is 720Ω ensuring efficient coil operation. Switching power up to 2.8kVA with switching AC voltage up to 277V and DC voltage up to 30V.

Meets RoHS standards for environmental safety and durability rated for up to 5 million cycles. Isolation between coil and contact is 10kV ensuring electrical safety. Flux proofed design for reliable industrial and automotive applications.
