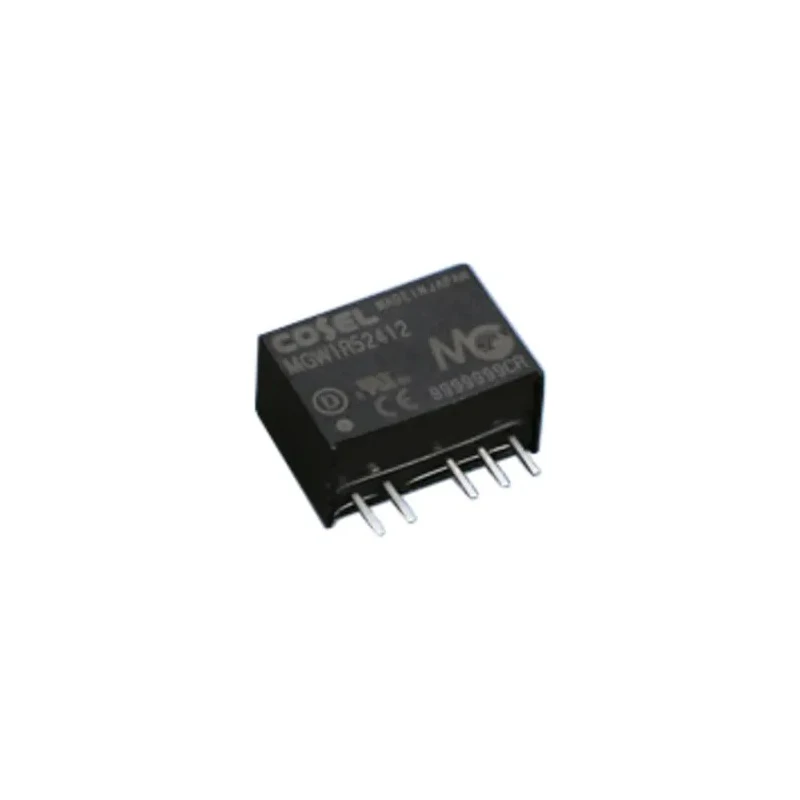

Cosel DC/DC Converter Dual Output 12 V dc and -12 V dc 130 mA, 24 V dc Input, 3.12 W, SIP-6 PCB Mount MGFW32412

Cosel MGFW32412 DC/DC Converter is a dual output power supply module providing 12 V dc and -12 V dc with 130 mA output current, designed primarily for PCB mounting using the SIP-6 package. It supports a wide input voltage range from 9 V to 24 V dc, making it adaptable for various power supply requirements in industrial and electronic applications.

This converter delivers a maximum output power of 3.12 W with high efficiency up to 82%, optimizing energy usage while maintaining reliable voltage regulation. The device incorporates built-in overcurrent protection which enables automatic recovery from overload conditions, enhancing operational safety.

The product operates efficiently across a broad temperature range from -40 °C to 85 °C, suitable for harsh environments. Isolation voltage stands at 1 kV dc, ensuring protection against electrical interferences and improving system stability. Ripple and noise are minimized to 200 mV peak-to-peak, supporting sensitive electronic circuits.

The output voltage is adjustable between 11.64 V and 12.36 V, allowing precise control to meet specific application needs. With its compact 17 mm length, 12 mm depth, and 8.5 mm width dimensions, this converter is ideal for space-limited designs.

Manufactured in Japan, this product meets RoHS, EN62368-1, CE, UL, CSA, and UKCA standards, affirming its compliance with international safety and quality requirements. Typical uses include electronic components, industrial controls, automation, communications equipment, and instrumentation.

Offers wide input voltage range from 9 V to 24 V dc ensuring operational flexibility. Compact SIP-6 PCB mount form factor suitable for space-constrained applications. Maximum output power rating of 3.12 W with 82% efficiency to optimize power consumption.

Equipped with robust overcurrent protection for safe operation and automatic recovery. Operates reliably within temperature range of -40 °C to 85 °C. Typical isolation voltage of 1 kV dc for enhanced safety and signal integrity.

Low ripple and noise of 200 mV peak-to-peak to ensure stable output voltages. Precision output voltage adjustment range from 11.64 V to 12.36 V for fine tuning. Designed and manufactured in Japan ensuring high-quality standards.
