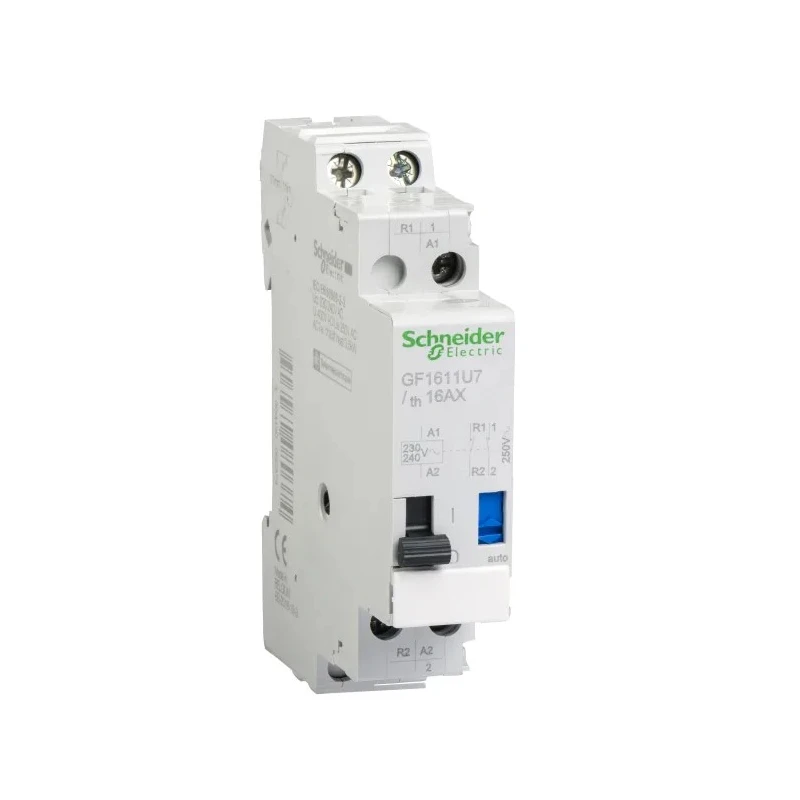

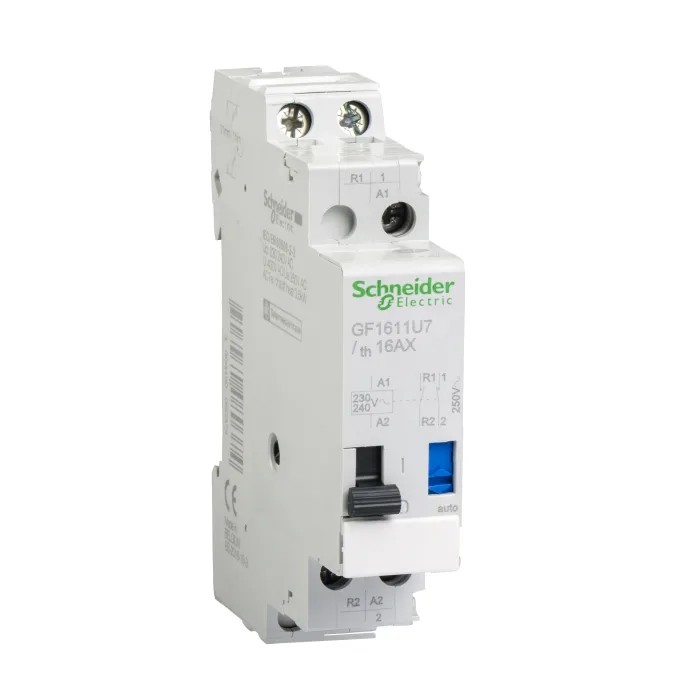

Schneider Electric DIN Rail Power Relay, 230V AC Coil Voltage, 16A Switching Current, SPDT, TeSyS GC/GY Series GF1611U7

Schneider Electric GF1611U7 is a DIN Rail Power Relay engineered for reliable switching functions within industrial, electrical, and automation applications. Featuring a 230V AC coil voltage and 16A switching current, this relay supports SPDT (Single Pole Double Throw) contact configuration, making it adaptable for diverse control requirements.

The relay is designed for DIN rail mounting, enabling straightforward integration within control panels and modular control enclosures. It belongs to the robust TeSyS GC/GY series, which is optimized for low noise operation and durable performance in environments such as heating, lighting, and building services.

Dimensions are compact at 64 mm length, 81 mm height, and 18 mm width, facilitating space-efficient installations. The screw clamp terminal type ensures secure wiring connections, improving reliability in operation. The relay offers an impulse duration of 70 ms which ensures rapid contact action, enhancing control system responsiveness.

Conforming to strict standards including NF C 61-112, IEC 60669-1, and IEC 60669-2, the GF1611U7 meets international quality and safety benchmarks. The latch-on impulse functionality allows the relay to stay energized until a reset impulse is triggered, making it suitable for control schemes requiring maintained states without constant power supply.

This power relay is indispensable for applications in industrial manufacturing, HVAC control systems, electrical automation, and other commercial sectors requiring robust switching solutions. The relay's design ensures longevity and performance stability, making it ideal for mounting on symmetrical DIN rails or being housed within modular enclosures.

Designed for DIN rail mounting which ensures easy installation in control panels. Single Pole Double Throw (SPDT) contact configuration for versatile switching applications. TeSyS GC/GY series offering reliable performance in electrical and automation systems.

Switching current rated at 16A suitable for various industrial loads. Screw clamp terminal type enabling secure and robust connections. Impulse duration of 70 ms ensures quick make and break times. Compact dimensions of 64mm length, 81mm height, and 18mm width for space-saving panel design.

Conforms to international standards including NF C 61-112, IEC 60669-1, and IEC 60669-2. Low noise relay operation ideal for building services, heating, and lighting control. Latch on impulse; remains latched until next impulse applied, useful for control logic circuits.
