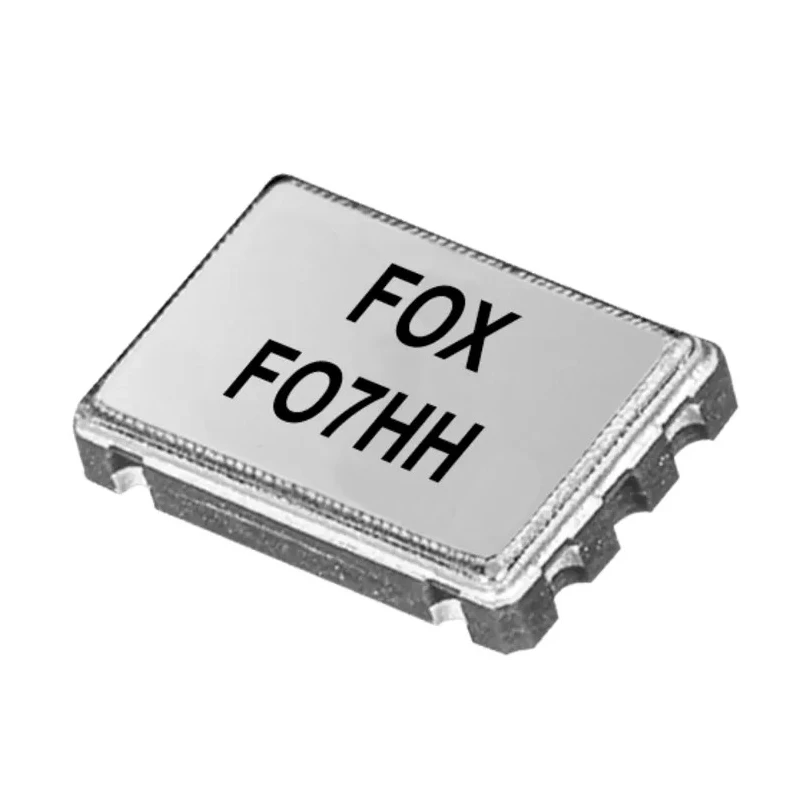

Abracon 32MHz Crystal Oscillator ±20 ppm HCMOS 4-Pin Surface Mount FO7HHAAE32.0-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 5mm |
| Length | 7mm |
| Model | FO7HHAAE32.0-T1 |
| Packaging | Tape & Reel |
| Width | 5.2mm |
| Mount Type | Surface |
| Series | FO7HH |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 32MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Crystal Oscillator |
| Output Level | HCMOS |
Key Features
- Operates at a fixed output frequency of 32MHz for reliable timing applications.
- Maintains frequency stability within ±20 parts per million for precision performance.
- Supplied in tape and reel packaging suitable for automated surface mount assembly.
- Designed for a 5V maximum supply voltage with HCMOS output compatibility.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
- Compact dimensions with length 7mm, width 5.2mm, and height 5mm for space-efficient PCB mounting.
- Features a seam seal method and lead (Pb) free construction ensuring environmental compliance.
- Start-up time is 10 milliseconds, with fast output enable and disable times of 100 nanoseconds each.
Product Description
The Abracon FO7HHAAE32.0-T1 is a high-precision crystal oscillator designed for applications requiring a 32MHz frequency with ±20 ppm stability. Featuring an HCMOS output type, it supports a maximum supply voltage of 5V and operates reliably within a temperature range of -40°C to 85°C. Its compact footprint - 7mm length, 5.2mm width, and 5mm height - makes it ideal for tight PCB layouts in industrial, electronic, and communication equipment.
This surface mount device comes packaged in tape and reel, facilitating automated assembly and manufacturing efficiency. The oscillator incorporates a seam seal for durability and environmental protection, and it is manufactured lead (Pb) free to adhere to RoHS standards.
Performance-wise, the oscillator offers fast start-up times of 10 milliseconds and quick enable/disable output responses at 100 nanoseconds each. The product endures soldering temperatures up to 260°C with short soldering cycles, ensuring robustness in manufacturing processes.
Suitable for use in industrial automation, telecommunications, measurement instruments, and embedded control systems, the FO7HHAAE32.0-T1 guarantees precise timing and signal stability. Its HCMOS output level and 4-pin configuration simplify integration into digital circuits requiring stable clock sources.
Operates at a fixed output frequency of 32MHz for reliable timing applications. Maintains frequency stability within ±20 parts per million for precision performance. Supplied in tape and reel packaging suitable for automated surface mount assembly.
Designed for a 5V maximum supply voltage with HCMOS output compatibility. Wide operating temperature range from -40°C to 85°C for industrial environments. Compact dimensions with length 7mm, width 5.2mm, and height 5mm for space-efficient PCB mounting.
Features a seam seal method and lead (Pb) free construction ensuring environmental compliance. Start-up time is 10 milliseconds, with fast output enable and disable times of 100 nanoseconds each. Maximum soldering temperature tolerance is 260°C with a maximum soldering duration of 10 seconds per pass.
The Abracon FO7HHAAE32.0-T1 crystal oscillator is a reliable timing component for electronics manufacturing and prototyping. EnvMart offers this product under Electronics & Electricals > Electronics Components > Crystal Oscillator category, ensuring availability for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a fixed output frequency of 32MHz, making it suitable for reliable timing applications.
The oscillator has a wide operating temperature range from -40°C to 85°C, suitable for industrial environments.
This model is designed for a maximum supply voltage of 5V, compatible with HCMOS output.
The dimensions are 7mm in length, 5.2mm in width, and 5mm in height, allowing for space-efficient PCB mounting.
It is supplied in tape and reel packaging, which is suitable for automated surface mount assembly.
The start-up time is 10 milliseconds, allowing for quick initialization in applications.
The output level is HCMOS, which simplifies integration into digital circuits requiring stable clock sources.
It can endure soldering temperatures up to 260°C with a maximum soldering duration of 10 seconds per pass.
This crystal oscillator features a pin count of 4, which is standard for its surface mount configuration.
Yes, it is manufactured lead (Pb) free, ensuring compliance with RoHS standards.
The output enable and disable times are both 100 nanoseconds, providing fast response for applications.
It is suitable for use in industrial automation, telecommunications, measurement instruments, and embedded control systems.
