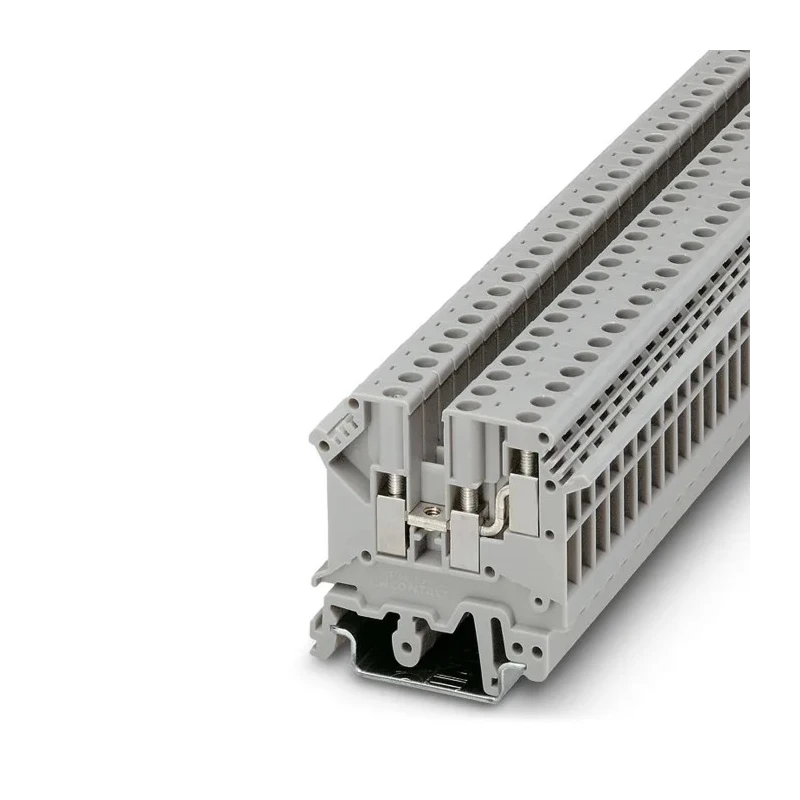

Phoenix Contact Feed Through Terminal Block 3 Positions, 1-Level, Screw Termination, 4 mm², Grey, 500V, 32A, ATEX 1923021
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 1923021 |
| Series | UK 5-TWIN |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Minimum Operating Temperature | -60°C |
| Pitch | 6.2mm |
| Hazardous Area Certification | ATEX |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 32A |
Key Features
- The terminal block is designed with a pitch of 6.2 mm for compact assembly.
- It is constructed from grey PA insulating material ensuring robust electrical insulation.
- Operating temperature ranges from -60°C to 105°C for versatile environmental conditions.
- Certified with ATEX hazardous area certification ensuring safety in potentially explosive atmospheres.
- Meets international standards CSA IEC 60947-7-1 and IEC/EN 60079-7 for quality and safety compliance.
- Allows wire sizes from minimum 24 AWG up to maximum 12 AWG for flexible wiring options.
- Non-fused and suitable for numerous industrial electrical connection needs.
- Compact dimensions with a width of 6.2 mm, length of 50.5 mm, and height of 38 mm.
Product Description
Phoenix Contact 1923021 is a feed through terminal block designed for safe and reliable electrical connections in industrial environments. It features 3 positions on a single level, terminated with screw technology which provides ease of use and strong contact force. This terminal block supports cable cross sections up to 4 mm² and operates at voltages up to 500 V with a current rating of 32 A.
The terminal block's grey color denotes the PA (polyamide) insulating material which offers excellent electrical isolation and mechanical durability. Its pitch of 6.2 mm allows for compact and efficient mounting on DIN rails, making it ideal for control cabinets and switchgear installations. It functions reliably across a wide temperature range of -60°C to 105°C, suitable for harsh industrial and ambient conditions.
Certified to ATEX standards, this terminal block can be safely employed in hazardous regions where explosive atmospheres are present. It also complies with recognized standards including CSA IEC 60947-7-1 and IEC/EN 60079-7 ensuring high quality and global acceptance.
The product accommodates a wire size range from 24 AWG to 12 AWG, supporting diverse wiring requirements for power and signal applications. It is a non-fused terminal block, designed to provide straightforward feed-through wire connections without additional protective devices.
Key applications include industrial automation, power distribution, electrical control systems, and hazardous environment installations. The compact dimensions - 6.2 mm width, 50.5 mm length, and 38 mm height - help optimize space in electrical assemblies.
The terminal block includes 3 connection positions with a single connection level. Screw termination ensures secure and reliable electrical contact. Operating voltage rating is 500 V with a current rating of 32 A. The ATEX certification enables safe usage in explosive atmospheres.
Meets CSA IEC 60947-7-1, IEC/EN 60079-7 approvals for performance and safety compliance. Designed for wire cross sections ranging from 0.2 to 4 mm² (24 to 12 AWG). Compact size for DIN rail mounting in control panels and distribution boards.
Explore more Terminal Blocks and electrical components for your industrial automation and power distribution needs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum voltage rating of 500 V.
It has a current rating of 32 A.
This terminal block accommodates wire sizes ranging from 24 AWG to 12 AWG.
The terminal block measures 6.2 mm in width, 50.5 mm in length, and 38 mm in height.
It operates within a temperature range of -60°C to 105°C.
It features screw termination, which provides ease of use and strong contact force.
Yes, it is certified with ATEX hazardous area certification, making it safe for use in potentially explosive atmospheres.
This model has 3 positions on a single level.
It is constructed from grey PA (polyamide) insulating material, ensuring robust electrical insulation.
It meets international standards CSA IEC 60947-7-1 and IEC/EN 60079-7 for quality and safety compliance.
It is suitable for applications in industrial automation, power distribution, and electrical control systems.
The pitch of this terminal block is 6.2 mm, allowing for compact assembly.
