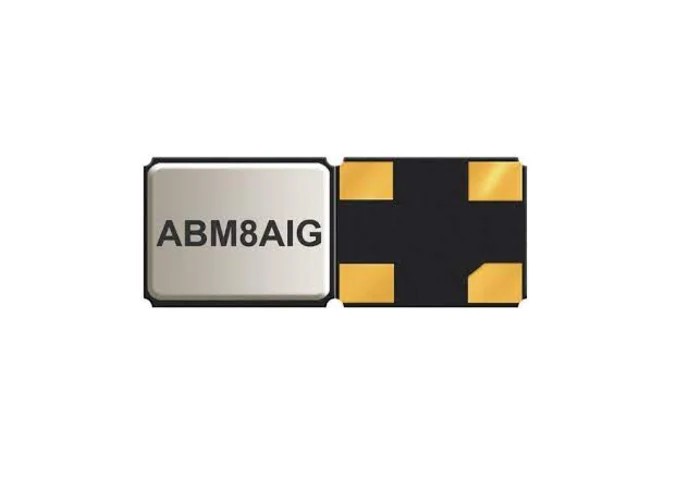

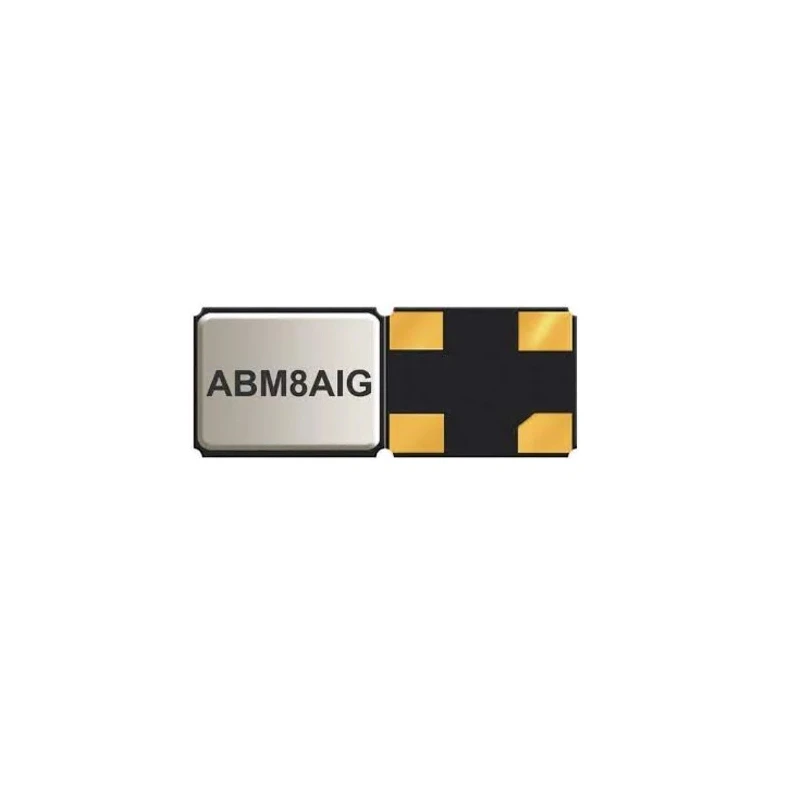

Abracon 20 MHz Crystal Oscillator ±50 ppm Load Capacitance 12pF Ceramic Package 4-Pin Surface ABM8AIG-20.000MHZ-12-2Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8AIG-20.000MHZ-12-2Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8AIG |
| Maximum Operating Temperature | 85°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 20MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Operates at a standard frequency of 20 MHz with ±50 ppm frequency tolerance and stability.
- Features a load capacitance of 12 pF suitable for stable oscillations.
- Packaged in a compact ceramic case measuring 3.2 mm length, 2.5 mm width, and 0.8 mm height.
- Designed for surface mounting with tape and reel packaging to facilitate automated PCB assembly.
- Has a series resistance of 50 Ω to ensure optimal oscillation performance.
- Meets automotive standard AEC-Q200, ensuring high reliability from -40°C to +125°C.
- Hermetically sealed for environmental protection and robust performance in harsh conditions.
- RoHS compliant and Lead-free, adhering to modern environmental standards.
Product Description
Abracon ABM8AIG-20.000MHZ-12-2Z-T3 is a 20 MHz Crystal Oscillator designed for automotive and industrial applications requiring high reliability and precision. Encased in a hermetically sealed ceramic package, it provides exceptional frequency stability with a ±50 ppm tolerance over operating temperatures ranging from -40°C to +85°C, and automotive-grade operation up to 125°C.
This device features a 4-pin surface mount design with a compact footprint (3.2 mm length x 2.5 mm width x 0.8 mm height), making it ideal for space-constrained PCB assemblies. The load capacitance is 12 pF and the series resistance is rated at 50 Ω for optimized oscillation performance.
The product complies with AEC-Q200 automotive standards and RoHS directives, ensuring it is suitable for critical use cases such as infotainment systems, GPS and navigation, ADAS (Advanced Driver-Assistance Systems), and LiDAR technologies in the automotive sector. Its hermetically sealed ceramic package protects against moisture and contaminants, maintaining consistent signal integrity through harsh environments.
Operates at a precise frequency of 20 MHz with ±50 ppm frequency tolerance and stability. Surface mount device with 4 pins and a compact ceramic package for reliable PCB integration. Automotive-grade AEC-Q200 compliant ensuring robustness for critical applications.
Hermetically sealed ceramic construction provides high environmental resistance. Lead-free and RoHS compliant for environmental safety. Rated for operating temperatures from -40°C to +85°C with automotive grade up to +125°C.
Ideal for use in automotive infotainment, GPS navigation, ADAS, and LiDAR systems. Packaged in tape and reel format for efficient high-volume assembly production.
This Crystal Oscillator is widely used in industrial and automotive electronic assemblies, providing precision timing and frequency control essential for communication, navigation, and safety systems. For more products like this, explore the Crystal Units category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 20 MHz.
It features a load capacitance of 12 pF, which is suitable for stable oscillations.
This unit has a length of 3.2 mm, a width of 2.5 mm, and a height of 0.8 mm.
The series resistance is rated at 50 Ω, ensuring optimal oscillation performance.
It operates within a temperature range of -40°C to +85°C, with automotive-grade operation up to 125°C.
Yes, it complies with the AEC-Q200 automotive standard, ensuring high reliability for automotive applications.
It is packaged in tape and reel format, facilitating efficient automated PCB assembly.
This model is designed for surface mounting, featuring a 4-pin configuration.
It is hermetically sealed to protect against moisture and contaminants, ensuring consistent signal integrity.
This crystal oscillator is RoHS compliant and lead-free, adhering to modern environmental standards.
It is widely used in automotive infotainment systems, GPS navigation, ADAS, and LiDAR technologies.
The country of origin for this model is India.
