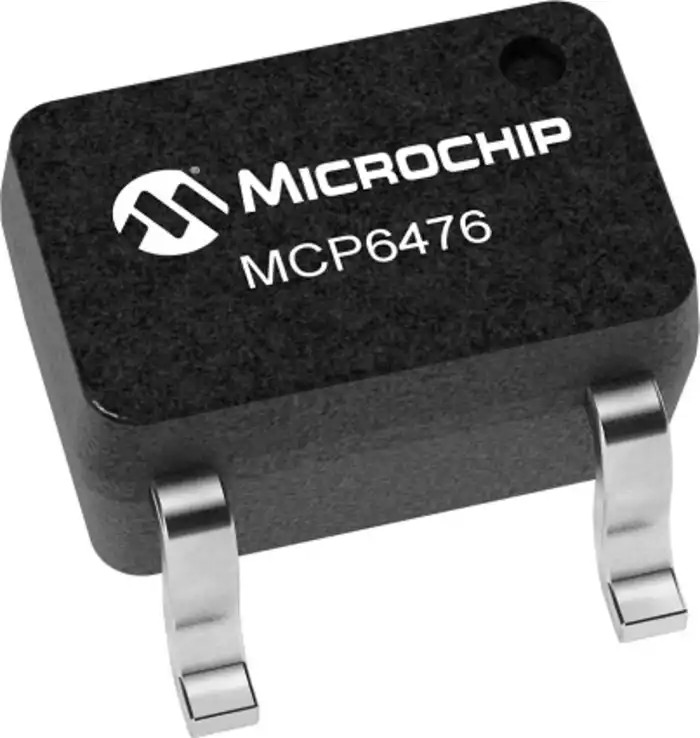

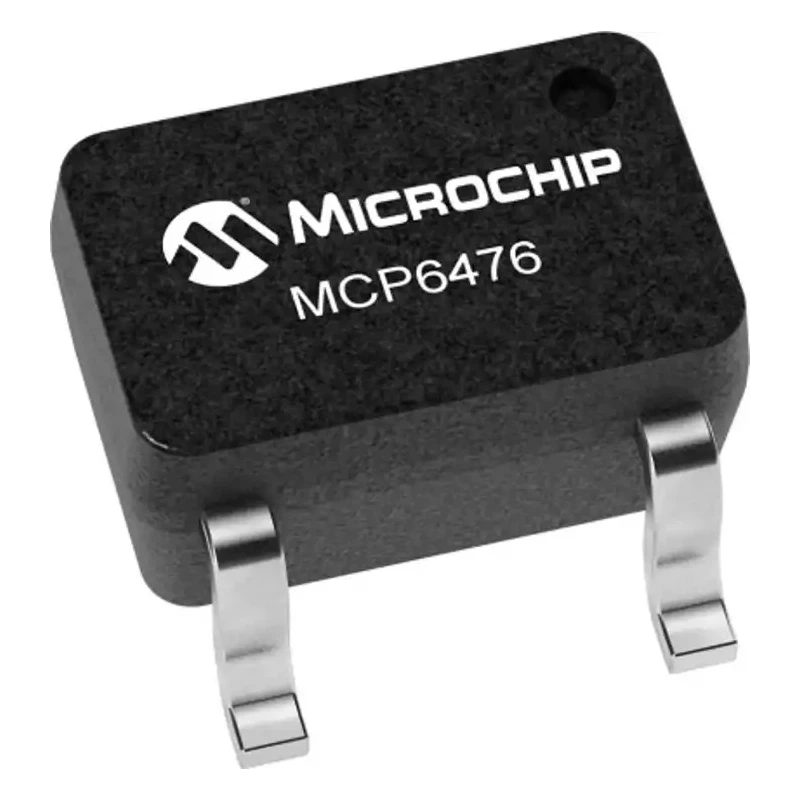

Microchip Operational Amplifier 3 MHz Gain Bandwidth, 5-Pin SC-70-5 Surface Mount, 5.5V MCP6476UT-E/LT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 2mm |
| Model | MCP6476UT-E/LT |
| Width | 2.1mm |
| Mount Type | Surface |
| Series | MCP6476 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-5 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 1.6 mV |
| Slew Rate | 3.2V/μs |
Key Features
- Operates with single supply voltage of 1.8V to 5.5V.
- Low quiescent current of 170 μA maximum per amplifier.
- Gain bandwidth product of 3 MHz typical for high-frequency operation.
- Low input offset voltage at ±1.6 mV maximum.
- Rail-to-rail input and output operation for enhanced dynamic range.
- Unity gain stable design suitable for buffer amplifier applications.
- Enhanced EMI protection minimizing electromagnetic interference.
- Output current capability up to 30 mA.
Product Description
Microchip MCP6476UT-E/LT is a precision operational amplifier featuring a 3 MHz gain bandwidth product and ultra-low power consumption, designed for modern portable and battery-operated electronics.
This 5-pin device uses a SC-70-5 surface mount package ideal for high-density PCB layouts. It operates on a wide supply voltage range from 1.8V up to 5.5V, supporting low voltage applications.
The operational amplifier exhibits low input offset voltage (±1.6 mV max) and rail-to-rail input/output operation, maximizing signal range and accuracy in demanding analog circuits.
Its EMI filtering capabilities reduce the effects of electromagnetic interference from power lines, radio stations, and mobile communication sources, making it suitable for EMI-sensitive environments.
Designed for industrial, automotive, and portable device applications, this amplifier delivers up to 30 mA output current and fast slew rate of 3.2 V/μs, ensuring responsive analog signal amplification.
Operates with 1.8V to 5.5V single supply voltage. Low quiescent current at 170 μA maximum per amplifier. 3 MHz typical gain bandwidth product. Input offset voltage of ±1.6 mV max. Rail-to-rail input and output capability.
Enhanced EMI protection for reduced signal interference. Output current up to 30 mA. Extended operating temperature range -40°C to 125°C. AEC-Q100 qualified for automotive applications.
This Microchip operational amplifier is well-suited for applications in industrial automation, instrumentation, portable consumer electronics, automotive electronics, and telecommunications equipment, where precision and reliability are critical.
Browse the Electronics & Electricals category at EnvMart for more high-quality semiconductor components and Operational Amplifiers.
