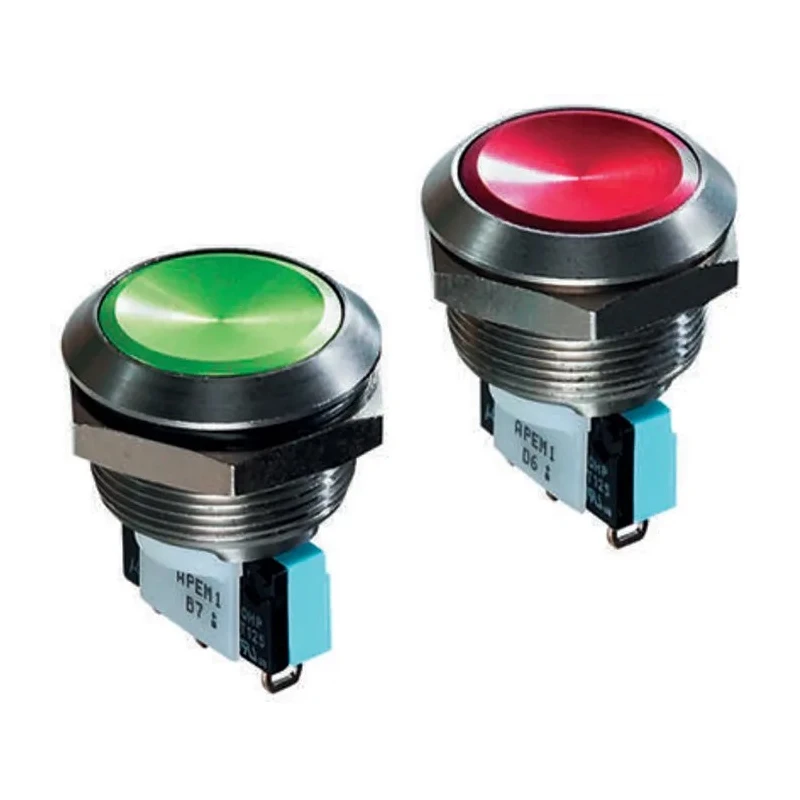

APEM AV Series Push Button Switch Momentary Panel Mount SPDT IP65 19.2 mm Cutout 48 V dc 250 V ac AV22LP402

APEM AV22LP402 is a high-quality push button switch designed for panel mounting with a 19.2 mm cutout. Featuring a momentary switch operation, it offers a Single Pole Double Throw (SPDT) contact configuration suitable for varied control applications. The switch is rated for 48 V dc and 250 V ac contact voltage, making it versatile for both AC and DC circuits.

The push button is ergonomically designed with a natural colored, round actuator providing ease of use and durability. With an IP65 ingress protection rating, the device is sealed against dust and water jets, ideal for demanding industrial environments.

Constructed with stainless steel bushing and robust materials, this switch supports panel thicknesses from 1 to 6 mm and is operational between temperatures of -20°C to 55°C. The solder terminal type ensures reliable electrical connections. The product fully complies with RoHS directives, endorsing environmentally safe manufacturing practices.

This push button switch is suited for applications in industrial automation, electrical control panels, machinery operation, and other commercial or manufacturing settings requiring durable and reliable momentary switches.

Durable push button designed for panel mounting with a 19.2 mm cutout. Momentary switch operation for temporary actuations. Single Pole Double Throw (SPDT) contact configuration. Rated for 48 V dc and 250 V ac contact voltage.

IP65 rated for dust-tight and water-resistant applications. Natural actuator color with round style button. Operates reliably between -20°C and 55°C. Solder type terminal for secure electrical connections. Complies with RoHS standards.

Constructed in France ensuring quality and adherence to manufacturing standards.

Select the APEM AV22LP402 push button for high-performance, safety, and durability in your electrical and automation panel applications. Browse more Push Button Switches from renowned brands on EnvMart.
